Hanwha QNO-C8083R Q-Series 5MP IR Bullet Camera 3-10mm Motorized Varifocal Lens, White

SKU: QNO-C8083R Hanwha Vision

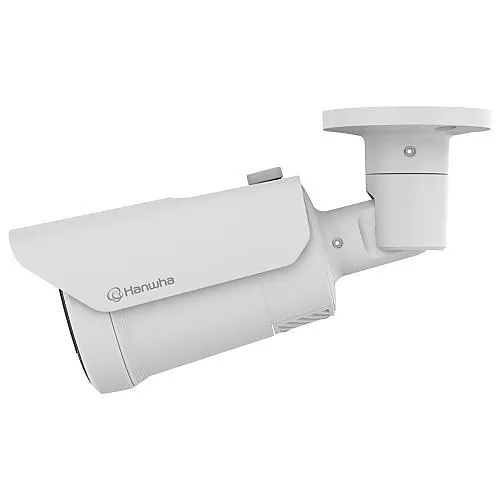

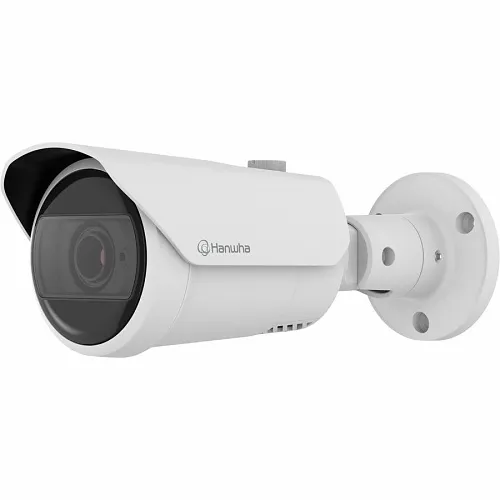

Image of SQ-QNOC8083R
Product images for Hanwha QNO-C8083R Q-Series 5MP IR Bullet Camera 3-10mm Motorized Varifocal Lens, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver clear, actionable surveillance with 5MP resolution and 120dB WDR for reliable identification in challenging lighting
  • Remote framing and quick commissioning via the 3.2–10.2mm motorized varifocal lens for flexible coverage
  • Tough, all-weather protection (IP66) and vandal resistance (IK10) for dependable outdoor operation
  • Night-ready monitoring with IR illumination up to 98 ft and low-light sensitivity (0.015 lux)
  • Simplified installation and continuous power with PoE (max 12W) plus local recording on Micro SD up to 256GB
  • Built-in edge analytics (people/vehicle counting, heatmap, queue management) to reduce false alarms and support operational insights

Quick Specifications

Product Model
QNO-C8083R
Brand Name
Hanwha Vision
Product Name
5MP AI IR Bullet Camera with Varifocal lens
Product Type
Bullet Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For demanding outdoor security and monitoring, the Hanwha Vision QNO-C8083R 5MP IR Bullet Camera delivers high-resolution, dependable surveillance that helps you detect and act faster. This Q-Series bullet camera pairs a 5MP sensor with 120dB WDR to maintain clear, usable images across bright highlights and deep shadows, while the motorized 3.2–10.2mm varifocal lens lets integrators remotely adjust field of view for precise coverage without re-locating hardware. Capture smooth video at up to 30 fps using efficient H.265 compression to lower bandwidth and storage costs, and rely on PoE power for simplified networked installation. Built for outdoor deployments, the QNO-C8083R features IP66 weather sealing and IK10 impact resistance, plus infrared illumination effective to about 98 ft for 24/7 monitoring. Onboard microSD storage and edge analytics — including people/vehicle counting, heatmaps and queue management — support resilient recording and actionable operational intelligence. Ideal for perimeter security, parking lots, retail and campus monitoring, the Hanwha Vision QNO-C8083R is a practical upgrade for professional surveillance systems. Contact your reseller to specify and deploy this camera in your next security project.

Features

  • Deliver clear, actionable surveillance with 5MP resolution and 120dB WDR for reliable identification in challenging lighting
  • Remote framing and quick commissioning via the 3.2–10.2mm motorized varifocal lens for flexible coverage
  • Tough, all-weather protection (IP66) and vandal resistance (IK10) for dependable outdoor operation
  • Night-ready monitoring with IR illumination up to 98 ft and low-light sensitivity (0.015 lux)
  • Simplified installation and continuous power with PoE (max 12W) plus local recording on Micro SD up to 256GB
  • Built-in edge analytics (people/vehicle counting, heatmap, queue management) to reduce false alarms and support operational insights
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5MP AI IR Bullet Camera with Varifocal lens
Product Type Bullet Camera
Product Model QNO-C8083R
Product Series Q
Manufacturer Part Number QNO-C8083R
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 3.2x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.2mm
Connectivity Technology Wired
Field of View (Vertical) 69°
Field of View (Horizontal) 95°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
TAA Compliant No
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 0-95% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.015 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.2-10.2mm
Lens Included Yes
Minimum Aperture f/3.1
Maximum Focal Length 10.2mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 2.05lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Bullet
Product Information
Diameter 3.68"
Mount Type Corner Mount, Pole Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features ,, 3.2 - 10.2mm (H - 95°-29°/V - 69°-21°) motorized varifocal lens, 30fps at all resolutions (H.265/H.264), 5MP resolution, Day and Night (ICR), WDR (120dB), IR viewable length 30m (98ft), Micro SD (256GB) memory slot, PoE/12V DC, People Counting, Heatmap, Queue Management and Vehicle Counting, Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
Country of Origin VN
Impact Protection Rating IK10
