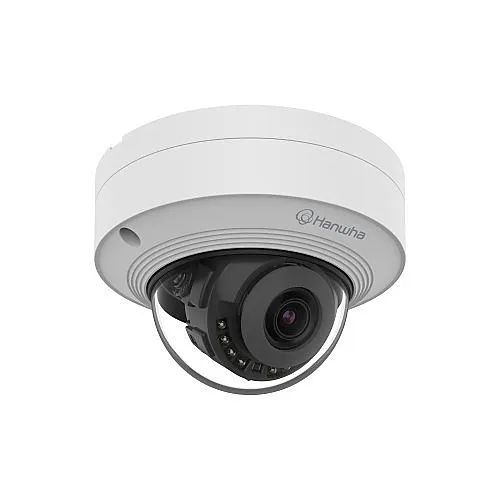

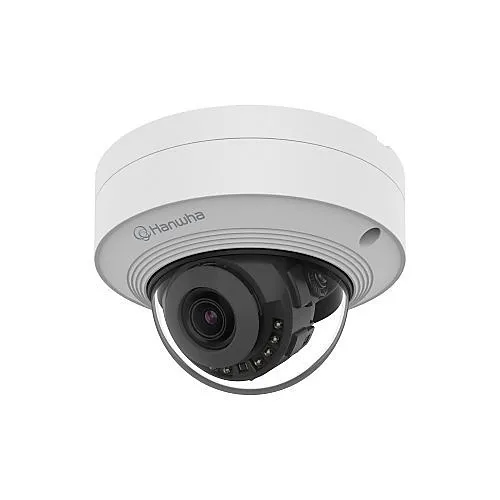

Hanwha QNV-C8011R Q-Series 5MP AI IR Mini Vandal Dome Camera 3.0mm Fixed Lens, White
Image of 3
Key Features
- Accurate AI detection reduces false alarms by distinguishing people and vehicles from shadows, foliage and animals
- Clear evidence capture with 5MP resolution and wide 100° horizontal field of view for effective area coverage
- Reliable day/night monitoring with 20m IR range and 0.003 lux low-light sensitivity for 24/7 surveillance
- Vandal- and weather-resistant design (IK10, IP66) for durable outdoor installation and reduced maintenance costs
- Built-in analytics (people counting, heatmap, queue and vehicle counting) and PoE support streamline operations and simplify deployment
Quick Specifications
- Product Model
- QNV-C8011R
- Brand Name
- Hanwha Vision
- Product Name
- 5MP AI IR Mini Vandal Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha QNV-C8011R Q-Series 5MP AI IR Mini Vandal Dome Camera 3.0mm Fixed Lens, White
$335.99
7 items selected
Total: $2,805.97
Product Information Tabs
Overview
Protect critical assets and improve operator efficiency with the Hanwha Vision QNV-C8011R Q-Series 5MP AI IR Mini Vandal Dome Camera. This compact dome camera delivers actionable intelligence for security and surveillance by using on-board AI to reliably detect and classify people and vehicles—reducing false alarms and focusing attention where it matters.
Designed for demanding environments, the QNV-C8011R pairs 5MP resolution with a 3.0mm fixed lens (100° H / 73° V) and 20m IR illumination to capture clear video day or night. Wide Dynamic Range (120 dB) and low-light sensitivity ensure usable detail in challenging lighting, while IK10 impact resistance and IP66 weatherproofing provide long-term durability outdoors. Built-in analytics such as people counting, heatmaps and queue management, plus PoE and MicroSD recording, help streamline installation and support local or networked monitoring workflows.
Ideal for retail, parking, campus and perimeter applications, the Hanwha Vision dome camera is a turnkey choice for businesses seeking reliable monitoring and actionable video intelligence. Contact us for pricing or to specify this camera for your next security deployment.
Features
- Accurate AI detection reduces false alarms by distinguishing people and vehicles from shadows, foliage and animals
- Clear evidence capture with 5MP resolution and wide 100° horizontal field of view for effective area coverage
- Reliable day/night monitoring with 20m IR range and 0.003 lux low-light sensitivity for 24/7 surveillance
- Vandal- and weather-resistant design (IK10, IP66) for durable outdoor installation and reduced maintenance costs
- Built-in analytics (people counting, heatmap, queue and vehicle counting) and PoE support streamline operations and simplify deployment
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5MP AI IR Mini Vandal Dome |
| Product Type | Dome Camera |
| Product Model | QNV-C8011R |
| Product Series | Q |
| Manufacturer Part Number | QNV-C8011R |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Lens Mount Type | M12 |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 73° |
| Field of View (Horizontal) | 100° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.003 lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3mm |
| Lens Included | Yes |
| Maximum Focal Length | 3mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.15lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 4.33" |
| Mount Type | Backbox Mount, Conduit Mount, Gang Box Mount, Pendant Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | ,, 3.0mm fixed lens (H - 100°/V - 73°), 30fps at all resolutions (H.265/H.264), 5MP resolution, Day and Night (ICR), WDR (120dB), IR viewable length 20m (65ft), Micro SD (256GB) memory slot, PoE/12V DC, People Counting, Heatmap, Queue Management and Vehicle Counting, Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
