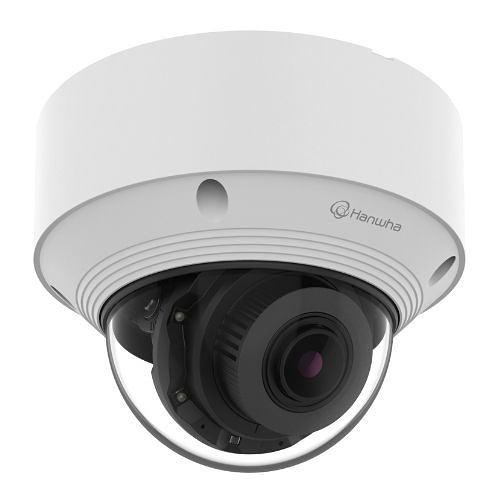

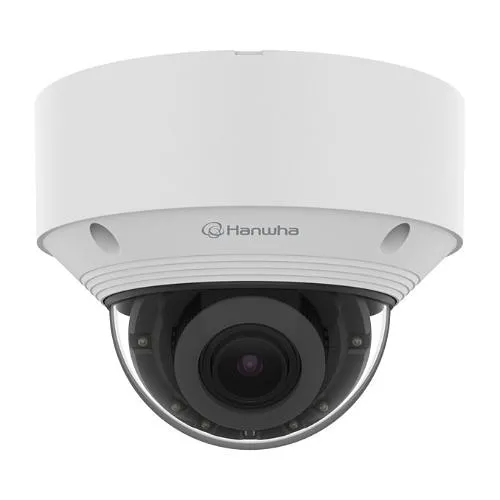

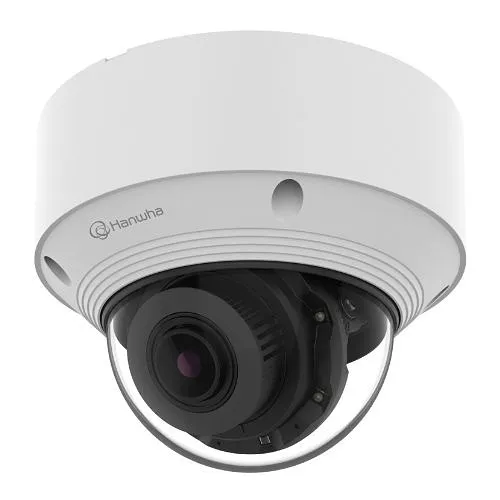

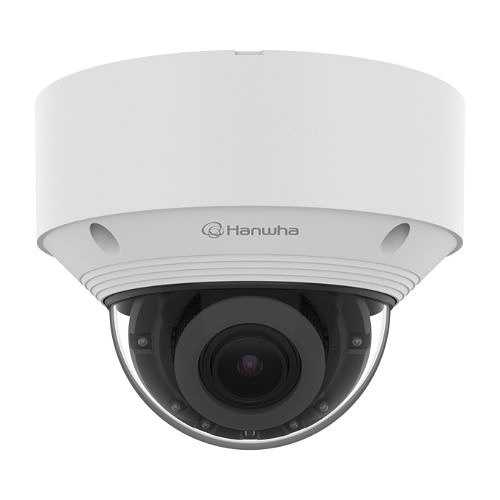

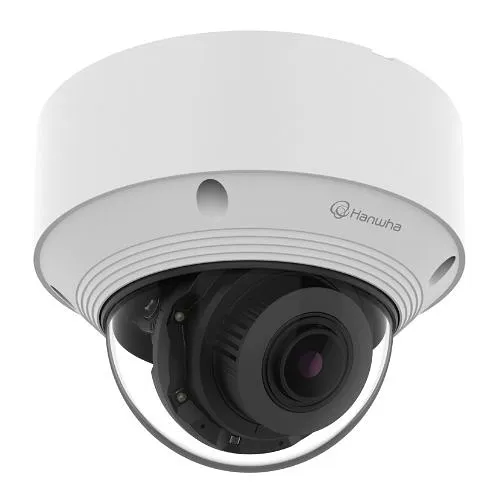

Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White
Image of 5
Key Features
- Capture high-detail evidence with 5MP resolution for clearer identification and fewer blind spots in critical surveillance zones.
- Motorized 3.2–10.2mm varifocal lens enables remote framing and zoom adjustments, cutting installation time and onsite reconfigurations.
- Reliable 24/7 monitoring with IR night vision to 98 ft and 120dB WDR for balanced images in challenging light conditions.
- Rugged outdoor protection (IP66, IK10) ensures continuous operation in vandal-prone or harsh environments, reducing maintenance costs.
- Built-in analytics (People Counting, Heatmap, Queue & Vehicle Counting) and H.265 compression improve situational awareness while minimizing bandwidth and storage needs.
- Flexible deployment with PoE support and onboard Micro SD storage (up to 256GB) for simple, cost-effective network integration.
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 5 MP IR Vandal Dome Camera with Varifocal lens
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White
$483.48
7 items selected
Total: $2,953.46
Product Information Tabs
Overview
Designed for demanding surveillance and security deployments, the Hanwha Vision QNV-C8083R dome camera delivers high-resolution monitoring and dependable operation in outdoor and vandal-prone locations. This Q-Series 5MP IR vandal dome camera captures crisp 2592 x 1944 images for reliable identification, while the 3.2–10.2mm motorized varifocal lens lets integrators fine-tune coverage remotely—saving time and reducing rework. Advanced low-light performance with IR illumination up to 30 m (98 ft) plus 120dB WDR preserves usable detail in backlit or high-contrast scenes.
Engineered for professional security systems, the camera supports H.265/H.264/MJPEG codecs, PoE power for simplified wiring, and onboard Micro SD storage up to 256GB. Rugged IP66 and IK10 ratings mean the unit withstands weather and impact, making it ideal for parking lots, building perimeters, retail exteriors, and campus security. Built-in analytics such as people and vehicle counting deliver actionable insights to optimize operations.
Choose the Hanwha Vision QNV-C8083R for a scalable, high-performance surveillance solution—add to your system or contact sales for deployment recommendations.
Features
- Capture high-detail evidence with 5MP resolution for clearer identification and fewer blind spots in critical surveillance zones.
- Motorized 3.2–10.2mm varifocal lens enables remote framing and zoom adjustments, cutting installation time and onsite reconfigurations.
- Reliable 24/7 monitoring with IR night vision to 98 ft and 120dB WDR for balanced images in challenging light conditions.
- Rugged outdoor protection (IP66, IK10) ensures continuous operation in vandal-prone or harsh environments, reducing maintenance costs.
- Built-in analytics (People Counting, Heatmap, Queue & Vehicle Counting) and H.265 compression improve situational awareness while minimizing bandwidth and storage needs.
- Flexible deployment with PoE support and onboard Micro SD storage (up to 256GB) for simple, cost-effective network integration.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 5 MP IR Vandal Dome Camera with Varifocal lens |
| Product Type | Dome Camera |
| Product Model | QNV-C8083R |
| Product Series | Q |
| Manufacturer Part Number | QNV-C8083R |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.2x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 69° |
| Field of View (Horizontal) | 95° |
| Effective Camera Resolution | 5MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Video Resolution | 2592 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -22°F |
| Exposure | |
| Minimum Illumination | 0.007 lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.2-10.2mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.1 |
| Maximum Focal Length | 10.2mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.93lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 5.51" |

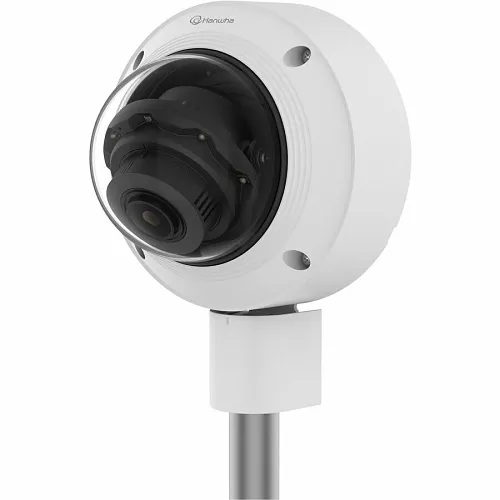

| Mount Type | Backbox Mount, Conduit Mount, Gang Box Mount, Pendant Mount |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Miscellaneous | |
| Features | 3.2 - 10.2mm (H - 95°-29°/V - 69°-21°) motorized varifocal lens, 30fps at all resolutions (H.265/H.264), 5MP resolution, Day and Night (ICR), WDR (120dB), IR viewable length 30m (98ft), Micro SD (256GB) memory slot, People Counting, Heatmap, Queue Management and Vehicle Counting, PoE/12V DC, Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine) |
| Indoor/Outdoor | Outdoor |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
