Hanwha QNV-C9083R Q-Series 4K AI IR Vandal Dome Camera 3.2-10.2mm Motorizes Varifocal Lens, White

SKU: QNV-C9083R Hanwha Vision

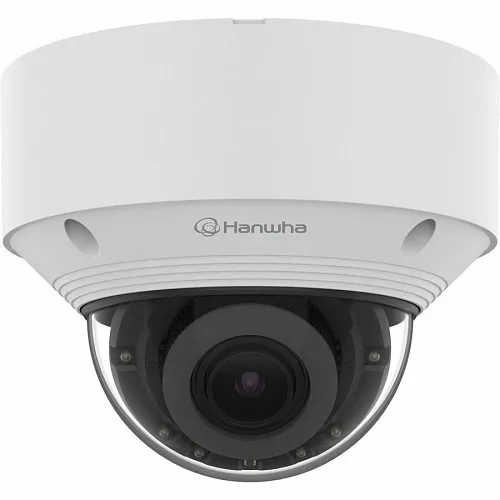

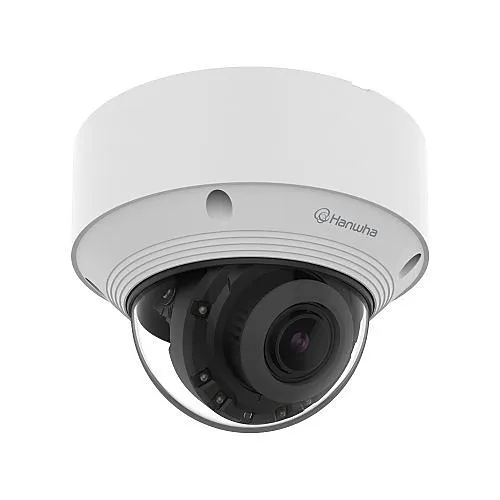

Image of SQ-QNVC9083R
Product images for Hanwha QNV-C9083R Q-Series 4K AI IR Vandal Dome Camera 3.2-10.2mm Motorizes Varifocal Lens, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver crystal-clear 4K (8MP) video for confident identification and evidence-grade surveillance
  • Motorized 3.2–10.2mm varifocal lens lets you adjust coverage remotely, reducing installation time and camera count
  • IR night vision to ~98 ft and a 120dB WDR ensure reliable monitoring in low light and high-contrast scenes
  • Rugged IP66 and IK10-rated housing stands up to weather and vandalism for dependable outdoor protection
  • Built-in AI analytics (people/vehicle counting, heatmap, queue management) turn video into actionable security and operational insights
  • PoE power and onboard microSD support simplify network deployment and provide local backup for continuous recording

Quick Specifications

Product Model
QNV-C9083R
Brand Name
Hanwha Vision
Product Name
4K AI IR Vandal Dome with Varifocal lens
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

For facilities that demand dependable, high-resolution monitoring, the Hanwha Vision QNV-C9083R Q-Series 4K AI IR Vandal Dome Camera delivers precise, day-and-night surveillance so you can protect people and assets with confidence. This vandal-resistant dome captures 8MP (3840 x 2160) video at up to 30 fps and pairs a motorized 3.2–10.2mm varifocal lens with 120dB WDR to handle challenging lighting and wide scenes without losing critical detail. Infrared illumination extends night visibility to approximately 98 ft, supporting 24/7 security and perimeter monitoring. Built-in AI analytics—people and vehicle counting, heatmaps and queue management—help operations teams extract actionable data for loss prevention and throughput analysis. Engineered for real-world deployments, the camera offers PoE for simplified network installation, a microSD slot for edge recording, and IP66/IK10 protection for outdoor durability. Ideal for retail, campus, and industrial sites, the Hanwha Vision QNV-C9083R integrates into VMS and networked security systems to elevate situational awareness. Upgrade your surveillance infrastructure with this resilient, analytics-enabled dome camera—contact sales or add to cart to secure your site.

Features

  • Deliver crystal-clear 4K (8MP) video for confident identification and evidence-grade surveillance
  • Motorized 3.2–10.2mm varifocal lens lets you adjust coverage remotely, reducing installation time and camera count
  • IR night vision to ~98 ft and a 120dB WDR ensure reliable monitoring in low light and high-contrast scenes
  • Rugged IP66 and IK10-rated housing stands up to weather and vandalism for dependable outdoor protection
  • Built-in AI analytics (people/vehicle counting, heatmap, queue management) turn video into actionable security and operational insights
  • PoE power and onboard microSD support simplify network deployment and provide local backup for continuous recording
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4K AI IR Vandal Dome with Varifocal lens
Product Type Dome Camera
Product Model QNV-C9083R
Product Series Q
Manufacturer Part Number QNV-C9083R
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 3.2x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.2mm
Connectivity Technology Wired
Field of View (Vertical) 55°
Field of View (Horizontal) 104°
Effective Camera Resolution 8MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0-95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.006 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.2-10.2mm
Lens Included Yes
Minimum Aperture f/3.1
Maximum Focal Length 10.2mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.93lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 5.51"
Mount Type Pendant Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features ,, 3.2 - 10.2mm (H - 104°-31°/V - 55°-17°) motorized varifocal lens, 30fps at all resolutions (H.265/H.264), 4K resolution, Day and Night (ICR), WDR (120dB), IR viewable length 30m (98ft), Micro SD (256GB) memory slot, PoE/12V DC, People Counting, Heatmap, Queue Management and Vehicle Counting, Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
Impact Protection Rating IK10
