Electro-Voice R300-HD-C Electro-Voice R300-HD Handheld System with PL22 Dynamic Microphone
Image of 4
Key Features
- Rugged, all-metal handheld transmitter and receiver protect your investment for daily pro use while staying comfortable in-hand

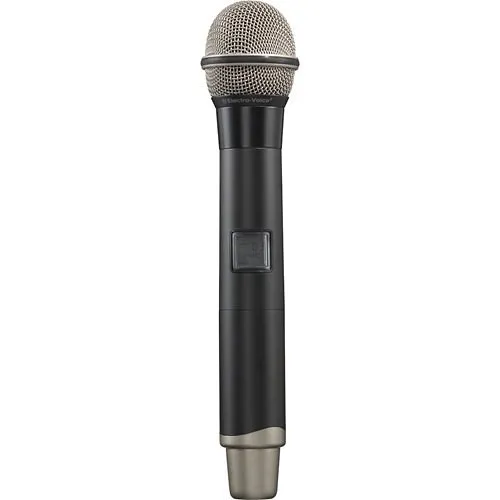

- PL22 cardioid dynamic microphone delivers clear vocals and rejects ambient noise to reduce feedback in live events and security monitoring
- ClearScan and EZsync enable fast, error-free setup so teams deploy wireless audio quickly on-site

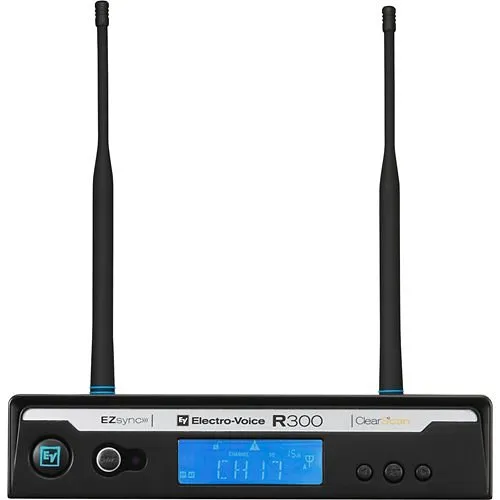

- Dual-antenna diversity and detachable TNC antennas provide stable UHF reception (516–532 MHz) and easy integration with antenna distribution systems
- Up to 14-hour battery life (2×AA) and 32 preset channels support long shifts and multiple simultaneous users without downtime

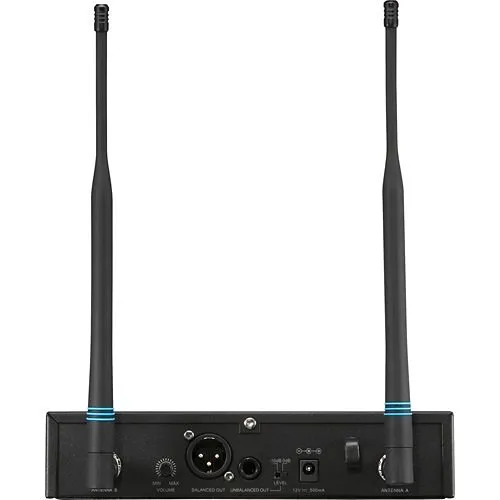

- Rack-mountable metal receiver with XLR output gives professional connectivity for AV, surveillance, and public address systems
Quick Specifications
- Product Model
- R300-HD
- Brand Name
- Electro-Voice
- Product Name
- R300-HD Handheld System - PL22 Dynamic Microphone
- Product Type
- Wireless Microphone System
Explore the details
Product information
R300-HD-C
Overview
Built for dependable performance in events, installations and security operations, the Electro-Voice R300-HD handheld wireless microphone system gives professional teams clear, consistent audio where it matters most. The HT-300 metal handheld transmitter paired with the PL22 cardioid dynamic microphone provides focused vocal pickup and feedback control, ideal for emcees, mobile security posts, classrooms and surveillance monitoring. With a UHF operating range of 516–532 MHz and dual-antenna diversity the receiver minimizes dropouts, while the 80 Hz–18 kHz audio response preserves natural vocal detail for recordings or live feeds. Setup is fast — ClearScan finds the cleanest channel and EZsync transfers settings via infrared — and the system supports 32 preset channels for multi-mic environments. Long shifts are covered by 14-hour runtime from two AA batteries, and the metal receiver chassis offers XLR outputs and rack-mount capability for integration into AV, security or networked monitoring systems. Choose the R300-HD when reliability, ease of use and professional audio are non-negotiable. Contact sales or add to cart to equip your next event or security deployment.
Features
- Rugged, all-metal handheld transmitter and receiver protect your investment for daily pro use while staying comfortable in-hand
- PL22 cardioid dynamic microphone delivers clear vocals and rejects ambient noise to reduce feedback in live events and security monitoring
- ClearScan and EZsync enable fast, error-free setup so teams deploy wireless audio quickly on-site
- Dual-antenna diversity and detachable TNC antennas provide stable UHF reception (516–532 MHz) and easy integration with antenna distribution systems
- Up to 14-hour battery life (2×AA) and 32 preset channels support long shifts and multiple simultaneous users without downtime
- Rack-mountable metal receiver with XLR output gives professional connectivity for AV, surveillance, and public address systems
| General Information | |
|---|---|
| Brand Name | Electro-Voice |
| Manufacturer | The Bosch Group |
| Product Name | R300-HD Handheld System - PL22 Dynamic Microphone |
| Product Type | Wireless Microphone System |
| Product Model | R300-HD |
| Manufacturer Part Number | R300-HD-C |
| Technical Information | |
| Material | Metal |
| Audio | |
| Maximum Frequency Response | 18 kHz |
| Minimum Frequency Response | 80Hz |
| Battery Information | |
| Battery Run Time | 14 Hour |
| Battery Chemistry | Alkaline |
| Battery Size Supported | AA |
| Number of Batteries Supported | 2 |
| Certifications | |
| TAA Compliant | No |
| Interfaces/Ports | |
| XLR | Yes |
| Microphone | |
| Microphone Technology | Dynamic |
| Network & Communication | |
| Maximum Operating Frequency | 532MHz |
| Minimum Operating Frequency | 516MHz |
| Physical Characteristics | |
| Depth | 8.3" |
| Width | 8.1" |
| Height | 1.7" |
| Weight | 4.30oz |
| Miscellaneous | |
| Country of Origin | CN |
