Altronix R615DC616UL CCTV Power Supply, 16 Fused Outputs, 6-15VDC at 6A, 115VAC, 2U
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

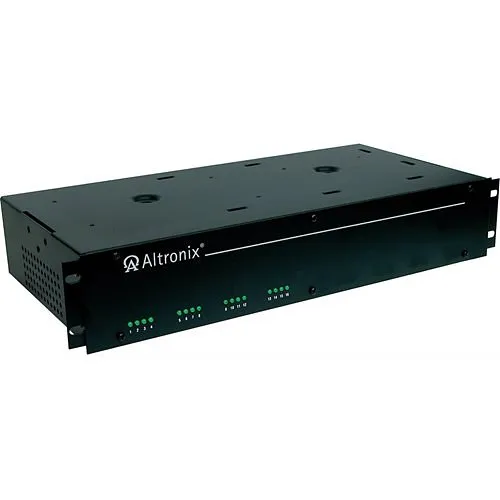

Image of 2
Key Features
- Centralized, rack-mount power distribution for up to 16 cameras, reducing installation complexity and keeping surveillance systems organized
- Individually fused/Class 2 PTC protected outputs to isolate faults and minimize downtime for critical security equipment
- Adjustable 6–15VDC outputs with up to 6A capacity to support a wide range of CCTV cameras, heaters and video accessories
- 2U rack-mount design with removable terminal blocks and locking screw flanges for fast serviceability and secure cable management
- UL/cUL listed, NDAA compliant and RoHS certified for code-compliant, long-term surveillance deployments
Quick Specifications
- Product Model
- R615DC616UL
- Sector
- Video Surveillance
- Brand Name
- Altronix
- Product Line
- Rack DC CCTV
Frequently Bought Together
Altronix R615DC616UL CCTV Power Supply, 16 Fused Outputs, 6-15VDC at 6A, 115VAC, 2U
$403.38
2 items selected
Total: $410.47
Explore the details
Product information
R615DC616UL
Overview
Keep critical surveillance equipment powered and protected with the Altronix R615DC616UL power supply — a rack-mount solution engineered for security professionals. This Altronix power supply provides 16 individually protected outputs, giving you centralized control and fault isolation for CCTV cameras, heaters and video accessories. With adjustable 6–15VDC outputs and a total capacity designed around a 6A supply, the unit supports diverse camera types and provides stable voltage for reliable monitoring. The R615DC616UL accepts 115VAC input and features removable terminal blocks, an illuminated master power disconnect, and a compact 2U rack profile to simplify installation and maintenance. UL/cUL listing, NDAA compliance and RoHS certification ensure the product meets regulatory and environmental standards for enterprise security projects. Ideal for commercial, municipal or multi-site surveillance systems, this unit minimizes downtime while streamlining power management for video surveillance and monitoring networks. Upgrade your security rack with a trusted, code-compliant power backbone — order the Altronix R615DC616UL today or contact us to integrate it into your surveillance deployment.
Features
- Centralized, rack-mount power distribution for up to 16 cameras, reducing installation complexity and keeping surveillance systems organized
- Individually fused/Class 2 PTC protected outputs to isolate faults and minimize downtime for critical security equipment
- Adjustable 6–15VDC outputs with up to 6A capacity to support a wide range of CCTV cameras, heaters and video accessories
- 2U rack-mount design with removable terminal blocks and locking screw flanges for fast serviceability and secure cable management
- UL/cUL listed, NDAA compliant and RoHS certified for code-compliant, long-term surveillance deployments
| General Information | |
|---|---|
| Sector | Video Surveillance |
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Product Line | Rack DC CCTV |
| Product Name | R615DC616UL Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Product Model | R615DC616UL |
| Product Series | R615DCUL |
| Manufacturer Part Number | R615DC616UL |
| Technical Information | |
| Output Voltage | 6-15V DC |
| Certifications | |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Storage Temperature (T-T) | -4-158°F |
| Operating Temperature (T-T) | 32-120°F |
| Others | |
| Model Number Replaces | R1224DC624, R615DC616 |
| Physical Characteristics | |
| Depth | 8.5" |
| Width | 19.1" |
| Height | 3.3" |
| Weight | 15.60lb |
| Rack Width | 19" |
| Power Description | |
| Input Voltage | 120V AC |
| Output Current | 6A |
| Product Information | |
| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Compatibility | CCTV CamerasHeatersVideo Accessories |
| Country of Origin | US |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- R615DC616UL
- Manufacturer part:
- R615DC616UL
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
Read return eligibility and exclusionsAltronix R615DC616UL CCTV Power Supply, 16 Fused Outputs, 6-15VDC at 6A, 115VAC, 2U
R615DC616UL
