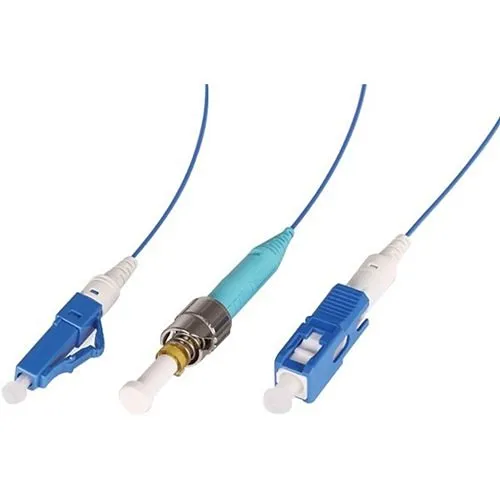

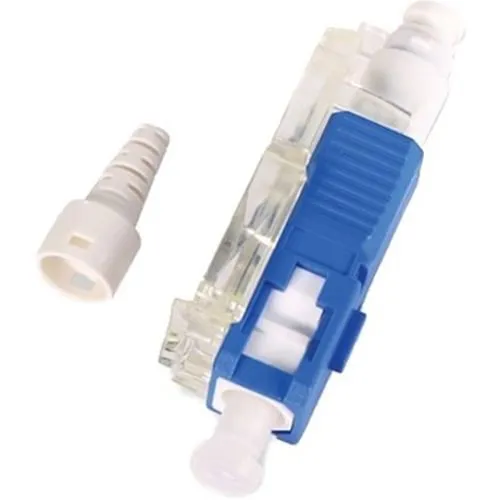

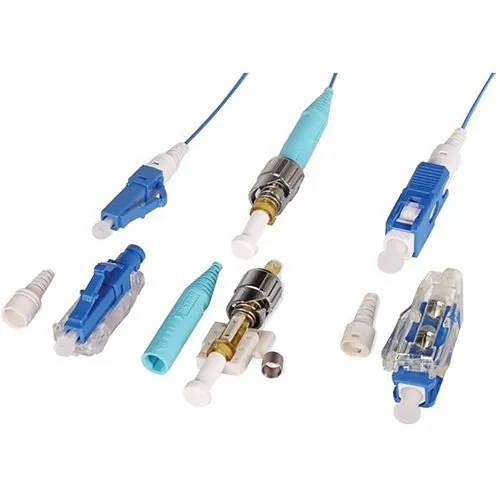

OCC RFC-SC6 SC Xpress Ultra Series Fiber Connectors, Pre-Polished, SC, 62.5, 250/900, Blue/White
Key Features
- Install in under 2 minutes with pre-polished, pre-assembled design — no epoxy or hand polishing required
- Epoxy-free mechanical splice with index-matching gel delivers reliable, low-loss connections for CCTV, security and network monitoring
- Compatible SC/UPC connector for 62.5µm multimode fiber (250/900 buffer) — fast field termination for surveillance installs
- UL94-V0 finished connector and RoHS compliance for safe, code-friendly deployments
- 25-year limited warranty and TIA/EIA 568-C.3 compliance for long-term performance and standards adherence
Quick Specifications
- Product Model
- RFC-SC6
- Brand Name
- OCC
- Product Line
- Xpress Ultra
- Product Name
- Fiber Conn, Pre-Polished, SC, 62.5, 250/900
Explore the details
Product information
RFC-SC6
Overview
Speed up fiber deployments for security, surveillance and enterprise monitoring with the OCC Xpress Ultra™ RFC-SC6 pre-polished SC fiber connector. This OCC fiber connector eliminates epoxy curing and hand polishing by using a pre-assembled mechanical splice with index-matching gel, enabling reliable, low-loss terminations in under two minutes. Designed for 62.5µm multimode fiber with 250/900µm buffered jackets and SC/UPC compatibility, the RFC-SC6 is ideal for CCTV, access control, and networking backbones where rapid, repeatable installs reduce labor and downtime. Finished connectors meet UL94-V0 flammability and RoHS standards, and the product conforms to TIA/EIA 568-C.3 industry guidelines — backed by a 25-year limited warranty for peace of mind. Sold in convenient packs, the Xpress Ultra streamlines field work for integrators and IT teams, delivering consistent optical performance without special tools or adhesives. Add the OCC RFC-SC6 to your next security or network project to cut install time and improve uptime — order now for faster deployments and reliable connections.
Features
- Install in under 2 minutes with pre-polished, pre-assembled design — no epoxy or hand polishing required
- Epoxy-free mechanical splice with index-matching gel delivers reliable, low-loss connections for CCTV, security and network monitoring
- Compatible SC/UPC connector for 62.5µm multimode fiber (250/900 buffer) — fast field termination for surveillance installs
- UL94-V0 finished connector and RoHS compliance for safe, code-friendly deployments
- 25-year limited warranty and TIA/EIA 568-C.3 compliance for long-term performance and standards adherence
| General Information | |
|---|---|
| Brand Name | OCC |
| Manufacturer | Optical Cable Corporation |
| Product Line | Xpress Ultra |
| Product Name | Fiber Conn, Pre-Polished, SC, 62.5, 250/900 |
| Product Type | Network Connector |
| Package Length | 1.5 |
| Packaged Quantity | 12 |
| Manufacturer Part Number | RFC-SC6 |
| Interfaces/Ports | |
| Connector Type | SC/UPC |
| Physical Characteristics | |
| Color | Blue, White |
| Warranty | |
| Limited Warranty | 25-Year |
| Miscellaneous | |
| Features | Pre-polished |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
