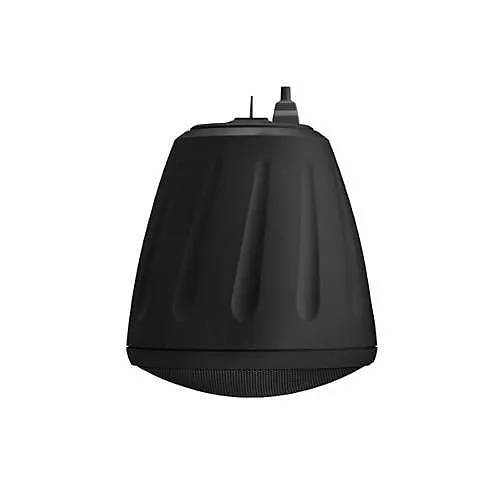

SoundTube RS500i 5.25" Hanging Speaker with BroadBeam Tweeter, Black

SKU: RS500I-BK SoundTube
Image of 9W-RS500IBK
Product images for SoundTube RS500i 5.25" Hanging Speaker with BroadBeam Tweeter, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Delivers consistent, room-filling audio across wide areas with SoundTube’s BroadBeam tweeter—ideal for paging, background music and surveillance monitoring
  • Punchy low-end and 75W RMS power ensure clear voice reproduction and reliable paging even in challenging commercial spaces

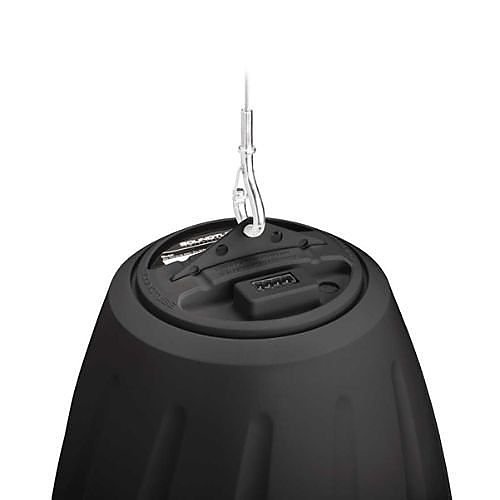

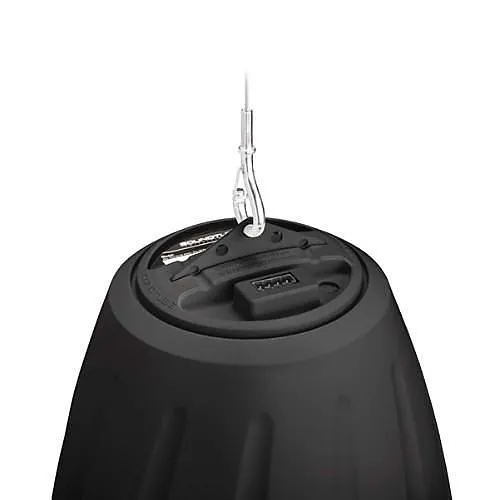

  • Quick, secure installation with UL-listed hanging hardware and SpeedClamp self-locking wire grip reduces labor time and downtime
  • Flexible power options (25 / 70.7 / 100V taps plus transformer bypass) simplify integration into distributed audio and security systems
  • Durable, low-profile enclosure and ported design provide aesthetic ceiling mount installation for indoor/outdoor commercial environments and high-traffic venues

Quick Specifications

Brand Name
SoundTube
Manufacturer
SoundTube
Product Name
RS500I Speaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

For commercial audio, paging and security applications that require dependable coverage, the SoundTube RS500i 5.25in hanging speaker delivers even, intelligible sound where it matters most. This SoundTube pro speaker uses a BroadBeam waveguide tweeter and a ported, ZeroReflection enclosure to provide consistent 105° coverage and clean voicing across the listening area—helpful for surveillance audio, monitoring stations and public-address systems. With 75W RMS capability and extended bass down to 61Hz, the RS500i produces clear speech and musical content without strain, improving intelligibility for paging and emergency communications. Installers benefit from UL-listed hanging hardware, an integrated SpeedClamp wire grip and a six-position tap for 25/70.7/100V systems plus a transformer bypass to match distributed audio or low-impedance setups. The low-profile black enclosure blends into commercial ceilings while offering indoor/outdoor rated durability for lobbies, retail stores, transit hubs and campus security projects. Backed by a 5-year limited warranty, the RS500i is a practical choice for integrators specifying reliable audio for security, surveillance and monitoring applications—order now to streamline installs and upgrade your facility’s audio performance.

Features

  • Delivers consistent, room-filling audio across wide areas with SoundTube’s BroadBeam tweeter—ideal for paging, background music and surveillance monitoring
  • Punchy low-end and 75W RMS power ensure clear voice reproduction and reliable paging even in challenging commercial spaces
  • Quick, secure installation with UL-listed hanging hardware and SpeedClamp self-locking wire grip reduces labor time and downtime
  • Flexible power options (25 / 70.7 / 100V taps plus transformer bypass) simplify integration into distributed audio and security systems
  • Durable, low-profile enclosure and ported design provide aesthetic ceiling mount installation for indoor/outdoor commercial environments and high-traffic venues
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name RS500I Speaker
Product Type Speaker
Product Model RS500I
Product Series i
Manufacturer Part Number RS500I-BK
Technical Information
Material PP
Impedance 8 ohms
Sensitivity 87dB
Speaker Size 5.25"
Crossover Type 2-way
Audio
RMS Output Power 75W
Maximum Frequency Response 22 kHz
Minimum Frequency Response 61Hz
Certifications
TAA Compliant No
Environmental Conditions
Sound Emission 5 dB
Physical Characteristics
Size 5.25"
Color Black
Height 11.7"
Enclosure Type Ported
Product Information
Diameter 9.7"
Mount Type Ceiling Mount
Installation Type Commercial
Warranty
Limited Warranty 5-Year
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Country of Origin CN
Environmentally Friendly Yes
