SoundTube RS500I-WH 5.25" Hanging Speaker with BroadBeam Tweeter, White

SKU: RS500I-WH SoundTube

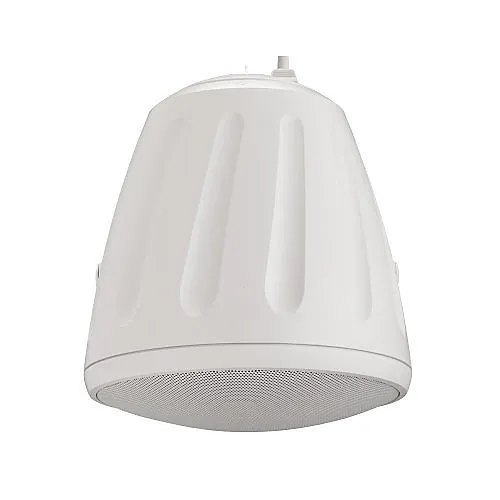

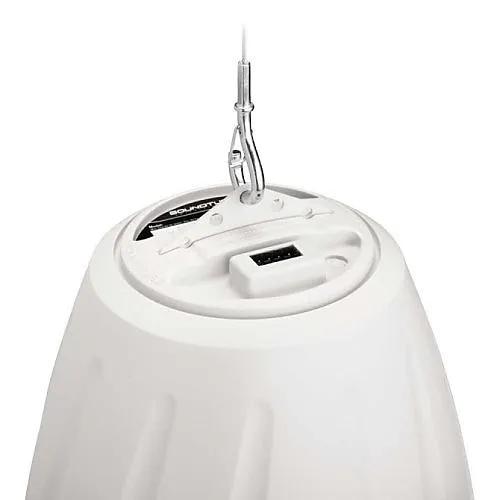

Image of 9W-RS500IWH
Product images for SoundTube RS500I-WH 5.25" Hanging Speaker with BroadBeam Tweeter, White. 3 image(s) available. Click on image to view full size.

Key Features

  • BroadBeam tweeter and ZeroReflection enclosure deliver consistent, full-range coverage for clear paging and background music across large spaces
  • Broad 105° dispersion reduces speaker count and installation time while ensuring even audio for lobbies, retail, and control rooms
  • 75W RMS handling and 61Hz–22kHz response provide authoritative low end and crisp highs for voice and music clarity
  • Multi-tap transformer (25/70.7/100V) plus bypass simplifies integration with commercial PA and security paging systems
  • Weatherized components, UL certification, and included hanging hardware enable fast, secure installs for indoor/outdoor and monitoring environments

Quick Specifications

Product Model
RS500I
Brand Name
SoundTube
Product Name
RS500I Speaker
Product Type
Speaker
View Full Technical Specifications

Explore the details

Product information

RS500I-WH

Overview

Designed for reliable, wide-area audio in commercial and security environments, the SoundTube RS500I-WH hanging speaker delivers even, intelligible sound for paging, background music and monitoring applications. This pro speaker pairs a 5.25" polypropylene woofer with a BroadBeam 1" convex titanium tweeter mounted on a cast-aluminum baffle to produce clear voice reproduction and musical detail across a 61Hz–22kHz frequency range. With 75W RMS power handling and 105° off-axis coverage, the RS500I-WH reduces the number of fixtures needed while maintaining consistent SPL across the listening area. Installers appreciate the included UL-listed hanging hardware, SpeedClamp self-locking wire grip and a six-position tap switch for 25/70.7/100V systems with a transformer bypass for low-impedance use. Weatherized components and a durable powder-coated grille make this hanging speaker suitable for indoor/outdoor venues, retail stores, transit hubs and surveillance control rooms where dependable paging and monitoring are critical. Backed by a 5-year limited warranty, the SoundTube RS500I-WH is a practical choice for integrators and security professionals — add it to your next commercial audio or security project.

Features

  • BroadBeam tweeter and ZeroReflection enclosure deliver consistent, full-range coverage for clear paging and background music across large spaces
  • Broad 105° dispersion reduces speaker count and installation time while ensuring even audio for lobbies, retail, and control rooms
  • 75W RMS handling and 61Hz–22kHz response provide authoritative low end and crisp highs for voice and music clarity
  • Multi-tap transformer (25/70.7/100V) plus bypass simplifies integration with commercial PA and security paging systems
  • Weatherized components, UL certification, and included hanging hardware enable fast, secure installs for indoor/outdoor and monitoring environments
23 of 23 specifications
Technical specifications for SoundTube RS500I-WH 5.25" Hanging Speaker with BroadBeam Tweeter, White
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name RS500I Speaker
Product Type Speaker
Product Model RS500I
Product Series RSi
Country of Origin CN
Manufacturer Part Number RS500I-WH
Technical Information
Impedance 8Ohm
Sensitivity 87dB
Crossover Type 2-Way
Audio
Maximum Frequency Response 22kHz
Minimum Frequency Response 61Hz
Certifications
TAA Compliant No
Physical Characteristics
Size 5.25"
Color White
Height 11.70"
Material PP
Enclosure Type Ported
Product Information
Diameter 9.70"
Warranty
Limited Warranty 5-Year
Miscellaneous
Indoor/Outdoor Indoor, Outdoor
Environmentally Friendly Yes
