SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black

SKU: RS800I-BK SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

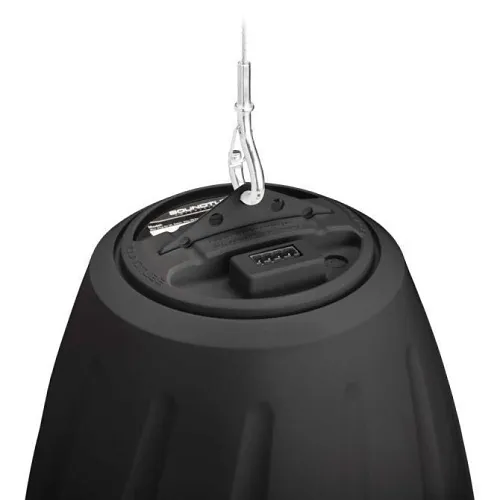

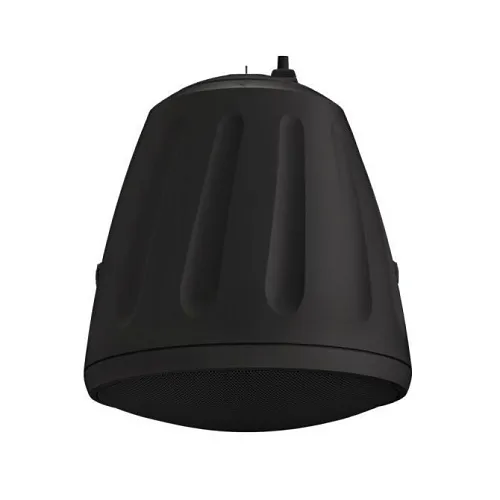

Image of 9W-RS800IBK
Product images for SoundTube RS800I-BK SoundTube 8" Hanging Speaker with BroadBeam Tweeter, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver clear, intelligible audio across large indoor/outdoor spaces with BroadBeam tweeter technology for dependable paging, background music and security announcements
  • Simplify installation and inventory with integrated 25/70.7/100V taps plus transformer bypass and included hanging hardware and Euroblock connector
  • Rugged, weatherized design and powder-coated steel grille protect components for long service life in monitored environments and surveillance zones
  • Low-frequency extension down to 58 Hz and an 8-inch woofer provide full-range sound for voice and music, enhancing message clarity for emergency and public address systems
  • Wide 105° off-axis coverage ensures even sound distribution, reducing dead zones and improving intelligibility for security and monitoring applications

Quick Specifications

Product Model
RS800I-BK
Brand Name
SoundTube
Manufacturer Part Number
RS800I-BK
View Full Technical Specifications

Product Information Tabs

Overview

Optimize coverage and intelligibility for paging, public address and security monitoring with the SoundTube RS800I-BK hanging pro speaker. This two-way pro speaker combines an 8-inch polypropylene woofer and SoundTube’s BroadBeam waveguide titanium tweeter to deliver consistent, full-range audio (extended low end to ~58 Hz, max response to 22 kHz) and verified 105° off-axis performance for edge-to-edge clarity. The patented ZeroReflection enclosure and driver protection circuitry maintain fidelity at higher output levels, while weatherized components and a powder-coated steel grille provide durable operation in indoor or exposed environments. For system designers and integrators, the six-position tap switch supports 25-, 70.7- and 100-volt systems with a transformer bypass for low-impedance use, reducing SKUs and simplifying deployments. Hanging hardware with SpeedClamp and a safety cable are included for fast, secure installation, and a Euroblock connector with terminal weather boot streamlines wiring. Ideal for commercial AV, security paging, surveillance monitoring and emergency notification systems—specify the RS800I-BK when you need reliable, even coverage and clear voice reproduction. Contact us to configure for your next project.

Features

  • Deliver clear, intelligible audio across large indoor/outdoor spaces with BroadBeam tweeter technology for dependable paging, background music and security announcements
  • Simplify installation and inventory with integrated 25/70.7/100V taps plus transformer bypass and included hanging hardware and Euroblock connector
  • Rugged, weatherized design and powder-coated steel grille protect components for long service life in monitored environments and surveillance zones
  • Low-frequency extension down to 58 Hz and an 8-inch woofer provide full-range sound for voice and music, enhancing message clarity for emergency and public address systems
  • Wide 105° off-axis coverage ensures even sound distribution, reducing dead zones and improving intelligibility for security and monitoring applications
General Information
Brand Name SoundTube
Manufacturer Part Number RS800I-BK
Audio
Maximum Frequency Response 22 kHz
Minimum Frequency Response 80 Hz
Physical Characteristics
Color Black
Width 14.82"
Height 17.23"
Miscellaneous
Features Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (up to 10 kHz, independently verified), Patented ZeroReflection enclosure technology for optimal sound reproduction and cabinet rigidity, Steel grille with protective powder-coated finish for lasting durability, Weatherized components for indoor and outdoor applications
Package Contents Euroblock, Hanging Hardware, Safety Cable, Terminal Weather Boot
Environmentally Friendly Yes
Environmental Certification CE, RoHS, UL
