Simply45 S45-1150 CAT6 Shielded External Ground Standard We/Ss Rj45 with Bars45
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Delivers superior signal isolation and reduced NEXT for cleaner data on security, surveillance and enterprise networks
- Designed for large-diameter shielded Cat6/Cat6a cables (PE insulated) for reliable 10GBase-T performance
- External-shield design with secure grounding simplifies bond to chassis and improves EMI rejection in noisy environments
- BarS45 load bar streamlines wire alignment and speeds terminations, reducing installation time and rework
- Durable 50µ gold contacts and plenum-rated materials ensure long-term reliability for PoE/PoE+ powered devices
Quick Specifications
- Product Model
- S45-1150
- Brand Name
- SimplyBRANDS
- Product Line
- Simply45
- Product Name
- S45-1150 - Cat6 Shielded External Ground - Standard WE/SS RJ45 with BarS45
Frequently Bought Together
Simply45 S45-1150 CAT6 Shielded External Ground Standard We/Ss Rj45 with Bars45
$108.78
9 items selected
Total: $417.73
Explore the details
Product information
S45-1150
Overview

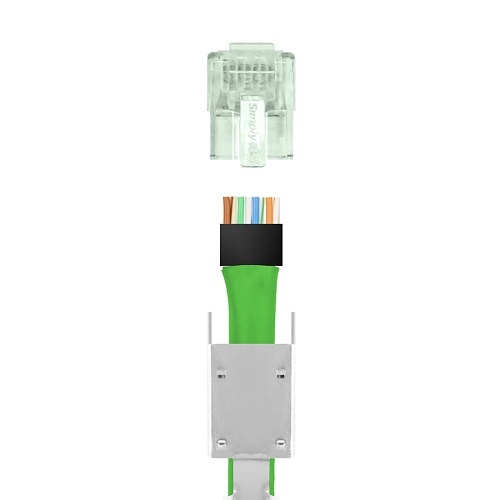

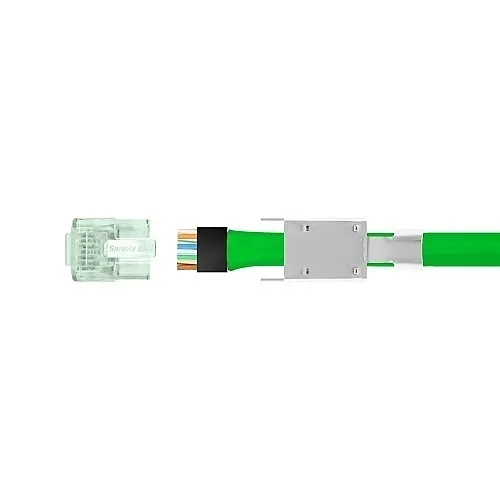

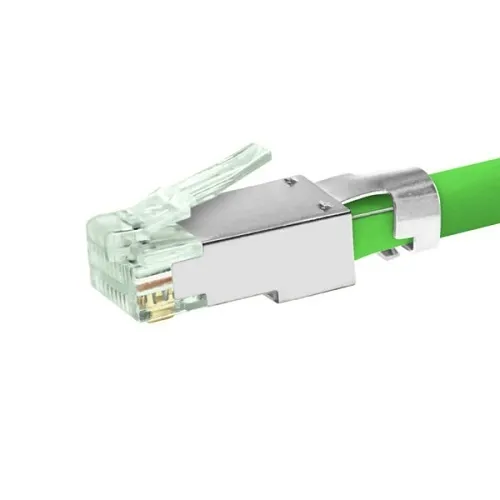

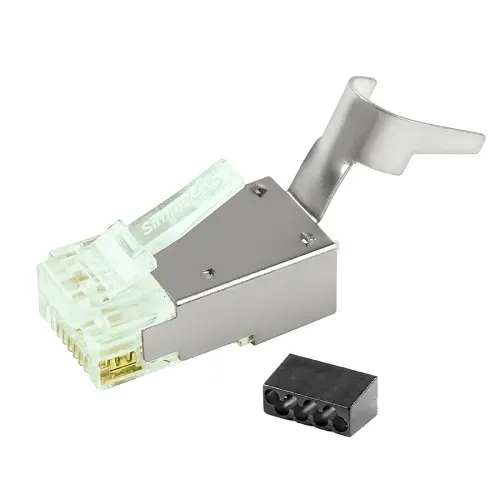

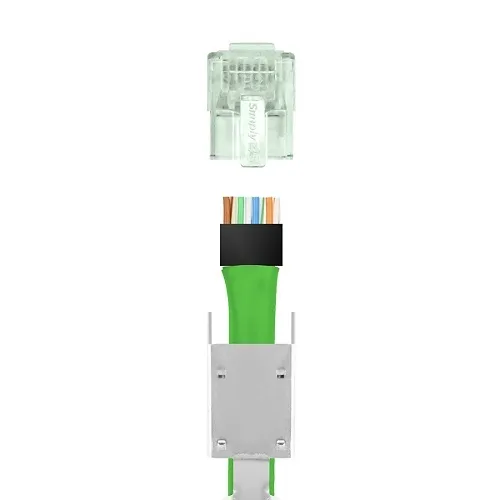

Optimize installations for security, surveillance and enterprise monitoring systems with the SimplyBRANDS S45-1150 shielded RJ45 modular plug. This network connector is engineered to deliver superior signal isolation and consistent terminations on larger-diameter shielded Cat6 and Cat6a cables, supporting 23AWG solid conductors with a conductor range of 1.10–1.20 mm and a maximum cable OD of 8.0 mm. The two-piece external-ground design allows the metal shell to snap on separately, enabling deeper cable insertion to minimize untwisted pair length and improve NEXT and FEXT performance—critical for reliable video and data transmission in PoE cameras and HDBaseT links. The included BarS45 load bar simplifies wire dressing and speeds up field terminations, cutting install time and reducing errors. With 50 µin gold contacts, plenum-rated materials, and RoHS compliance, the S45-1150 is built for demanding AV, surveillance, and network backbones. Choose the S45-1150 network connector to improve install efficiency and signal integrity—ideal for security, monitoring and high-performance LAN deployments. Order now to streamline your terminations.
Features
- Delivers superior signal isolation and reduced NEXT for cleaner data on security, surveillance and enterprise networks
- Designed for large-diameter shielded Cat6/Cat6a cables (PE insulated) for reliable 10GBase-T performance
- External-shield design with secure grounding simplifies bond to chassis and improves EMI rejection in noisy environments
- BarS45 load bar streamlines wire alignment and speeds terminations, reducing installation time and rework
- Durable 50µ gold contacts and plenum-rated materials ensure long-term reliability for PoE/PoE+ powered devices
| General Information | |
|---|---|
| Brand Name | SimplyBRANDS |
| Manufacturer | SIMPLY45 LLC |
| Product Line | Simply45 |
| Product Name | S45-1150 - Cat6 Shielded External Ground - Standard WE/SS RJ45 with BarS45 |
| Product Type | Network Connector |
| Product Model | S45-1150 |
| Product Series | Standard |
| Country of Origin | TW |
| Packaged Quantity | 50 |
| Manufacturer Part Number | S45-1150 |
| Technical Information | |
| Shielding | Yes |
| Cable Type | Category 6 |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Certifications | |
| TAA Compliant | Yes |
| Interfaces/Ports | |
| Connector Type | RJ45 |
| Physical Characteristics | |
| Color | Green |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | 50µ Gold |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
