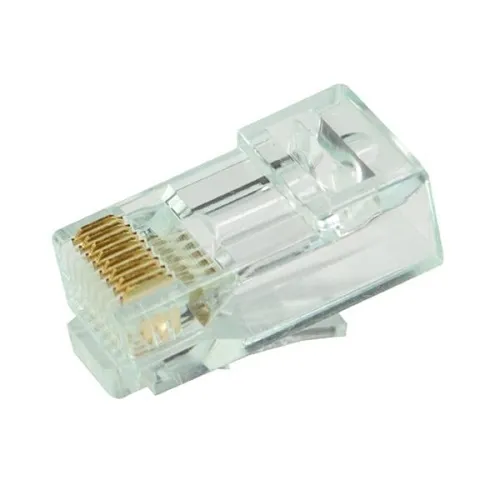

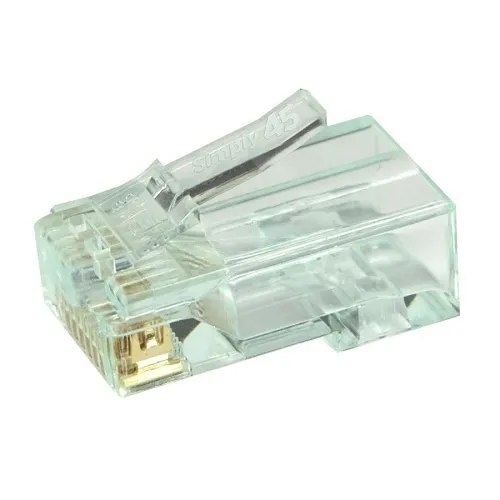

Simply45 S45-1600 CAT6 Unshielded Cable, Pass Through RJ45, 100-Pack

Streamline high-performance Cat6 terminations for security, surveillance and enterprise networks with the SimplyBRANDS S45-1600 Cat6 unshielded pass-through RJ45 modular plugs. Designed for installers who need consistent, repeatable results, these 3-prong contact plugs use 50µ 24ct gold plating to improve signal integrity and provide a stronger mechanical connection—critical for reliable PoE and monitoring systems. The pass-through straight-line design accommodates solid 23–24 AWG and stranded 28–26 AWG UTP cables (0.95–1.05mm conductors) and accepts cable diameters up to 7.0mm, enabling fast terminations on both horizontal runs and patch cords. Engineered to meet ANSI/TIA-568.2-D Cat6 and ISO/IEC 11801 Class E standards, the S45-1600 reduces untwisted pair length to lower NEXT/FEXT and maintain network performance in CCTV, access control and IT backbone applications. Packaged in a 100-count wide-mouth jar with a green tint for quick identification, these UL94 V0-rated plugs are built for field technicians and low-voltage contractors. Specify SimplyBRANDS S45-1600 for secure, dependable cabling in security, surveillance, monitoring and LAN deployments—order a 100-pack for your next install.

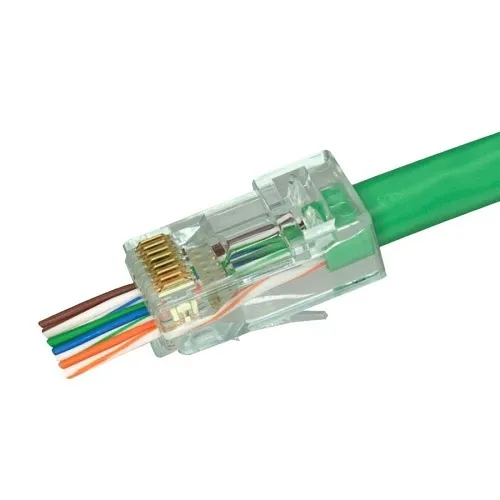

• Speeds terminations and reduces rework: pass-through design and straight-line wire insertion let technicians trim and crimp in one step for faster Cat6 installations.
• Reliable, long-lasting connections: 50µ 24ct gold-plated 3-prong contacts provide three points of contact for improved signal integrity and stronger conductor grip—ideal for PoE, PoE+ and PoE++ deployments.
• Enhanced network performance: internal design minimizes untwisted pair length to reduce NEXT/FEXT and support ANSI/TIA-568.2-D Cat6 and ISO/IEC Class E performance.
• Installer-friendly packaging: 100-pack wide-mouth jar with color-tinted green plugs and matching cap for quick identification and easy access on the jobsite.
• Versatile cable compatibility: works with solid 23–24 AWG and stranded 28–26 AWG UTP cables up to 7.0mm OD, suitable for patch cords, horizontal runs and camera leads.
• Commercial-grade safety: UL94 V0 (plenum) rating and RoHS compliance make it suitable for plenum, riser and low-smoke installations in security and enterprise networks.
