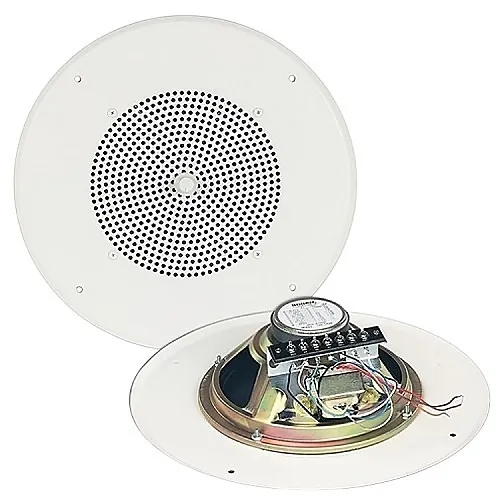

Bogen S86T725PG8WBRVK Ceiling Speaker Assembly with S86 8" Cone, Volume Knob and Screw Terminal Bridge, Off White

SKU: S86T725PG8WBRVK Bogen
Bogen S86T725PG8WBRVK Speaker - 4 W RMS - Off White
Product images for Bogen S86T725PG8WBRVK Ceiling Speaker Assembly with S86 8" Cone, Volume Knob and Screw Terminal Bridge, Off White. 2 image(s) available. Click on image to view full size.

Key Features

  • Pre-assembled in-ceiling package for faster installation and reduced labor costs
  • Built-in volume knob and rear screw terminal bridge for easy on-site level adjustment and wiring
  • Flexible power tapping (T725 4W transformer; compatible with 70V and 25V systems) for distributed paging and background music
  • High sensitivity (95dB) and an 8in cone deliver clear voice intelligibility for security, monitoring and public-address use
  • Durable 13in steel grille with off-white finish blends into commercial ceilings and resists wear
  • Compact 3.25in depth fits tight plenum and retrofit installations for retail, education and corporate environments

Quick Specifications

Product Model
S86T725PG8WBRVK
Brand Name
Bogen
Product Line
Bogen
Product Name
S86T725PG8WBRVK Speaker
View Full Technical Specifications

Explore the details

Product information

S86T725PG8WBRVK

Overview

Designed for clear, reliable audio in commercial and security environments, the Bogen S86T725 ceiling speaker assembly delivers intelligible paging and background music with minimal installation time. This professional in-ceiling speaker integrates an 8in cone driver and a T725 4-watt transformer, offering selectable power taps and compatibility with both 70V and 25V public-address systems. With 95dB sensitivity and a frequency range tailored for voice (50Hz–12kHz), it enhances monitoring, surveillance audio feeds and live paging so messages remain audible across lobbies, corridors and retail areas.

The unit ships pre-assembled on a 13in steel grille finished in off-white, and includes a front-mounted volume knob plus a rear screw terminal bridge for fast wiring and on-site level control—reducing installer callbacks and system tuning time. Its low profile (3.25in depth) adapts to tight ceiling cavities, making it ideal for schools, office buildings, healthcare and security-conscious facilities. Backed by a 2-year limited warranty, the Bogen S86T725 is a practical choice for reliable, scalable audio deployments. Add to your next paging or surveillance project—contact sales or order now to simplify installation and improve intelligibility.

Features

  • Pre-assembled in-ceiling package for faster installation and reduced labor costs
  • Built-in volume knob and rear screw terminal bridge for easy on-site level adjustment and wiring
  • Flexible power tapping (T725 4W transformer; compatible with 70V and 25V systems) for distributed paging and background music
  • High sensitivity (95dB) and an 8in cone deliver clear voice intelligibility for security, monitoring and public-address use
  • Durable 13in steel grille with off-white finish blends into commercial ceilings and resists wear
  • Compact 3.25in depth fits tight plenum and retrofit installations for retail, education and corporate environments
29 of 29 specifications
Technical specifications for Bogen S86T725PG8WBRVK Ceiling Speaker Assembly with S86 8" Cone, Volume Knob and Screw Terminal Bridge, Off White
General Information
Brand Name Bogen
Manufacturer Bogen Communications International, Inc
Product Line Bogen
Product Name S86T725PG8WBRVK Speaker
Product Type Speaker
Product Model S86T725PG8WBRVK
Product Series S86
Packaged Quantity 1
Manufacturer Part Number S86T725PG8WBRVK
Technical Information
Impedance 8 ohms
Sensitivity 95dB
Speaker Size 8"
Wireless Speaker No
Audio
RMS Output Power 4W
Number of Speakers 1
Maximum Frequency Response 12 kHz
Minimum Frequency Response 50Hz
Certifications
Energy Star No
TAA Compliant No
Physical Characteristics
Size 8"
Color White
Depth 3.25"
Product Information
Diameter 13"
Mount Type In-ceiling Mount
Warranty
Limited Warranty 2-Year
Miscellaneous
Features Faster Installation
Indoor/Outdoor Indoor, Outdoor
Country of Origin CN
Environmentally Friendly No
