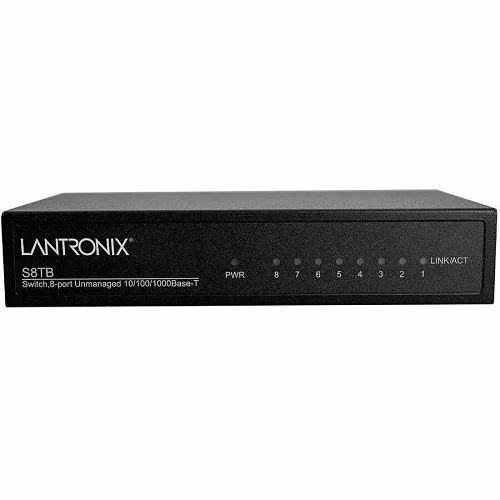

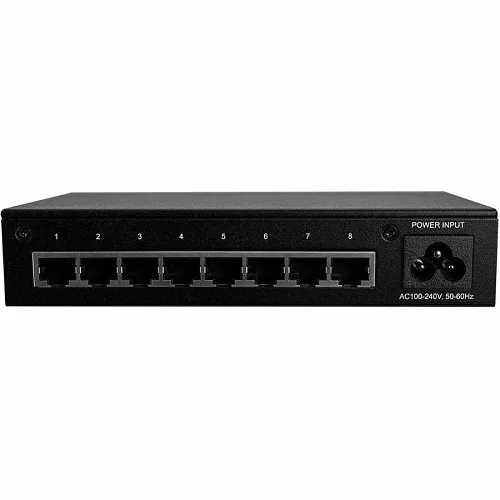

Lantronix S8TB-EU Unmanaged Switch 8-Port Gigabit Ethernet, EU
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Plug-and-play gigabit performance: 8 x 10/100/1000Base-T ports deliver low-latency, wire-speed switching to keep security, surveillance, and office networks responsive.
- Simplifies surveillance and monitoring deployments: Auto-MDI/MDIX and Auto-Negotiation remove configuration hassles when adding cameras or NVRs.
- Compact, energy-efficient design: Small form factor with internal power supply and IEEE 802.3az support reduces rack space and operating costs.
- Handles large traffic bursts: Jumbo frame support up to 9K bytes improves throughput for video streams and large data transfers.
- Reliable, long-term value: Lifetime limited warranty and robust store-and-forward switching provide stable connectivity for SMB and enterprise edge networks.
Quick Specifications
- Product Model
- S8TB-EU
- Brand Name
- Lantronix
- Product Name
- S8TB Ethernet Switch
- Product Type
- Ethernet Switch
Explore the details
Product information
S8TB-EU
Overview
Built for fast, reliable edge connectivity, the Lantronix S8TB-EU unmanaged switch gives IT teams a simple way to expand wired networks for security, surveillance and monitoring systems. This 8-port Gigabit Ethernet switch delivers plug-and-play, wire-speed performance across all eight 10/100/1000Base-T ports, minimizing latency for camera streams and critical data flows. Its Auto-MDI/MDIX and Auto-Negotiation features eliminate port pairing headaches, while jumbo frame support up to 9K bytes improves throughput for high-bandwidth video and large file transfers.
The S8TB-EU’s small form factor and internal power supply make it ideal for constrained spaces or closet installations, and IEEE 802.3az energy-efficient Ethernet reduces power draw (typical 3.5W) without sacrificing performance. As an unmanaged network switch, it requires no configuration—perfect for rapid deployment at branch offices, SMB environments, PoS sites, or as a dedicated switch for IP cameras and NVRs. Backed by a lifetime limited warranty, the Lantronix S8TB-EU is a practical choice for dependable, low-maintenance network expansion. Add it to your security or surveillance setup today to bring immediate, resilient Gigabit connectivity to your edge devices.
Features
- Plug-and-play gigabit performance: 8 x 10/100/1000Base-T ports deliver low-latency, wire-speed switching to keep security, surveillance, and office networks responsive.
- Simplifies surveillance and monitoring deployments: Auto-MDI/MDIX and Auto-Negotiation remove configuration hassles when adding cameras or NVRs.
- Compact, energy-efficient design: Small form factor with internal power supply and IEEE 802.3az support reduces rack space and operating costs.
- Handles large traffic bursts: Jumbo frame support up to 9K bytes improves throughput for video streams and large data transfers.
- Reliable, long-term value: Lifetime limited warranty and robust store-and-forward switching provide stable connectivity for SMB and enterprise edge networks.
| General Information | |
|---|---|
| Brand Name | Lantronix |
| Manufacturer | Lantronix, Inc |
| Product Name | S8TB Ethernet Switch |
| Product Type | Ethernet Switch |
| Product Series | S8TB |
| Manufacturer Part Number | S8TBEU |
| Technical Information | |
| Power Consumption | 3.5000W |
| Network Switch Type | Unmanaged |
| Media Type Supported | Twisted Pair |
| I/O Expansions | |
| Shared SFP Slot | No |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 8 |
| Management & Protocols | |
| Manageable | No |
| Media & Performance | |
| Network Technology | 10/100/1000Base-TX |
| Network & Communication | |
| Ethernet Technology | 1 Gbps (Gigabit Ethernet) |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Physical Characteristics | |
| Depth | 6.30" |
| Width | 3.90" |
| Height | 1.30" |
| Power Description | |
| Power Source | AC Power |
| Input Voltage | 120V AC, 230V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Auto-MDI/MDIX, Auto-Negotiation, Internal power supply, Small form factor, Support Jumbo Frame up to 9K bytes, Supports full and half-duplex for 10/100Mbps and full-duplex for 1000Mbps, Supports IEEE 802.3az energy efficient Ethernet, Wire-speed packet filtering and forwarding rate |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, RoHS, WEEE |
