SoundTube SA202-II-RDT 2x10W Stereo Amplifier, No Power Supply

SKU: SA202-II-RDT SoundTube

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

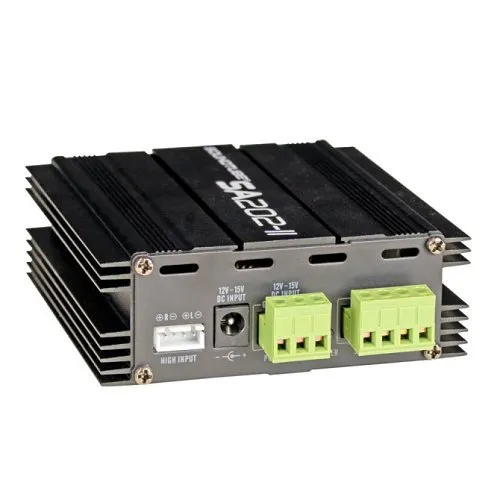

Image of 9W-SA202RDT
Product images for SoundTube SA202-II-RDT 2x10W Stereo Amplifier, No Power Supply. 3 image(s) available. Click on image to view full size.

Key Features

  • Compact, dependable audio for security, paging and monitoring installations — fits tight racks and enclosures
  • Flexible connectivity (RCA, 3.5mm stereo jack, high‑level) to integrate with CCTV headends, media players or mixers
  • Delivers up to 20W per channel (4 Ω) and 10W per channel (8 Ω), matching power to speaker zones for clear voice intelligibility
  • 12V DC operation with 12V trigger for automated on/off with source equipment; ships without power supply so you can centralize power where required
  • Integrated aluminum heat sink and multiple mounting options (pole/surface/security mounts) for continuous duty in pro environments

Quick Specifications

Product Model
SA202-II-RDT
Brand Name
SoundTube
Product Name
SA202-II Amplifier
Product Type
Amplifier
View Full Technical Specifications

Explore the details

Product information

SA202-II-RDT

Overview

Built for professional security and surveillance audio, the SoundTube SA202-II-RDT stereo amplifier provides compact, dependable amplification for paging, monitoring and distributed audio zones. This Class AB pro amplifier combines small-footprint design with rugged thermal management so it can run continuously in equipment closets or field enclosures. It delivers up to 20W per channel into 4 Ω (10W per channel into 8 Ω), ensuring clear voice announcements and background audio without audible distortion. Multiple inputs — dual RCA, stereo mini jack and high-level — let you connect CCTV audio outputs, network audio players or paging controllers without extra adapters. The unit accepts 12V DC and includes a 12V trigger for automated on/off integration with security systems, simplifying centralized power and control. With included mounting options and an aluminum housing that doubles as a heat sink, the SA202-II-RDT installs cleanly in monitoring rooms, rack cabinets or pole mounts. Ideal for system integrators and security professionals, this SoundTube pro amplifier streamlines audio for surveillance, paging and monitoring applications. Add the SA202-II-RDT to your next security deployment to improve intelligibility and control.

Features

  • Compact, dependable audio for security, paging and monitoring installations — fits tight racks and enclosures
  • Flexible connectivity (RCA, 3.5mm stereo jack, high‑level) to integrate with CCTV headends, media players or mixers
  • Delivers up to 20W per channel (4 Ω) and 10W per channel (8 Ω), matching power to speaker zones for clear voice intelligibility
  • 12V DC operation with 12V trigger for automated on/off with source equipment; ships without power supply so you can centralize power where required
  • Integrated aluminum heat sink and multiple mounting options (pole/surface/security mounts) for continuous duty in pro environments
25 of 25 specifications
Technical specifications for SoundTube SA202-II-RDT 2x10W Stereo Amplifier, No Power Supply
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name SA202-II Amplifier
Product Type Amplifier
Product Model SA202-II-RDT
Manufacturer Part Number SA202IIRDT
Technical Information
Impedance 4 ohms
Audio Channels 2
Classification AB
Audio
RMS Output Power 40W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Interfaces/Ports
Number of Audio Inputs 2
Others
Model Number Replaces SA202-II-RDT
Physical Characteristics
Color Black
Depth 4.9"
Width 4"
Height 1.2"
Weight 1.30lb
Power Description
Input Voltage 12V DC
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 12V Trigger for Automatic On/Off, 20W per Channel Output at 4 Ohms, Includes Mounting Hardware, Max Gain of 35 dB
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification RoHS
