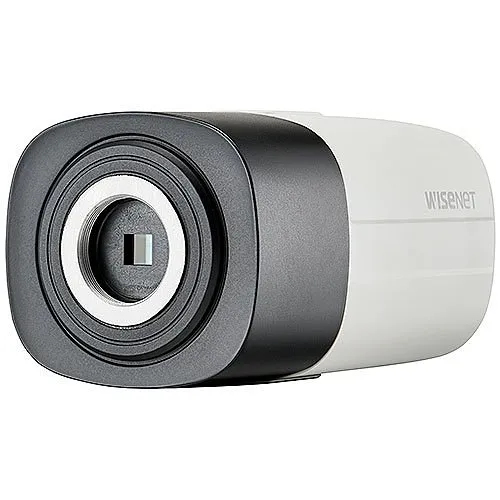

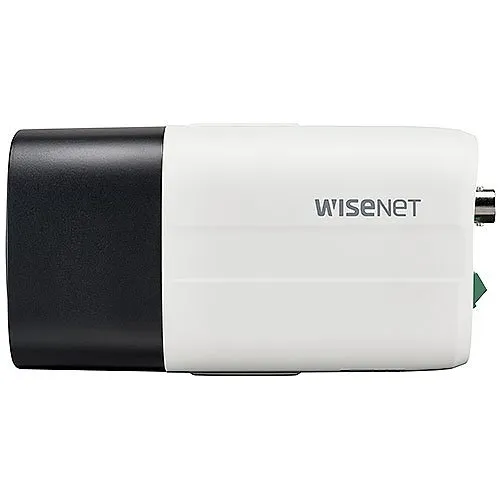

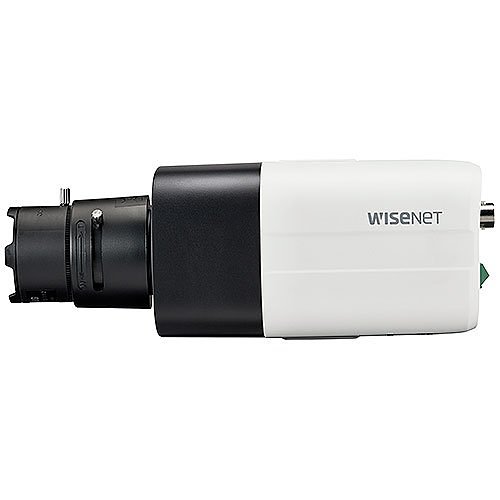

Hanwha SCB-6005 HD+ Series 2MP Analog Box Camera, Lens Not Included, Black and Ivory
Image of 5
Key Features
- Upgrade existing analog systems to HD without rewiring: preserves legacy coax while delivering 2MP/1080p surveillance
- Reliable low-light monitoring with down to 0.004 Lux sensitivity and built-in IR for clear night images
- Flexible installation: C/CS lens mount (lens not included), compact form factor and 12V DC/24V AC power
- Long-range transmission up to 500m over coax for simplified site-wide deployments
- NDAA-compliant, rugged indoor/outdoor operation and easy setup via OSD joystick for fast commissioning
Quick Specifications
- Product Model
- SCB-6005
- Brand Name
- Hanwha Vision
- Product Name
- AHD Box
- Product Type
- Box Camera
Frequently Bought Together
Hanwha SCB-6005 HD+ Series 2MP Analog Box Camera, Lens Not Included, Black and Ivory
$101.59
8 items selected
Total: $1,112.01
Explore the details
Product information
SCB-6005
Overview
Upgrade legacy coax-based CCTV into a modern HD surveillance system with the Hanwha Vision SCB-6005 HD+ series box camera. Designed for professional security and monitoring applications, this 2MP analog box camera delivers Full HD 1920 x 1080 video at 30 fps for clear identification and forensic detail while avoiding costly cable replacement. Its strong low-light performance (down to 0.004 Lux) and built-in IR illumination ensure reliable day/night monitoring, and transmission distances up to 500m over coax simplify multi-camera installations.
The SCB-6005 accommodates C/CS lens options (lens not included) so you can tailor focal length to each site, and supports 12V DC or 24V AC power for flexible mounting. Built-in features such as digital WDR, defog, motion detection and privacy masking reduce false alarms and improve image usability for security operations centers. NDAA compliance and a compact, weather-resistant enclosure make it suitable for enterprise, retail, transportation and campus environments. Add the Hanwha SCB-6005 to your next surveillance upgrade—contact sales to choose the right lens and mounting accessories for your deployment.
Features
- Upgrade existing analog systems to HD without rewiring: preserves legacy coax while delivering 2MP/1080p surveillance
- Reliable low-light monitoring with down to 0.004 Lux sensitivity and built-in IR for clear night images
- Flexible installation: C/CS lens mount (lens not included), compact form factor and 12V DC/24V AC power
- Long-range transmission up to 500m over coax for simplified site-wide deployments
- NDAA-compliant, rugged indoor/outdoor operation and easy setup via OSD joystick for fast commissioning
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | AHD Box |
| Product Type | Box Camera |
| Product Model | SCB-6005 |
| Product Series | HD+ |
| Country of Origin | VN |
| Manufacturer Part Number | SCB-6005 |
| Technical Information | |
| Lens Mount Type | C, CS |
| Maximum Aperture | f/1.2 |
| Night Vision Type | Color |
| Maximum Frame Rate | 30fps |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Minimum Illumination | 0.0065lux |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Network & Communication | |
| Remote Management | No |
| Physical Characteristics | |
| Color | Black, White |
| Depth | 3.65" |
| Width | 2.69" |
| Height | 2.35" |
| Weight | 0.41lb |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | SCB-6003 |
| Storage | |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | AHD, CVBS |
| Miscellaneous | |
| Features | Automatic White Balance, Back Light Compensation (BLC), Built-in Infrared Illuminator, Built-in Joystick, Day/Night, Defog, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking |
| Indoor/Outdoor | Indoor, Outdoor |
