Hanwha SCV-6085R HD+ Series 2MP Analog IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
Key Features
- Upgrade legacy coax systems to HD 2MP imaging without rewiring, reducing installation cost and downtime.
- Rugged IK10 vandal-resistant dome with IP66 weatherproofing for reliable outdoor security and monitoring.
- 3.2–10mm varifocal lens and up to 30 m IR illumination deliver flexible, clear day/night surveillance at varying distances.
- Supports AHD/CVBS over coax up to 500 m for seamless integration with existing HD DVRs and easy migration.
- NDAA-compliant, low-power design with OSD joystick simplifies onsite setup and ongoing maintenance.
Quick Specifications
- Product Model
- SCV-6085R
- Brand Name
- Hanwha Vision
- Product Name
- 2MP Analog IR Vandal Dome Camera
- Product Type
- Surveillance Camera
Frequently Bought Together
Hanwha SCV-6085R HD+ Series 2MP Analog IR Vandal Dome Camera, 3.2-10mm Varifocal Lens, Ivory
$153.00
5 items selected
Total: $1,640.96
Product Information Tabs
Overview

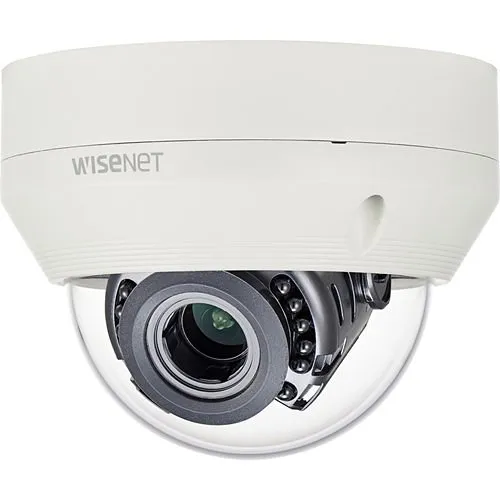

Upgrade perimeter and facility monitoring with the Hanwha Vision SCV-6085R 2MP Analog IR Vandal Dome Camera — designed to deliver reliable HD surveillance without replacing coax infrastructure. This vandal-resistant dome combines 2MP Full HD imaging (1920 x 1080 at 30fps) with a 3.2–10mm varifocal lens so installers and security managers can precisely frame critical areas from wide corridors to focused entry points. Built-in IR LEDs extend night visibility up to 30 meters for consistent round-the-clock monitoring, while advanced features like Day/Night ICR, D-WDR and defog improve image clarity in challenging lighting and weather.
Engineered for physical security, the SCV-6085R carries IP66 weatherproofing and IK10 impact resistance for outdoor use in parking lots, retail storefronts, schools and transportation hubs. It supports AHD/CVBS over coaxial cable with transmission up to 500 m, enabling cost-effective upgrades and easy integration with legacy HD DVRs. NDAA compliance and low power consumption make it suitable for commercial and government deployments. Enhance your surveillance coverage — contact sales for a quote or add the Hanwha SCV-6085R to your next security project.
Features
- Upgrade legacy coax systems to HD 2MP imaging without rewiring, reducing installation cost and downtime.
- Rugged IK10 vandal-resistant dome with IP66 weatherproofing for reliable outdoor security and monitoring.
- 3.2–10mm varifocal lens and up to 30 m IR illumination deliver flexible, clear day/night surveillance at varying distances.
- Supports AHD/CVBS over coax up to 500 m for seamless integration with existing HD DVRs and easy migration.
- NDAA-compliant, low-power design with OSD joystick simplifies onsite setup and ongoing maintenance.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Group |
| Product Name | 2MP Analog IR Vandal Dome Camera |
| Product Type | Surveillance Camera |
| Product Model | SCV-6085R |
| Product Series | HD+ |
| Manufacturer Part Number | SCV-6085R |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.1x |
| Field of View | H : 110.2°(Wide) ~ 32°(Tele) V : 55.4°(Wide) ~ 18°(Tele) D : 128.4°(Wide) ~ 36.6°(Tele) |
| Maximum Aperture | f/1.6 |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Maximum Illumination | 0.01 lux |
| Maximum Video Resolution | 1600 x 1200 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 131°F (55°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
| Exposure | |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Lens | |
| Focal Length | 3.2-10mm |
| Lens Included | Yes |
| Maximum Focal Length | 10mm |
| Others | |
| Model Number Replaces | SCV-6083R |
| Physical Characteristics | |
| Color | White |
| Weight | 1.58lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC, 24V AC |
| Product Information | |
| Diameter | 5.4" |
| Mount Type | Pendant Mount |
| Storage | |
| Recording Formats | HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | AHD, CVBS |
| Miscellaneous | |
| Features | Alarm Triggering, Back Light Compensation (BLC), Built-in IR LED, Day/Night, Defog, Digital Noise Reduction, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Motion Detection, Privacy Masking, White Balance |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
