Fire-Lite SD365-IV Addressable Photoelectric Smoke Detector, LiteSpeed and CLIP, (Replaces SD355)

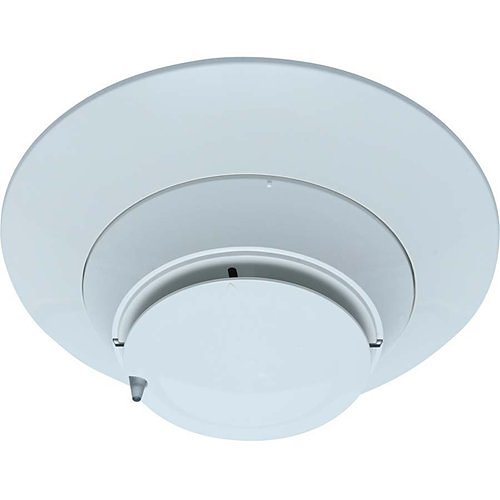

Image of 1
Key Features
- Early, reliable detection for smoldering fires with a photoelectric sensing chamber that improves safety and reduces false alarms
- Easy integration with addressable panels (supports LiteSpeed and CLIP), simplifying system commissioning and monitoring
- Dual 360° LEDs with configurable colors and synchronized remote output for clear, site-wide status and faster troubleshooting
- Low standby current and 32V DC operation to reduce system power load and lower maintenance costs
- Plug-in design with 6" mounting base and rotary address switches for fast replacement/installation and compatibility with up to 159 addresses
- UL-listed construction and robust form factor ideal for commercial, multi-family and residential security and fire alarm systems
Quick Specifications
- Product Model
- SD365-IV
- Brand Name
- Fire-Lite Alarms by Honeywell
- Product Name
- SD365-IV Smoke Detector
- Product Type
- Smoke Detector
Frequently Bought Together
Fire-Lite SD365-IV Addressable Photoelectric Smoke Detector, LiteSpeed and CLIP, (Replaces SD355)
$232.91
5 items selected
Total: $402.20
Explore the details
Product information
SD365-IV
Overview
Deliver dependable, early-warning fire protection with the Fire-Lite Alarms by Honeywell SD365-IV addressable photoelectric smoke detector. Engineered for accurate sensing of smoldering and low-flame fires, the SD365-IV transmits an analog representation of smoke density over a wired addressable loop to your control panel, enabling precise monitoring and faster response. The detector supports LiteSpeed and CLIP communication modes for flexible integration into existing fire alarm networks and uses rotary address switches for quick commissioning of up to 159 point addresses.
Designed for installers and facilities managers, the SD365-IV features dual 360° LEDs with configurable color options and a synchronized remote output for clearer on-site status and simpler diagnostics. Low standby current and 32V DC operation minimize power consumption, while the included 6" plug-in mounting base and trim ring speed field replacement (replaces SD355). UL 268 listed for reliable performance, this ceiling-mount photoelectric detector is a practical choice for commercial, residential and multi-tenant security, surveillance and fire monitoring systems. Upgrade your networked fire detection—add the SD365-IV to your next installation or contact us for integration support.
Features
- Early, reliable detection for smoldering fires with a photoelectric sensing chamber that improves safety and reduces false alarms
- Easy integration with addressable panels (supports LiteSpeed and CLIP), simplifying system commissioning and monitoring
- Dual 360° LEDs with configurable colors and synchronized remote output for clear, site-wide status and faster troubleshooting
- Low standby current and 32V DC operation to reduce system power load and lower maintenance costs
- Plug-in design with 6" mounting base and rotary address switches for fast replacement/installation and compatibility with up to 159 addresses
- UL-listed construction and robust form factor ideal for commercial, multi-family and residential security and fire alarm systems
| General Information | |
|---|---|
| Brand Name | Fire-Lite Alarms by Honeywell |
| Manufacturer | Honeywell International, Inc |
| Product Name | SD365-IV Smoke Detector |
| Product Type | Smoke Detector |
| Product Model | SD365-IV |
| Product Series | SD365 |
| Application/Usage | Residential |
| Country of Origin | MX |
| Manufacturer Part Number | SD365-IV |
| Technical Information | |
| Addressable | Yes |
| Sensor Type | Photoelectric |
| Detectable Medium | Fire |
| Sensing Technology | Photoelectric |
| Connectivity Technology | Wired |
| Certifications | |
| UL Listed | Yes |
| Certifications | UL 268, UL 268A |
| Controls/Indicators | |
| Status Indicators | Yes |
| Physical Characteristics | |
| Color | White |
| Width | 2.00" |
| Height | 2.00" |
| Form Factor | Ceiling Mount |
| Power Description | |
| Power Source | DC Power |
| Input Voltage | 32V DC |
| Product Information | |
| Diameter | 6.20" |
| Mount Type | Ceiling Mount |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | SD355 |
| Miscellaneous | |
| Features | Models SD365 and SD365-IV are plug-in type smoke sensors that combine a photoelectronic sensing chamber with addressable-analog communications, The sensors transmit an analog representation of smoke density over a communication line to a control panel. Rotary dial switches are provided for setting the sensor�s address |
