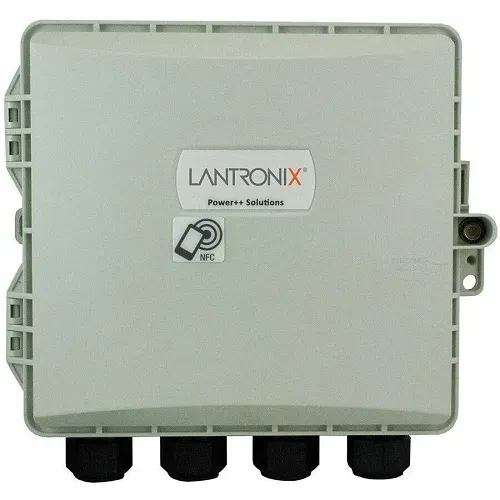

Lantronix SESPM1040-541-LT-AC-AR SESPM Series AC-Powered Self-Enclosed Switch, 4-Port 10/100/1000Base-T POE++ with Power Cord
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Rugged outdoor protection: NEMA 4X / IP66 self-enclosed design with 6kV AC surge protection keeps cameras, lighting and radios running in extreme environments.
- High-power PoE++ distribution: Four IEEE 802.3bt PoE++ gigabit ports deliver up to 90W per port (AC/DC configurations) and a combined PoE budget to power multi-camera, lighting or signage deployments.

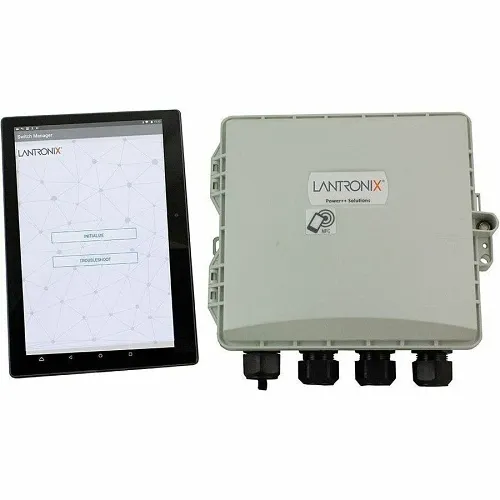

- Simplified deployment and maintenance: Built-in NFC and BLE enable hands-free configuration and remote access for field technicians, minimizing ladder time and service visits.
- Flexible connectivity: 4x 10/100/1000Base-T PoE ports plus a combo RJ-45/SFP uplink support fiber or copper backhaul for resilient security and monitoring networks.
- Managed, secure networking: Layer 2 management with Web GUI, CLI, SNMP, SSH and RADIUS/TACACS+ gives centralized control and secure integration into enterprise surveillance systems.
Quick Specifications
- Product Model
- SESPM1040-541-LT-AC-AR
- Brand Name
- Lantronix
- Product Name
- Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch
- Product Type
- Ethernet Switch
Explore the details
Product information
SESPM1040-541-LT-AC-AR
Overview
Built for perimeter security, surveillance and outdoor monitoring, the Lantronix SESPM1040-541-LT-AC self-enclosed managed PoE++ switch delivers reliable power and secure data in harsh environments. This SESPM series switch combines four 10/100/1000Base-T IEEE 802.3bt PoE++ ports with a combo RJ-45/1000Base-X SFP uplink inside a NEMA 4X/IP66 rated enclosure — providing 6kV surge protection and a high PoE budget to power cameras, PoE lighting and digital signage without extra power bricks. Layer 2 management, Web GUI/SNMP support and advanced authentication (RADIUS/TACACS+) simplify integration with enterprise security systems and monitoring platforms. Field setup is faster with NFC provisioning and Bluetooth Low Energy access for remote diagnostics and configuration. Whether you need a hardened edge switch for a rooftop camera bank, a lighting controller for an outdoor venue, or a resilient uplink for a remote signage node, this Lantronix self-enclosed PoE++ switch reduces downtime and installation complexity. Contact sales to configure the right power option and deploy robust networking for your security and surveillance projects.
Features
- Rugged outdoor protection: NEMA 4X / IP66 self-enclosed design with 6kV AC surge protection keeps cameras, lighting and radios running in extreme environments.
- High-power PoE++ distribution: Four IEEE 802.3bt PoE++ gigabit ports deliver up to 90W per port (AC/DC configurations) and a combined PoE budget to power multi-camera, lighting or signage deployments.
- Simplified deployment and maintenance: Built-in NFC and BLE enable hands-free configuration and remote access for field technicians, minimizing ladder time and service visits.
- Flexible connectivity: 4x 10/100/1000Base-T PoE ports plus a combo RJ-45/SFP uplink support fiber or copper backhaul for resilient security and monitoring networks.
- Managed, secure networking: Layer 2 management with Web GUI, CLI, SNMP, SSH and RADIUS/TACACS+ gives centralized control and secure integration into enterprise surveillance systems.
| General Information | |
|---|---|
| Brand Name | Lantronix |
| Manufacturer | Lantronix, Inc |
| Product Name | Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch |
| Product Type | Ethernet Switch |
| Product Model | SESPM1040-541-LT-AC-AR |
| Product Series | SESPM |
| Manufacturer Part Number | SESPM1040541LTACAR |
| Technical Information | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| I/O Expansions | |
| Shared SFP Slot | Yes |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Number of Total Expansion Slots | 1 |
| Interfaces/Ports | |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 2 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Networking Standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Physical Characteristics | |
| Depth | 4.3" |
| Width | 10.1" |
| Height | 8.5" |
| Weight | 4.80lb |
| Power Description | |
| PoE Budget | 240W |
| Power Source | AC, DC, PoE, Power Supply |
| Input Voltage | 120V AC, 230V AC, 40V DC, 59V DC |
| PoE (RJ-45) Port | Yes |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Package Contents | Self-Enclosed Managed Hardened Gigabit Ethernet PoE++ Switch European AC Power Cord |
