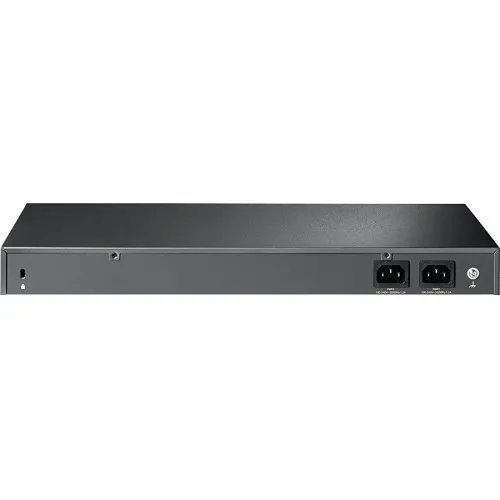

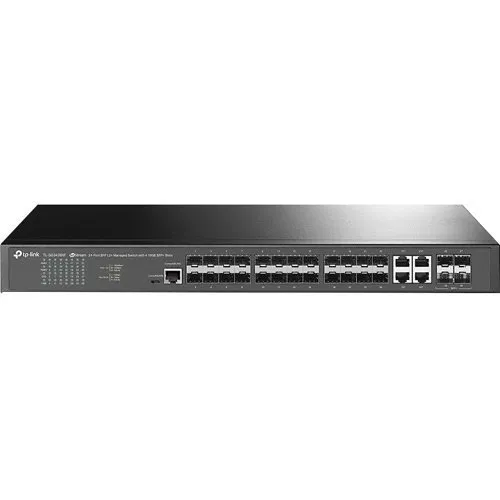

TP-Link SG3428XF Omada Aggregation 24-Port SFP L2+ Managed Switch with (4) 10GE SFP+ Slots
Image of 3
Key Features
- Enterprise-grade uplinks: Four 10Gb SFP+ ports deliver low-latency, high-bandwidth connectivity to aggregate core traffic and future-proof your network.
- Simplified centralized management: Omada SDN integration with Zero-Touch Provisioning and cloud/APP control reduces deployment time and ongoing maintenance.
- Secure and resilient operations: Built-in IP-MAC-Port Binding, ACL, DHCP Snooping and DoS defenses protect surveillance, monitoring and critical IT services.
- Traffic prioritization for real-time apps: L2–L4 QoS, IGMP snooping and static routing optimize voice, video and security camera streams.
- Rack-ready scalability: 1U metal chassis with 24 SFP/SFP+ ports lets you consolidate fiber links and expand aggregation capacity without disrupting operations.
Quick Specifications
- Product Model
- TL-SG3428XF
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Name
- JetStream TL-SG3428XF Ethernet Switch
Explore the details
Product information
SG3428XF
Overview
Drive reliable, high-performance aggregation for enterprise, campus and security networks with the TP-Link SG3428XF Omada 24-port L2+ managed switch. This TP-Link Omada switch combines four 10Gb SFP+ uplinks with a full complement of SFP fiber ports to deliver the throughput and low latency required for storage, monitoring and multi-camera surveillance deployments. As a JetStream L2+ managed switch, it brings advanced traffic control—L2/L3 static routing, L2–L4 QoS and IGMP snooping—to ensure critical VoIP, video and security streams are prioritized and uninterrupted. Integrated Omada SDN and Zero-Touch Provisioning simplify rollout and centralized cloud management, reducing on-site configuration time and lowering total cost of ownership. Robust security features including IP-MAC-Port Binding, ACLs, DHCP snooping and 802.1X provide layered protection for sensitive monitoring and IT infrastructure. Housed in a 1U rack-mount metal chassis with enterprise-grade reliability and a 5-year warranty, the SG3428XF is ideal for network aggregation, surveillance, and mission-critical connectivity. Contact sales or add to cart to upgrade your campus, branch or security network today.
Features
- Enterprise-grade uplinks: Four 10Gb SFP+ ports deliver low-latency, high-bandwidth connectivity to aggregate core traffic and future-proof your network.
- Simplified centralized management: Omada SDN integration with Zero-Touch Provisioning and cloud/APP control reduces deployment time and ongoing maintenance.
- Secure and resilient operations: Built-in IP-MAC-Port Binding, ACL, DHCP Snooping and DoS defenses protect surveillance, monitoring and critical IT services.
- Traffic prioritization for real-time apps: L2–L4 QoS, IGMP snooping and static routing optimize voice, video and security camera streams.
- Rack-ready scalability: 1U metal chassis with 24 SFP/SFP+ ports lets you consolidate fiber links and expand aggregation capacity without disrupting operations.
| General Information | |
|---|---|
| Brand Name | TP-Link |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | Omada |
| Product Name | JetStream TL-SG3428XF Ethernet Switch |
| Product Type | Switch |
| Product Model | TL-SG3428XF |
| Country of Origin | CN |
| Manufacturer Part Number | SG3428XF |
| Technical Information | |
| Power Consumption | 35.7000W |
| Network Switch Type | L2, L3, Managed |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | No |
| I/O Expansions | |
| Expansion Slot Type | SFP, SFP+ |
| Number of SFP Slots | 20 |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 24 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 4 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T, 10GBase-X |
| Network & Communication | |
| Layer Supported | 3 |
| Ethernet Technology | 10 Gbps |
| Networking Standards | IEEE 802.1p, IEEE 802.3ad |
| Physical Characteristics | |
| Color | Black |
| Depth | 8.70" |
| Width | 17.30" |
| Height | 1.70" |
| Material | Metal |
| Compatible Rack Unit | 1U |
| Power Description | |
| Frequency | 50Hz |
| Power Source | AC Power |
| Input Voltage | 110V AC, 230V AC |
| Product Information | |
| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
