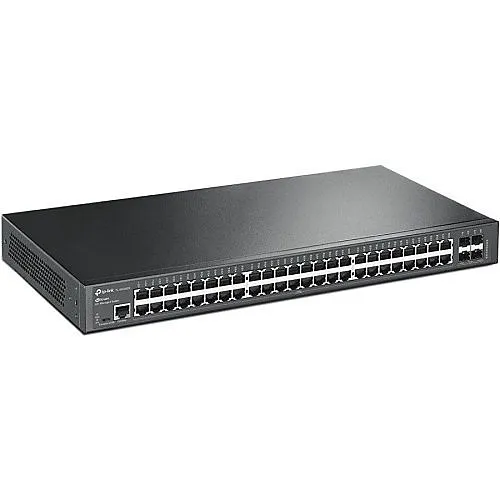

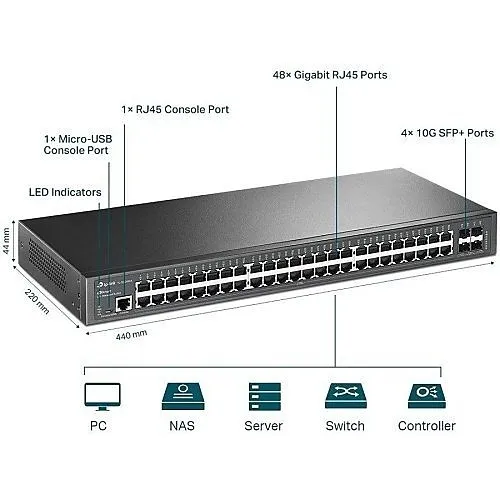

TP-Link SG3452X Omada Access Plus 48-Port Gigabit L2+ Managed Switch with (4) 10GE SFP+ Slots, Black
Key Features
- Scalable 10G uplinks: Four 10Gbps SFP+ ports provide non‑blocking connectivity to servers and aggregation switches for smooth, high-bandwidth performance.
- Reliable edge connectivity: 48 Gigabit RJ45 ports deliver consistent, low-latency links for IP cameras, access points and workstations across your site.
- Centralized Omada management: Cloud and on‑premises SDN control with Zero‑Touch Provisioning simplifies deployment, monitoring and ongoing maintenance.
- Secure, policy-driven access: Built-in ACLs, 802.1X, IP‑MAC‑Port binding and DHCP snooping protect surveillance, security and sensitive IT traffic.
- Optimized for voice/video: L2/L3/L4 QoS, IGMP snooping and static routing ensure crisp VoIP calls, smooth video streaming and efficient multicast distribution.
Quick Specifications
- Product Model
- TL-SG3452X
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Name
- JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots
Product Information Tabs
Overview
Built for installations that demand high throughput and secure, centralized control, the TP-Link SG3452X Omada Access Plus 48‑Port Gigabit L2+ Managed Switch lets IT teams scale wired networks for surveillance, security and enterprise networking with confidence. This TP-Link Omada switch combines 48 Gigabit RJ45 ports for broad device connectivity with four 10Gbps SFP+ uplinks to deliver non‑blocking aggregation to servers and core switches. As an L2+ managed switch it supports static routing, VLANs, LACP and advanced QoS to prioritize monitoring and voice/video traffic, while Omada SDN provides cloud or on‑premises management, Zero‑Touch Provisioning and multi‑site oversight to reduce deployment time. Security features such as ACLs, 802.1X authentication, IP‑MAC‑Port binding and DHCP snooping help defend camera systems, access control and critical network segments against unauthorized access. Rack‑mountable, energy efficient and backed by a 5‑year warranty, the SG3452X is ideal for campuses, retail, hospitality and security-focused environments. Add this managed switch to your network to simplify monitoring, improve throughput and secure mission‑critical systems — contact sales to specify for your surveillance or enterprise deployment.
Features
- Scalable 10G uplinks: Four 10Gbps SFP+ ports provide non‑blocking connectivity to servers and aggregation switches for smooth, high-bandwidth performance.
- Reliable edge connectivity: 48 Gigabit RJ45 ports deliver consistent, low-latency links for IP cameras, access points and workstations across your site.
- Centralized Omada management: Cloud and on‑premises SDN control with Zero‑Touch Provisioning simplifies deployment, monitoring and ongoing maintenance.
- Secure, policy-driven access: Built-in ACLs, 802.1X, IP‑MAC‑Port binding and DHCP snooping protect surveillance, security and sensitive IT traffic.
- Optimized for voice/video: L2/L3/L4 QoS, IGMP snooping and static routing ensure crisp VoIP calls, smooth video streaming and efficient multicast distribution.
| General Information | |
|---|---|
| Brand Name | TP-Link |
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Product Line | Omada |
| Product Name | JetStream 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots |
| Product Type | Switch |
| Product Model | TL-SG3452X |
| Manufacturer Part Number | SG3452X |
| Technical Information | |
| Material | Metal |
| Power Consumption | 32.72W |
| Network Switch Type | L2, L3, Managed |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | No |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP+ Slots | 4 |
| Number of Total Expansion Slots | 4 |
| Interfaces/Ports | |
| Modular | Yes |
| Uplink Port | Yes |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 48 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 10/100/1000Base-T, 10GBase-X |
| Network & Communication | |
| Layer Supported | 3 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Networking Standards | IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3x |
| Physical Characteristics | |
| Color | Black |
| Depth | 8.7" |
| Width | 17.3" |
| Height | 1.7" |
| Product Color | Black |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| Power Source | Power Supply |
| Input Voltage | 120V AC, 230V AC |
| PoE (RJ-45) Port | No |
| Product Information | |
| Mount Type | Desktop Mount, Rack Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
