Lantronix SM12XPA-JP Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, Japan Power Cord
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

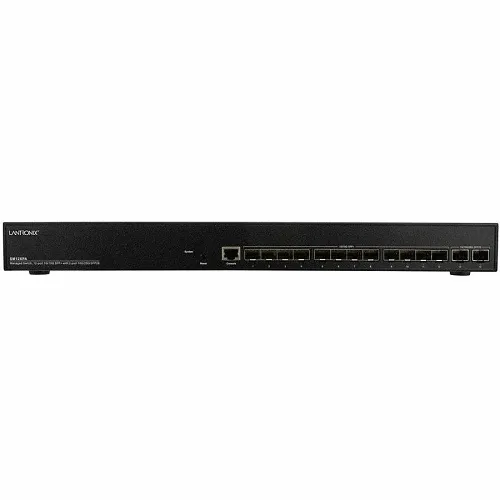

Image of 2
Key Features
- Scale backbone capacity with 12x 1G/10G SFP+ and 2x 25G SFP28 uplinks to support high-bandwidth aggregation
- Simplify deployment and maintenance with embedded DMS and RESTful API for easy provisioning and third-party integration
- Improve resilience and traffic control with Layer 3 routing (OSPF/RIP), VLANs, LACP and ACL/IP source guard
- Minimize downtime with 340 Gbps switching capacity and hot-swappable power options for reliable 24/7 operation
- Optimize surveillance and monitoring traffic using jumbo frame support, IGMP/MLD snooping and advanced QoS
Quick Specifications
- Product Model
- SM12XPA-JP
- Brand Name
- Lantronix
- Product Name
- SM12XPA Layer 3 Switch
- Product Type
- Layer 3 Switch
Frequently Bought Together
Lantronix SM12XPA-JP Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, Japan Power Cord
$2,497.48
3 items selected
Total: $2,675.06
Explore the details
Product information
SM12XPA-JP
Overview
Deliver high-capacity, low-latency fiber aggregation for security, surveillance and enterprise monitoring with the Lantronix SM12XPA-JP Managed Fiber Switch. Built for demanding access and aggregation environments, this Layer 3 switch combines 12 1G/10G SFP+ ports plus two 1G/10G/25G SFP28 uplinks and a 340 Gbps switching capacity to reduce backbone congestion and future-proof your network. Embedded Device Managed System (DMS) software and a RESTful API simplify configuration, bulk provisioning and integration with third-party NMS tools, cutting operational costs and deployment time. Advanced L2/L3 features — including OSPF/RIP routing, VLANs, LACP, IGMP/MLD snooping and ACL/IP source guard — improve traffic segmentation, optimize IP camera streams, and help protect critical monitoring infrastructure from unauthorized access. Environmentally certified (RoHS/REACH/WEEE) and packaged with a Japan power cord, the SM12XPA-JP is ideal for CCTV headends, access control aggregation, and campus network trunks. Contact sales to request a quote or specify units for your next security or surveillance deployment.
Features
- Scale backbone capacity with 12x 1G/10G SFP+ and 2x 25G SFP28 uplinks to support high-bandwidth aggregation
- Simplify deployment and maintenance with embedded DMS and RESTful API for easy provisioning and third-party integration
- Improve resilience and traffic control with Layer 3 routing (OSPF/RIP), VLANs, LACP and ACL/IP source guard
- Minimize downtime with 340 Gbps switching capacity and hot-swappable power options for reliable 24/7 operation
- Optimize surveillance and monitoring traffic using jumbo frame support, IGMP/MLD snooping and advanced QoS
| General Information | |
|---|---|
| Brand Name | Lantronix |
| Manufacturer | Lantronix, Inc |
| Product Name | SM12XPA Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Product Model | SM12XPA-JP |
| Product Series | SM12XPA |
| Manufacturer Part Number | SM12XPAJP |
| Technical Information | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | Yes |
| I/O Expansions | |
| Shared SFP Slot | No |
| Expansion Slot Type | SFP+, SFP28 |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 14 |
| Interfaces/Ports | |
| Total Number of Network Ports | 15 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 1000Base-X, 10GBase-X, 25GBase-X |
| Network & Communication | |
| Layer Supported | 4 |
| Ethernet Technology | 25 Gigabit Ethernet |
| Networking Standards | IEEE 802.1ad, IEEE 802.1D, IEEE 802.1x, IEEE 802.3 |
| Physical Characteristics | |
| Depth | 11.8" |
| Width | 17.4" |
| Height | 1.7" |
| Weight | 8.45lb |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| Power Source | Power Supply |
| Input Voltage | 120V AC, 230V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Hot-swappable |
| Package Contents | SM12XPA Layer 3 SwitchPower Cord Japan |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, RoHS, WEEE |
