Lantronix SM12XPA-SA Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, South America Power Cord
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.

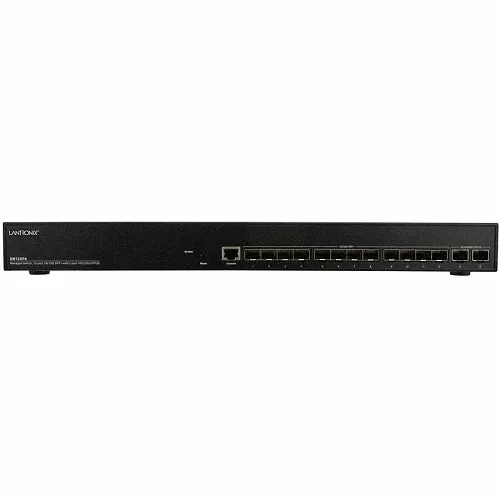

Image of 2
Key Features
- Consolidates backbone traffic with 340 Gbps switching capacity and 10G/25G uplinks to reduce infrastructure costs
- Scalable fiber aggregation: 12 SFP+ and 2 SFP28 ports optimize performance for security, surveillance and monitoring systems
- Simplifies operations with embedded DMS, RESTful API and Layer 3 routing (OSPF/RIP) for rapid network convergence
- Strengthens network security using ACLs, IP Source Guard and advanced VLAN controls to protect critical devices
- Designed for high availability: hot-swappable components, optional secondary AC supply and TAA compliance with lifetime warranty
- Lowers total cost of ownership through simplified maintenance, high-density fiber support and energy-efficient design
Quick Specifications
- Product Model
- SM12XPA-SA
- Brand Name
- Lantronix
- Product Name
- SM12XPA Layer 3 Switch
- Product Type
- Layer 3 Switch
Frequently Bought Together
Lantronix SM12XPA-SA Managed Fiber Switch with 12-Port, Supporting 1G/10G SFP+, South America Power Cord
$2,497.48
3 items selected
Total: $2,675.06
Explore the details
Product information
SM12XPA-SA
Overview
Designed for high-density access and aggregation environments, the Lantronix SM12XPA-SA managed fiber switch delivers the backbone performance companies need for security, surveillance and monitoring deployments. This Layer 3 switch provides 340 Gbps switching capacity with 12 1G/10G SFP+ ports and 2 1G/10G/25G SFP28 uplinks, enabling seamless consolidation of traffic and future-proof bandwidth for growing camera fleets, IoT sensors and enterprise access switches.
Operational simplicity is built in: the embedded Device Management System (DMS) and RESTful API streamline configuration and integration with third-party NMS tools, while OSPF and RIP support ensure rapid routing convergence across distributed sites. Advanced security features — including ACLs, IP Source Guard and robust VLAN options — protect monitoring and control systems from unauthorized access. Hot-swappable power options and compliance with TAA plus environmental certifications (RoHS, REACH, WEEE) make the SM12XPA-SA a reliable, compliant choice for critical infrastructure.
Deploy the Lantronix SM12XPA-SA in CCTV, access control, data center edge or enterprise aggregation applications — contact sales or add to cart to start scaling your fiber backbone.
Features
- Consolidates backbone traffic with 340 Gbps switching capacity and 10G/25G uplinks to reduce infrastructure costs
- Scalable fiber aggregation: 12 SFP+ and 2 SFP28 ports optimize performance for security, surveillance and monitoring systems
- Simplifies operations with embedded DMS, RESTful API and Layer 3 routing (OSPF/RIP) for rapid network convergence
- Strengthens network security using ACLs, IP Source Guard and advanced VLAN controls to protect critical devices
- Designed for high availability: hot-swappable components, optional secondary AC supply and TAA compliance with lifetime warranty
- Lowers total cost of ownership through simplified maintenance, high-density fiber support and energy-efficient design
| General Information | |
|---|---|
| Brand Name | Lantronix |
| Manufacturer | Lantronix, Inc |
| Product Name | SM12XPA Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Product Model | SM12XPA-SA |
| Product Series | SM12XPA |
| Manufacturer Part Number | SM12XPASA |
| Technical Information | |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | Yes |
| I/O Expansions | |
| Shared SFP Slot | No |
| Expansion Slot Type | SFP+, SFP28 |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 14 |
| Interfaces/Ports | |
| Total Number of Network Ports | 15 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 1000Base-X, 10GBase-X, 25GBase-X |
| Network & Communication | |
| Layer Supported | 4 |
| Ethernet Technology | 25 Gbps |
| Networking Standards | IEEE 802.1ad |
| Physical Characteristics | |
| Depth | 11.80" |
| Width | 17.40" |
| Height | 1.70" |
| Power Description | |
| Frequency | 60.00Hz |
| Power Source | AC Power |
| Input Voltage | 120V AC, 230V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Hot-swappable |
| Package Contents | SM12XPA Layer 3 SwitchPower Cord South Africa |
| Environmentally Friendly | Yes |
| Environmental Certification | REACH, RoHS, WEEE |
