SoundTube SM400I-BK 4" Coaxial Ported Surface Mount Speaker, 2-10 kHz, Black

SKU: SM400I-BK SoundTube

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of 9W-SM400IBK

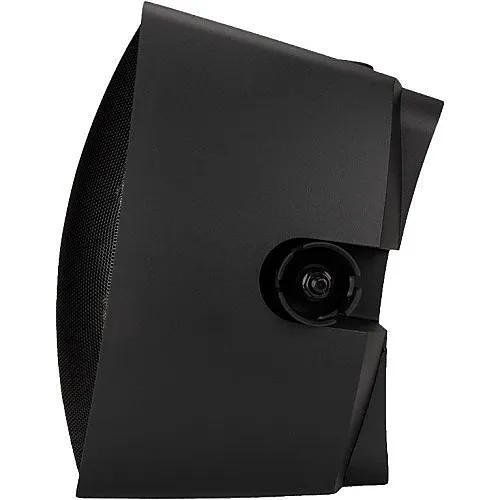

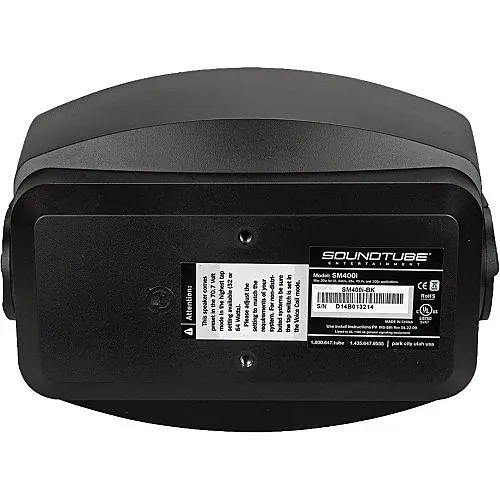

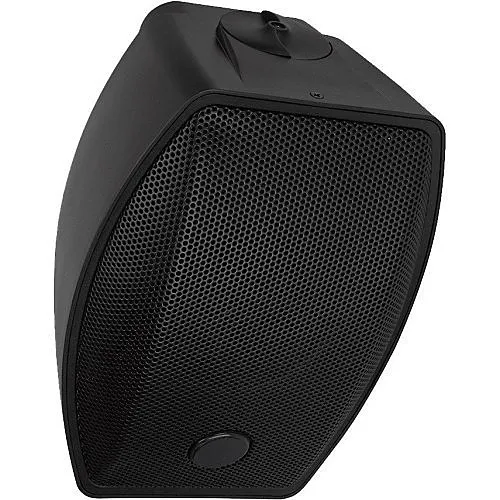

Product images for SoundTube SM400I-BK 4" Coaxial Ported Surface Mount Speaker, 2-10 kHz, Black. 4 image(s) available. Click on image to view full size.

Key Features

  • Consistent high-frequency coverage up to 10 kHz for clear paging and voice intelligibility across large spaces
  • Low-profile, corrosion-resistant Stealth™ U-bracket and tamper‑resistant hardware for secure, vandal-resistant installations
  • Weatherized, ported enclosure and included port plugs for reliable indoor/outdoor use and reduced maintenance
  • Flexible 5-position tap switch (25/70.7/100V) with transformer bypass simplifies inventory and system integration
  • Compact 4" coaxial driver delivers balanced sound with 20W RMS power and 86 dB sensitivity for efficient, cost-effective coverage

Quick Specifications

Product Model
SM400i
Brand Name
SoundTube
Product Name
SM400i Speaker
Product Type
Speaker
View Full Technical Specifications

Explore the details

Product information

SM400I-BK

Overview

Deliver intelligible paging and reliable background audio with the SoundTube SM400i 4" coaxial ported surface mount speaker. Engineered for commercial security and monitoring environments, the SM400i provides consistent dispersion from 2–10 kHz (independently verified) so announcements, alarms and voice prompts remain clear throughout retail, transportation, and surveillance areas. The coaxial 4" woofer and 1" tweeter combination, along with 20W RMS handling and 86 dB sensitivity, gives punchy, accurate sound from a discreet, low‑profile enclosure.

Designed for installers and system integrators, the corrosion- and theft-resistant Stealth™ U-bracket and tool-free, one-way fasteners speed secure mounting in both indoor and outdoor applications (IP4X). Weatherized components, included port plugs, Euroblock connector and a five-position tap switch (25/70.7/100V with transformer bypass) simplify deployment and stocking for multi-site projects. Ideal for security, surveillance, paging and monitoring systems that require dependable audio coverage with minimal visual impact. Add the SoundTube SM400i to your next public address or security audio design—contact sales or order online to streamline installation.

Features

  • Consistent high-frequency coverage up to 10 kHz for clear paging and voice intelligibility across large spaces
  • Low-profile, corrosion-resistant Stealth™ U-bracket and tamper‑resistant hardware for secure, vandal-resistant installations
  • Weatherized, ported enclosure and included port plugs for reliable indoor/outdoor use and reduced maintenance
  • Flexible 5-position tap switch (25/70.7/100V) with transformer bypass simplifies inventory and system integration
  • Compact 4" coaxial driver delivers balanced sound with 20W RMS power and 86 dB sensitivity for efficient, cost-effective coverage
30 of 30 specifications
Technical specifications for SoundTube SM400I-BK 4" Coaxial Ported Surface Mount Speaker, 2-10 kHz, Black
General Information
Brand Name SoundTube
Manufacturer SoundTube
Product Name SM400i Speaker
Product Type Speaker
Product Model SM400i
Product Series SMi
Application/Usage Indoor, Outdoor
Country of Origin CN
Manufacturer Part Number SM400I-BK
Technical Information
Impedance 4.00O
Sensitivity 86.0dB
Speaker Size 4.00"
Crossover Type 1-way
Audio
Maximum Frequency Response 22.0kHz
Minimum Frequency Response 76.0000Hz
Certifications
Energy Star No
TAA Compliant No
Physical Characteristics
Size 4"
Color Black
Height 7.00"
Weight 5.30lb
Material PP
Durability Corrosion Resistant
Enclosure Type Ported
Product Information
Diameter 9.70"
Installation Type Commercial
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Clean installation, Easy, Fast, Lightweight
Indoor/Outdoor Indoor, Outdoor
Environmentally Friendly Yes
