Lantronix SM48TAT4XA-RP-EU 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single

SKU: SM48TAT4XA-RP-EU Lantronix

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

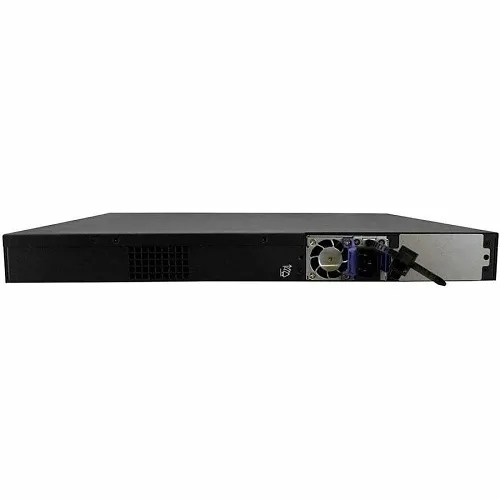

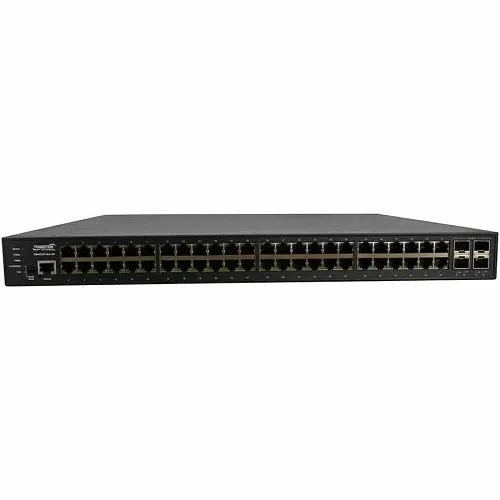

Image of P6-SM8XARPEU
Product images for Lantronix SM48TAT4XA-RP-EU 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Power large IP device deployments with an 820W PoE+ budget to run cameras, access points and VoIP phones without additional injectors.
  • Scale and future-proof your backbone with four 1G/10G SFP+ uplinks for high-speed aggregation to servers and NVRs.
  • Secure, segmented networks with Layer 3 routing, 802.1X, ACLs and VLAN support to protect surveillance and monitoring traffic.
  • Enterprise-grade manageability and diagnostics for remote monitoring, QoS and traffic control to prioritize critical security streams.
  • TAA-compliant, energy-efficient design with hot-swappable components and lifetime warranty for procurement confidence and long-term reliability.

Quick Specifications

Product Model
SM48TAT4XA-RP
Brand Name
Lantronix
Product Name
SM48TAT4XA-RP Ethernet Switch
Product Type
Ethernet Switch
View Full Technical Specifications

Explore the details

Product information

SM48TAT4XA-RP-EU

Overview

Deploy and manage large security, surveillance and enterprise networks with confidence using the Lantronix SM48TAT4XA-RP 48-Port Gigabit PoE+ Switch. This managed network switch combines 48 PoE+ copper ports and four dual-speed 1G/10G SFP+ uplinks to power and aggregate IP cameras, wireless APs and monitoring appliances while preserving backbone throughput. With an 820W PoE budget, Layer 3 routing, VLAN/ACL enforcement and 802.1X authentication, the Lantronix switch secures sensitive video and telemetry traffic and enforces segmentation for compliance and resilience. Built for IT and physical security teams, the switch supports advanced features like jumbo frames, IEEE 1588v2 timing and energy-efficient Ethernet to optimize performance and cost. Hot-swappable components, TAA compliance and a lifetime limited warranty simplify procurement and reduce operational risk. Ideal for security integrators, enterprise IT and multi-site deployments, the SM48TAT4XA-RP delivers the power, uplink capacity and management tools needed for high-availability surveillance and monitoring systems. Contact sales or add to cart to upgrade your network backbone today.

Features

  • Power large IP device deployments with an 820W PoE+ budget to run cameras, access points and VoIP phones without additional injectors.
  • Scale and future-proof your backbone with four 1G/10G SFP+ uplinks for high-speed aggregation to servers and NVRs.
  • Secure, segmented networks with Layer 3 routing, 802.1X, ACLs and VLAN support to protect surveillance and monitoring traffic.
  • Enterprise-grade manageability and diagnostics for remote monitoring, QoS and traffic control to prioritize critical security streams.
  • TAA-compliant, energy-efficient design with hot-swappable components and lifetime warranty for procurement confidence and long-term reliability.
34 of 34 specifications
Technical specifications for Lantronix SM48TAT4XA-RP-EU 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single
General Information
Brand Name Lantronix
Manufacturer Lantronix, Inc
Product Name SM48TAT4XA-RP Ethernet Switch
Product Type Ethernet Switch
Product Model SM48TAT4XA-RP
Product Series SM48TAT4XA-RP
Manufacturer Part Number SM48TAT4XARPEU
Technical Information
Power Consumption 15.4000W
Media Type Supported Optical Fiber, Twisted Pair
Certifications
TAA Compliant Yes
I/O Expansions
Shared SFP Slot No
Expansion Slot Type SFP+
Number of SFP+ Slots 4
Number of Total Expansion Slots 4
Interfaces/Ports
Modular Yes
Network (RJ-45) Yes
Total Number of Network Ports 48
Management & Protocols
Manageable Yes
Media & Performance
Network Technology 10/100/1000Base-T, 10GBase-X
Network & Communication
Layer Supported 3
Ethernet Technology 10 Gbps
Networking Standards IEEE 802.1ad, IEEE 802.1p, IEEE 802.3ad
Physical Characteristics
Depth 14.80"
Width 17.40"
Height 1.70"
Power Description
PoE Budget 820.0W
Power Source PoE (Power over Ethernet)
Input Voltage 100-240V AC
PoE (RJ-45) Port Yes
Warranty
Limited Warranty Lifetime
Miscellaneous
Features Hot-swappable
Package Contents SM48TAT4XA-RP Ethernet Switch1 x AC Power Supply1 x 19" Rack Mount BracketPower Cord Europe
Environmentally Friendly Yes
Environmental Certification REACH, RoHS, WEEE

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
SM48TAT4XA-RP-EU
Manufacturer part:
SM48TAT4XA-RP-EU
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

Lantronix SM48TAT4XA-RP-EU 48-Port Gigabit POE+ Switch with (4) 1G/10G SFP+, Single

SM48TAT4XA-RP-EU

Price & options
