SoundTube SM52-EZ-WX-WH 5.25" Extreme Weather Outdoor Surface Mount Speaker, White

SKU: SM52-EZ-WX-WH SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of 9W-SM52EZWXW

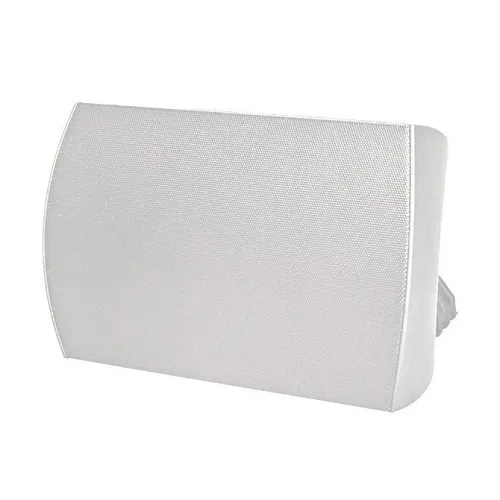

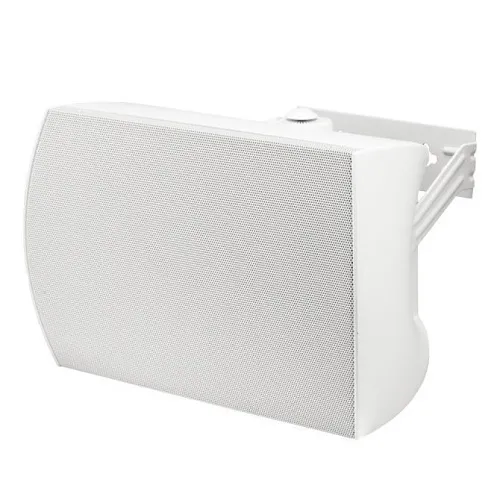

Product images for SoundTube SM52-EZ-WX-WH 5.25" Extreme Weather Outdoor Surface Mount Speaker, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Reliable outdoor audio for music and paging with clear speech intelligibility, even off-axis, to improve site-wide communication and safety.
  • IP65 weather extreme rated construction with powder-coated aluminum grille and port plug for long-term use in harsh environments.
  • Flexible installation and system integration with 32W transformer, 6-position tap switch (25.5V, 70.7V, 100V) and 8Ω bypass for low- or high-impedance setups.
  • Dedicated 5.25" polypropylene woofer and 1" soft-dome tweeter with BroadBeam Ring for balanced sound from background music to foreground paging at up to 100 dB.
  • Included mounting hardware, safety cable, conduit connector and ceramic terminal strip simplify installation for security, surveillance and monitoring projects.

Quick Specifications

Product Model
SM52-EZ-WX-WH
Brand Name
SoundTube
Manufacturer Part Number
SM52-EZ-WX-WH
View Full Technical Specifications

Product Information Tabs

Overview

Deliver dependable outdoor audio where clear paging, background music and public announcements matter most. The SoundTube SM52-EZ-WX-WH pro speaker is a surface-mount outdoor solution engineered for integrators and facilities that require weatherproof, intelligible sound for security, surveillance and monitoring installations. Its dedicated 5.25" polypropylene woofer paired with a 1" soft-dome tweeter and BroadBeam Ring technology provides even coverage and superb speech clarity up to 100 dB, reducing the need for extra speakers.

Designed for harsh environments, the SM52-EZ-WX carries an IP65 rating to resist dust and water jets, and comes with a powder-coated aluminum grille and mounting hardware for fast, reliable deployment. The onboard 32W transformer and 6-position tap switch support 25.5V, 70.7V and 100V systems with an 8Ω bypass, while ceramic terminals make it compatible with voice-evacuation systems. Ideal for perimeter paging, parking facilities, campuses and retail exteriors, this SoundTube outdoor pro speaker balances performance, durability and installation flexibility. Specify the SM52-EZ-WX-WH for robust outdoor audio—order now to upgrade your site's communication and monitoring capabilities.

Features

  • Reliable outdoor audio for music and paging with clear speech intelligibility, even off-axis, to improve site-wide communication and safety.
  • IP65 weather extreme rated construction with powder-coated aluminum grille and port plug for long-term use in harsh environments.
  • Flexible installation and system integration with 32W transformer, 6-position tap switch (25.5V, 70.7V, 100V) and 8Ω bypass for low- or high-impedance setups.
  • Dedicated 5.25" polypropylene woofer and 1" soft-dome tweeter with BroadBeam Ring for balanced sound from background music to foreground paging at up to 100 dB.
  • Included mounting hardware, safety cable, conduit connector and ceramic terminal strip simplify installation for security, surveillance and monitoring projects.
General Information
Brand Name SoundTube
Manufacturer Part Number SM52-EZ-WX-WH
Audio
Maximum Frequency Response 22 kHz
Minimum Frequency Response 82 Hz
Physical Characteristics
Color White
Width 7.5"
Height 11.88"
Miscellaneous
Features Aluminum grille with powder-coat finish, High-quality black or white paint finish, One 5.25" (133 mm) polypropylene woofer and one 1" (25.4 mm) soft dome tweete, The SM52-EZ-WX is a cost-conscious, weatherresistant, surface-mount loudspeaker
Package Contents Back Cover, Mounting Hardware, Port Plug, Safety Cable, Wire Gland
Environmentally Friendly Yes
Environmental Certification CE, RoHS, UL
