SoundTube SM82-EZ-II-WX-BK 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker, Black

SKU: SM82-EZ-II-WX-BK SoundTube

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

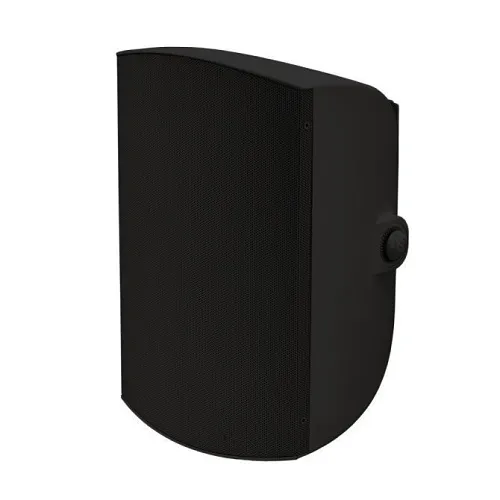

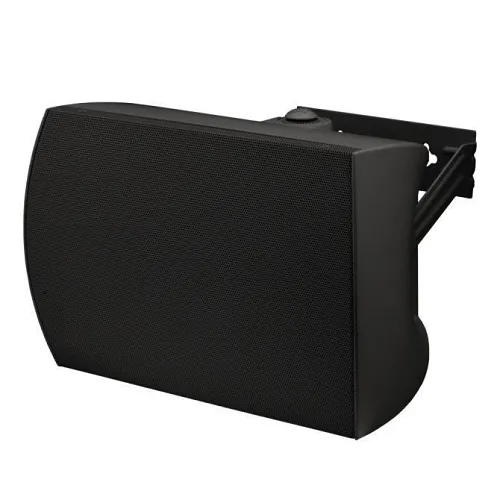

Image of 9W-SM82EZIXB
Product images for SoundTube SM82-EZ-II-WX-BK 8" 2-Way Extreme Weather Outdoor Surface Mount Speaker, Black. 3 image(s) available. Click on image to view full size.

Key Features

  • Weatherproof reliability (IP65) protects speakers in outdoor and harsh environments, reducing maintenance and downtime.
  • Clear, intelligible audio for security, paging and monitoring with an 8" polypropylene woofer and 1" soft-dome tweeter for up to 106 dB SPL.
  • Flexible 25/70.7/100V taps and transformer bypass simplify integration into distributed public-address and surveillance audio networks.
  • High sensitivity (87 dB) delivers strong output with less amplification, cutting system cost and power needs.
  • Tool-free Stealth bracket and vertical/horizontal aiming speed up installation and enable precise coverage for plazas, parking lots, and campuses.
  • Rugged aluminum grille and UL 1480A certification ensure code-compliant, long-lasting performance for pro audio and security applications.

Quick Specifications

Product Model
SM82-EZ-II-WX-BK
Brand Name
SoundTube
Packaged Quantity
1
Manufacturer Part Number
SM82-EZ-II-WX-BK
View Full Technical Specifications

Product Information Tabs

Overview

Deliver consistent, intelligible outdoor audio where it matters most — from campus security and perimeter monitoring to retail plazas and transit hubs. The SoundTube SM82-EZ-II-WX is a pro speaker engineered for demanding outdoor and distributed paging applications. Its dedicated 8" polypropylene woofer and offset 1" soft-dome tweeter with waveguide provide clear voice reproduction and music playback with up to 106 dB max SPL, while IP65 weather protection and a powder-coated aluminum grille stand up to dust and water exposure.

Designed for integrators, the SM82-EZ-II-WX offers a six-position tap switch (25/70.7/100V) plus transformer bypass for seamless integration into 70V/100V public-address and surveillance audio systems. High 87 dB sensitivity reduces amplifier load and overall system cost, and the low-profile, tool-free Stealth bracket allows quick, precise aiming for optimal coverage. UL 1480A approval and RoHS/CE compliance simplify specification for commercial security, paging and monitoring projects.

Specify the SoundTube SM82-EZ-II-WX outdoor surface-mount speaker when you need durable, high-intelligibility audio for security, surveillance, and customer-facing applications. Contact us to configure units for your site or add to your next install.

Features

  • Weatherproof reliability (IP65) protects speakers in outdoor and harsh environments, reducing maintenance and downtime.
  • Clear, intelligible audio for security, paging and monitoring with an 8" polypropylene woofer and 1" soft-dome tweeter for up to 106 dB SPL.
  • Flexible 25/70.7/100V taps and transformer bypass simplify integration into distributed public-address and surveillance audio networks.
  • High sensitivity (87 dB) delivers strong output with less amplification, cutting system cost and power needs.
  • Tool-free Stealth bracket and vertical/horizontal aiming speed up installation and enable precise coverage for plazas, parking lots, and campuses.
  • Rugged aluminum grille and UL 1480A certification ensure code-compliant, long-lasting performance for pro audio and security applications.
General Information
Brand Name SoundTube
Packaged Quantity 1
Manufacturer Part Number SM82-EZ-II-WX-BK
Audio
Maximum Frequency Response 20 kHz, 22 kHz
Minimum Frequency Response 38 Hz, 50 Hz
Physical Characteristics
Color Black
Width 11.65"
Height 18.78"
Package Type Box
Power Description
Power Source 4 Pin Ceramic Terminal
Product Information
Mount Type Surface
Miscellaneous
Environmentally Friendly Yes
Environmental Certification CE, RoHS, UL
