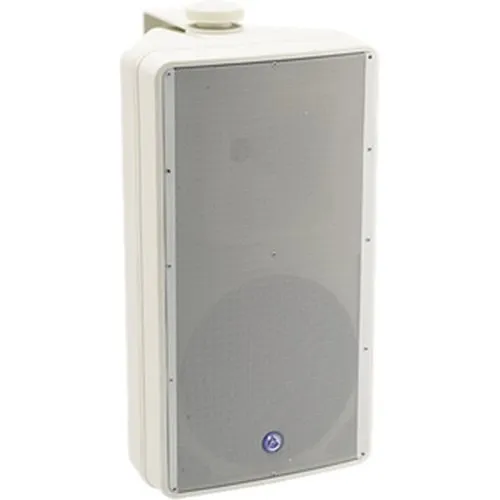

AtlasIED SM82T-WH 8" 2-Way All Weather Speaker with 60W 70V, 100V Transformer Pair, White
Image of 2
Key Features
- Reliable outdoor performance: weather-resistant polypropylene cabinet, powder-coated grille and brass hardware ensure long-term, year-round operation in exposed environments
- Clear voice and music reproduction: AtlasIED TRX WaveGuide with 1" compression driver and 8" woofer delivers intelligible paging and balanced music for security and public address
- Distributed sound ready: internally mounted 60W selectable 70.7/100V transformer with 8Ω bypass simplifies multi-speaker installations and system design
- Protection and durability: PolyGuard transient protection and ASTM B117 100-hour salt spray compliance reduce maintenance and downtime in coastal or harsh sites
- Flexible mounting and integration: C-bracket, OMNIMOUNT compatibility and standard 1/4"-20 inserts speed installation and support vandal-proof hardware
- Designed for security & surveillance: high sensitivity (92 dB) and precise coverage help monitoring, perimeter paging, and background music applications
Quick Specifications
- Product Model
- SM82T-WH
- Brand Name
- AtlasIED
- Product Line
- Strategy
- Product Name
- Strategy Series Surface Mount Loudspeaker System
Explore the details
Product information
SM82T-WH
Overview
Deliver reliable, intelligible audio where it matters most — outdoors and in mission-critical security spaces. The AtlasIED SM82T-WH 2-way all-weather speaker is engineered for clear paging, perimeter monitoring and surveillance support with a focused TRX WaveGuide high-frequency director and an 8in treated woofer for consistent coverage. An internally mounted, screwdriver-selectable 60W 70.7/100V line transformer (with 8Ω bypass) makes this speaker ideal for distributed 70V systems, while 92 dB sensitivity ensures efficient output from each zone.
Built for installers and facility managers, the SM82T-WH combines weather-resistant IMPP cabinet materials, powder-coated aluminum grille and brass hardware with PolyGuard protection to minimize service calls in harsh conditions. Versatile mounting options — including the supplied C-bracket, OMNIMOUNT-compatible inserts and standard 1/4-20 hardware — speed deployment for outdoor paging, emergency notification or integrated security audio systems.
Specify the AtlasIED SM82T-WH when you need dependable outdoor sound for security, surveillance and public address. Contact your supplier or add to cart to secure durable, high-clarity audio for your next monitoring or paging project.
Features
- Reliable outdoor performance: weather-resistant polypropylene cabinet, powder-coated grille and brass hardware ensure long-term, year-round operation in exposed environments
- Clear voice and music reproduction: AtlasIED TRX WaveGuide with 1" compression driver and 8" woofer delivers intelligible paging and balanced music for security and public address
- Distributed sound ready: internally mounted 60W selectable 70.7/100V transformer with 8Ω bypass simplifies multi-speaker installations and system design
- Protection and durability: PolyGuard transient protection and ASTM B117 100-hour salt spray compliance reduce maintenance and downtime in coastal or harsh sites
- Flexible mounting and integration: C-bracket, OMNIMOUNT compatibility and standard 1/4"-20 inserts speed installation and support vandal-proof hardware
- Designed for security & surveillance: high sensitivity (92 dB) and precise coverage help monitoring, perimeter paging, and background music applications
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Line | Strategy |
| Product Name | Strategy Series Surface Mount Loudspeaker System |
| Product Type | Speaker |
| Product Model | SM82T-WH |
| Product Series | SM |
| Manufacturer Part Number | SM82T-WH |
| Technical Information | |
| Material | Aluminum, Brass, Cloth, IMPP, Zinc |
| Impedance | 8 ohms |
| Sensitivity | 92dB |
| Speaker Size | 8" |
| Crossover Type | 2-way |
| Audio | |
| RMS Output Power | 150W |
| Number of Speakers | 1 |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 65Hz |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Size | 8" |
| Color | White |
| Depth | 8.44" |
| Width | 9.1" |
| Height | 16.5" |
| Durability | Weather Resistant |
| Product Information | |
| Mount Type | Surface Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Indoor/Outdoor | Outdoor |
| Country of Origin | CN |
