AtlasIED SM82TUC-B 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer,UL Certified, Black

SKU: SM82TUC-B AtlasIED

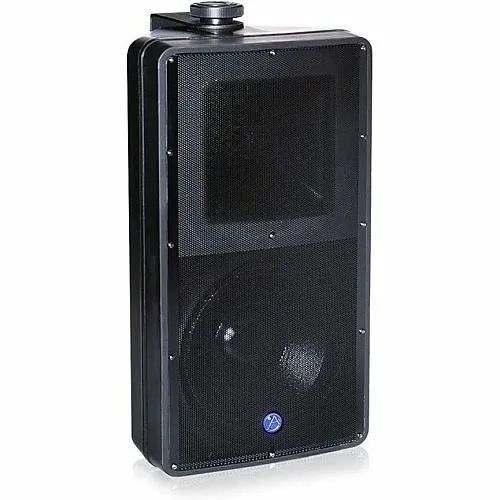

Image of AT-SM82TUCB
Product images for AtlasIED SM82TUC-B 8" 2-Way All Weather Speaker with 60-Watt 70V/100V Transformer,UL Certified, Black. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable voice intelligibility and music performance for paging, background music, and security monitoring in retail, corporate, or house-of-worship environments
  • Durable, all-weather construction (UV-resistant PC/ABS, powder-coated grille, brass hardware) for long-term outdoor and indoor use
  • Flexible distributed audio with screwdriver-selectable 60W 70V/100V transformer taps and 8" high-efficiency woofer for consistent coverage
  • TRX WaveGuide™ and POLYGUARD™ protection deliver even high-frequency dispersion and safeguard the tweeter from transients
  • Easy surface-mount installation with included C-bracket and conduit-ready input cover for fast deployment and tamper-resistant hookups

Quick Specifications

Product Model
SM82TUC-B
Brand Name
AtlasIED
Product Line
Strategy
Product Name
Strategy Series Surface Mount Loudspeaker System
View Full Technical Specifications

Product Information Tabs

Overview

When dependable voice paging, background music and security monitoring are critical, the AtlasIED SM82TUC-B delivers consistent, high-quality sound in any indoor or outdoor installation. This AtlasIED Strategy series 2-way pro speaker combines an efficient 8" HYCONE-treated woofer with a 1" titanium compression driver and the TRX WaveGuide™ for even coverage and excellent vocal clarity across large spaces. With screwdriver-selectable 60W transformer taps (70V/100V) and 92 dB sensitivity, the SM82TUC-B fits distributed audio and paging systems while preserving intelligibility for surveillance and emergency notification applications. Built to withstand harsh environments, the UL1480-certified enclosure uses UV-resistant PC/ABS, powder-coated aluminum grille, brass hardware and a conduit-ready cover to protect connections. Integrated POLYGUARD™ protects the high-frequency driver from transients, reducing downtime and maintenance costs. Ideal for retail stores, restaurants, corporate facilities, houses of worship and outdoor venues, this surface-mount speaker includes a versatile C-bracket for quick mounting and optional tamper-proof hardware. Add the AtlasIED SM82TUC-B to your security, surveillance or distributed audio project for a rugged, high-performance solution — contact sales or order now to specify units for your deployment.

Features

  • Reliable voice intelligibility and music performance for paging, background music, and security monitoring in retail, corporate, or house-of-worship environments
  • Durable, all-weather construction (UV-resistant PC/ABS, powder-coated grille, brass hardware) for long-term outdoor and indoor use
  • Flexible distributed audio with screwdriver-selectable 60W 70V/100V transformer taps and 8" high-efficiency woofer for consistent coverage
  • TRX WaveGuide™ and POLYGUARD™ protection deliver even high-frequency dispersion and safeguard the tweeter from transients
  • Easy surface-mount installation with included C-bracket and conduit-ready input cover for fast deployment and tamper-resistant hookups
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Strategy
Product Name Strategy Series Surface Mount Loudspeaker System
Product Type Speaker
Product Model SM82TUC-B
Product Series SM
Manufacturer Part Number SM82TUCB
Technical Information
Material Treated Paper
Impedance 8 ohms
Sensitivity 92dB
Speaker Size 8"
Crossover Type 2-way
Application/Usage Corporate, House of Worship, Music, Restaurant, Retail
Audio
RMS Output Power 150W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 65Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Physical Characteristics
Size 8"
Color Black
Depth 8.43"
Width 9"
Height 16.5"
Durability UV Resistant, Weather Resistant
Product Information
Mount Type Surface Mount
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Highly Efficient
Indoor/Outdoor Indoor, Outdoor
Package Contents Strategy SM82T-B Speaker C Bracket Grill
Country of Origin CN
