Eaton Tripp Lite SMART1500LCD SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, 2U Rack/tower, LCD, USB, DB9 Serial, Outlets

SKU: SMART1500LCD Eaton Tripp Lite

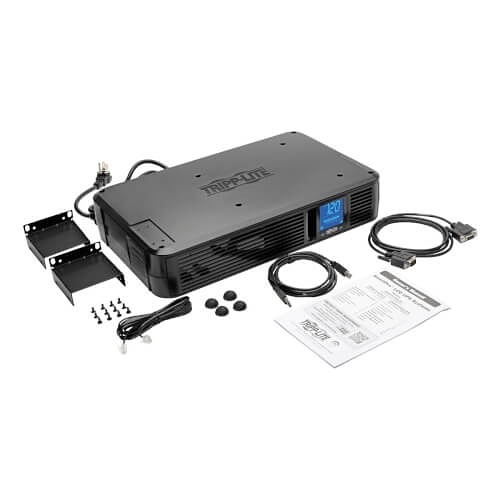

Image of TC-SMT1500LC
Product images for Eaton Tripp Lite SMART1500LCD SmartPro LCD 120V 1500VA 900W Line-Interactive UPS, AVR, 2U Rack/tower, LCD, USB, DB9 Serial, Outlets. 10 image(s) available. Click on image to view full size.

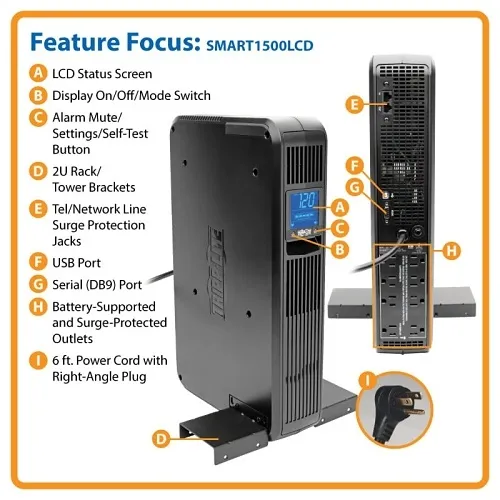

Key Features

  • Keeps critical systems online to prevent data loss and downtime with 1500VA/900W backup power
  • Automatic Voltage Regulation (AVR) stabilizes brownouts and surges so battery life is preserved for real outages

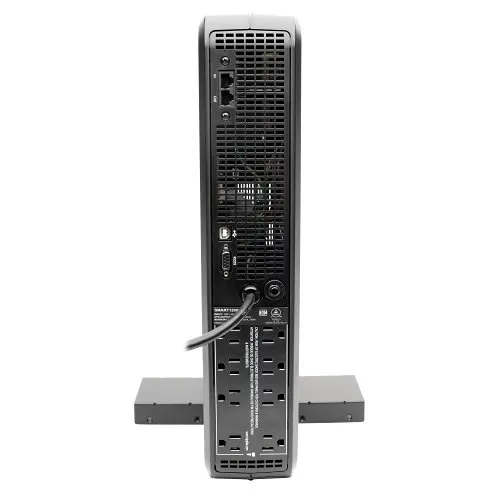

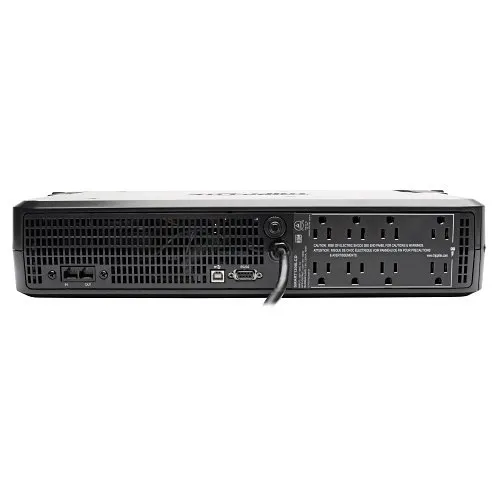

  • Eight protected NEMA 5-15R outlets plus 480J surge suppression protect servers, network gear, and surveillance DVRs

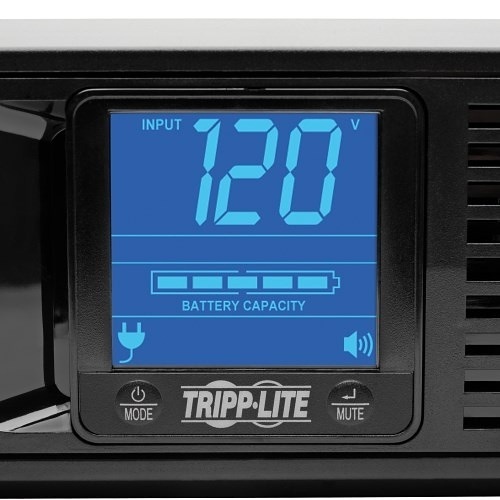

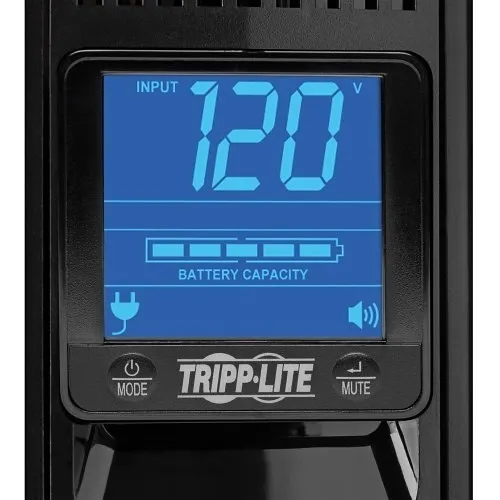

  • Rotatable LCD and USB/DB9 connectivity deliver real-time monitoring and automated, graceful shutdowns for monitoring and security systems

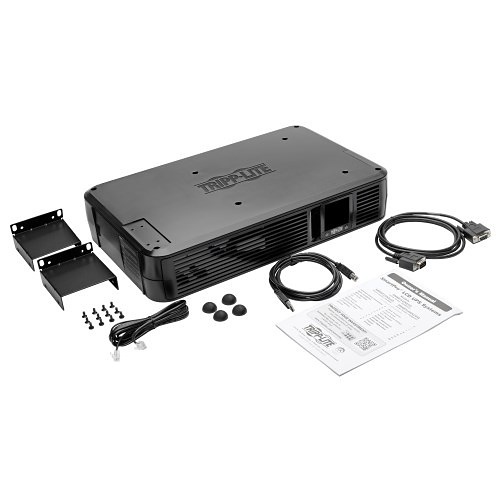

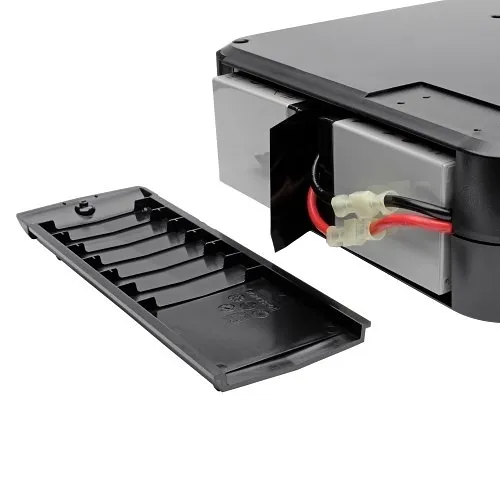

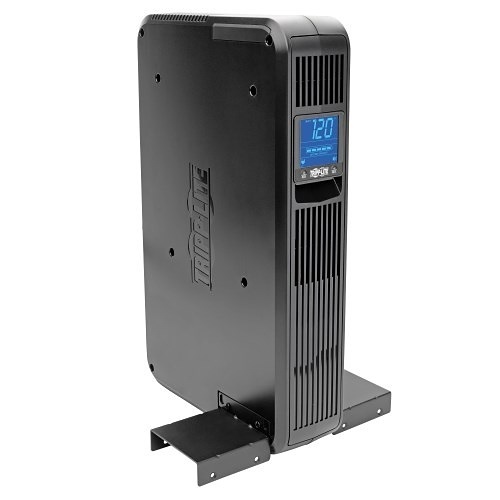

  • 2U rack or tower form factor with hot-swappable batteries for easy maintenance and continuous operation in data closets and security rooms

Quick Specifications

Sector
Data Comm & Networking
Brand Name
Eaton Tripp Lite
Manufacturer
Eaton
Product Line
SmartPro
View Full Technical Specifications

Product Information Tabs

Overview

Protect critical IT, security and surveillance equipment with the Eaton Tripp Lite SMART1500LCD SmartPro UPS. This line-interactive UPS delivers dependable 1500VA / 900W battery backup so you can save files, maintain recordings and gracefully shut down servers, DVRs and network devices during outages. Built-in Automatic Voltage Regulation (AVR) corrects undervoltage/overvoltage conditions without tapping the battery, extending run-time for true emergencies. The SMART1500LCD provides up to roughly 11.8 minutes at half load (450W) and several minutes at full load (900W), plus 480 joules of surge suppression to shield sensitive electronics from spikes and line noise. A large rotatable LCD and ENERGY STAR efficiency help you monitor input/output status and reduce operating costs, while USB and DB9 ports integrate with PowerAlert software for automated shutdown and remote monitoring. Rackmount-ready at 2U or convertible to tower, it fits server rooms, network closets and security installations. Ideal for IT managers, integrators and security teams—add the SMART1500LCD UPS to your infrastructure to secure servers, networking equipment and surveillance systems today.

Features

  • Keeps critical systems online to prevent data loss and downtime with 1500VA/900W backup power
  • Automatic Voltage Regulation (AVR) stabilizes brownouts and surges so battery life is preserved for real outages
  • Eight protected NEMA 5-15R outlets plus 480J surge suppression protect servers, network gear, and surveillance DVRs
  • Rotatable LCD and USB/DB9 connectivity deliver real-time monitoring and automated, graceful shutdowns for monitoring and security systems
  • 2U rack or tower form factor with hot-swappable batteries for easy maintenance and continuous operation in data closets and security rooms
General Information
Sector Data Comm & Networking
Brand Name Eaton Tripp Lite
Manufacturer Eaton
Product Line SmartPro
Product Name SmartPro 1500 VA Rackmount/Tower Digital UPS
Product Type Line-interactive UPS
Product Model SMART1500LCD
Packaged Quantity 1
Manufacturer Part Number SMART1500LCD
Technical Information
Transfer Time 4-Millisecond
Output Voltage 120V AC
Receptacle Type NEMA 5-15R
Number of Outlets 8
Receptacle Detail 8 x NEMA 5-15R
Dataline Protection RJ-45
Backup/Run Time (Full Load) 3.5-Minute
Backup/Run Time (Half Load) 13-Minute
Battery Information
Battery Recharge Time 8-Hour
Environmental Conditions
Maximum Operating Temperature 122°F (50°C)
Interfaces/Ports
Serial Port Yes
Network (RJ-45) Yes
Physical Characteristics
Color Black
Depth 10.5"
Width 3.5"
Height 17.3"
Weight 29lb
Form Factor Tower
Rack Height 2U
Power Description
Power Rating 1500VA
Input Voltage 110V AC
Waveform Type Pulse-width Modulated Sine Wave
Plug/Connector Type NEMA 5-15P
Surge Energy Rating 480 J
Warranty
Limited Warranty 2-Year
Miscellaneous
Country of Origin CN
