Eaton Tripp Lite SMART5000XFMRXL SmartPro Line-Interactive Sine Wave UPS, 208 and 120V 5kVA 3.75kW, 3U, Extended Run, Network Card Options, USB, DB9
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 6
Key Features
- Ensure continuous, clean sine-wave power for critical servers, security and surveillance equipment to prevent downtime and data loss.
- Dual 208V and 120V simultaneous outputs let you power mixed rack and peripheral loads from a single UPS for simplified deployment.
- Expandable runtime with optional external battery packs keeps networking, telecommunications and monitoring systems online through extended outages.
- Network management and monitoring via USB, DB9 and SNMP card slot enable remote alerts, logs and centralized power control for IT teams.
- Hot-swappable, field-replaceable batteries minimize service disruption and simplify maintenance in 3U rack or tower installations.
- Integrated surge/noise suppression and metered outlets protect sensitive gear and provide clear load/battery status for fast diagnostics.
Quick Specifications
- Product Model
- SMART5000XFMRXL
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartPro
- Product Name
- SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS
Frequently Bought Together
Eaton Tripp Lite SMART5000XFMRXL SmartPro Line-Interactive Sine Wave UPS, 208 and 120V 5kVA 3.75kW, 3U, Extended Run, Network Card Options, USB, DB9
$5,069.12
9 items selected
Total: $9,245.88
Explore the details
Product information
SMART5000XFMRXL
Overview
Protect your servers, network gear and security systems with the Eaton Tripp Lite SMART5000XFMRXL SmartPro UPS — a robust line-interactive solution designed for enterprise IT, surveillance and telecommunications environments. Delivering 5kVA (3.75kW) of true sine-wave output with simultaneous 208V and 120V outlets, this 3U rack/tower UPS stabilizes brownouts and overvoltages while keeping critical monitoring and network equipment operational during blackouts. Expand runtime easily with optional external battery packs and perform maintenance without interruption thanks to hot-swappable internal batteries. Network-grade surge suppression and a slot for SNMP network management cards plus USB and DB9 interfaces provide real-time monitoring, alerts and remote control—ideal for distributed security, NVRs, switches and server racks. With integrated metered outlets, Emergency Power Off (EPO) support and PowerAlert software compatibility, the SMART5000XFMRXL simplifies power management and reduces risk to your infrastructure. Deploy this Eaton Tripp Lite UPS to secure your data center, telecom closet or surveillance system—contact sales to configure runtime options or add it to your cart for immediate protection.
Features
- Ensure continuous, clean sine-wave power for critical servers, security and surveillance equipment to prevent downtime and data loss.
- Dual 208V and 120V simultaneous outputs let you power mixed rack and peripheral loads from a single UPS for simplified deployment.
- Expandable runtime with optional external battery packs keeps networking, telecommunications and monitoring systems online through extended outages.
- Network management and monitoring via USB, DB9 and SNMP card slot enable remote alerts, logs and centralized power control for IT teams.
- Hot-swappable, field-replaceable batteries minimize service disruption and simplify maintenance in 3U rack or tower installations.
- Integrated surge/noise suppression and metered outlets protect sensitive gear and provide clear load/battery status for fast diagnostics.
| General Information | |
|---|---|
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Tripp Lite |
| Product Line | SmartPro |
| Product Name | SmartPro Series SMART5000XFMRXL 5000VA Tower/Rack Mountable UPS |
| Product Type | Line-interactive UPS |
| Product Model | SMART5000XFMRXL |
| Country of Origin | TW |
| Manufacturer Part Number | SMART5000XFMRXL |
| Technical Information | |
| Hot Swappable | Yes |

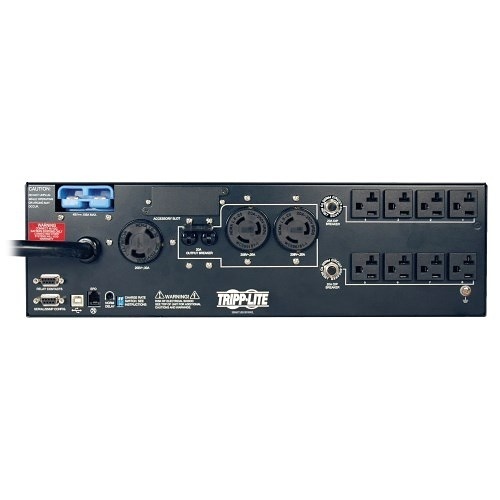

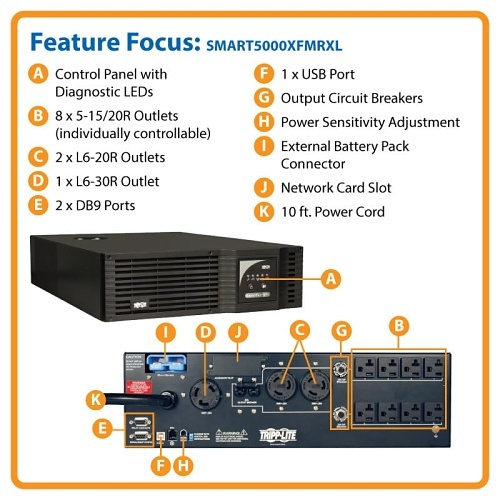

| Receptacle Type | NEMA 5-15/20R, NEMA L6-20R, NEMA L6-30R |
| Receptacle Detail | 1 x NEMA L6-30R, 2 x NEMA L6-20R, 8 x NEMA 5-15/20R |
| Software Included | Yes |
| Battery Information | |
| Battery Chemistry | Sealed Lead Acid (VRLA) |
| Battery Characteristics | Maintenance-free |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Depth | 25.00" |
| Width | 18.00" |
| Form Factor | Tower |
| Rack Height | 3U |
| Power Description | |
| Input Voltage | 208V |
| Waveform Type | Pure Sine Wave |

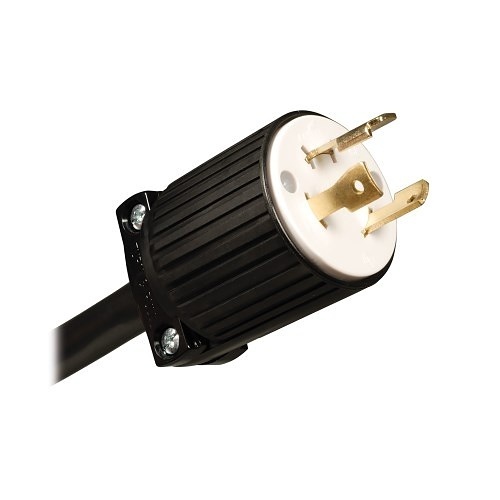

| Plug/Connector Type | NEMA L6-30P |
| Warranty | |
| Limited Warranty | 2-Year |
