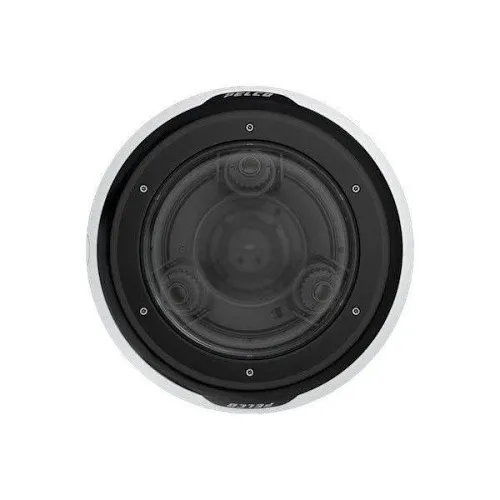

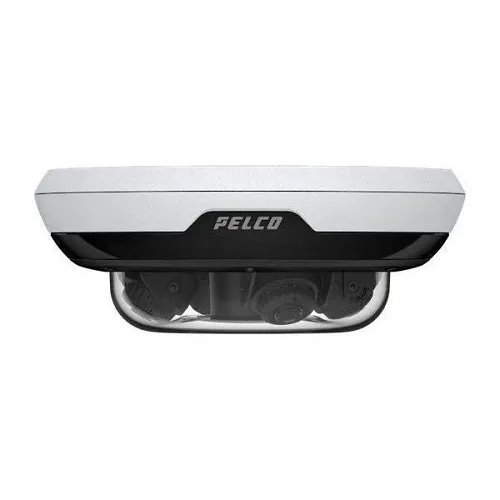

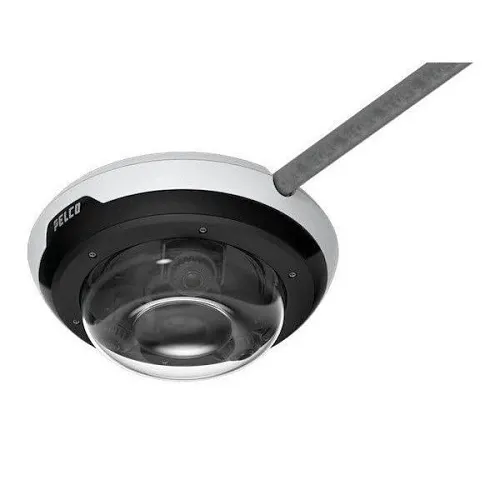

Pelco SMLE1-15V5-3H Sarix Multi Enhanced Analytics Camera Base Module, 3x5MP, WDR, 270 Degree Max Field of View, SureVision, 3.3-5.7mm
Key Features
- Deliver wide-area situational awareness from a single mount to reduce camera count and lower installation costs
- Built-in analytics improve detection and classification so security teams respond faster with fewer false alarms
- 15MP panoramic imaging with WDR and 270° max field of view for clear identification in challenging light
- Varifocal 3.3–5.7mm lenses and configurable sensors let you tailor coverage to critical zones
- Rugged IP66/67, IK10 and NEMA 4X ratings protect operations in harsh outdoor environments
- ONVIF and VMS interoperability with FIPS-compliant security provide seamless integration and regulatory-grade protection
Quick Specifications
- Product Model
- SMLE1-15V5-3H
- Brand Name
- Pelco by Motorola Solutions
- Product Line
- Sarix
- Product Series
- Sarix Multi Enhanced
Frequently Bought Together
Pelco SMLE1-15V5-3H Sarix Multi Enhanced Analytics Camera Base Module, 3x5MP, WDR, 270 Degree Max Field of View, SureVision, 3.3-5.7mm
$1,496.34
4 items selected
Total: $2,583.52
Explore the details
Product information
SMLE1-15V5-3H
Overview
Designed for large sites that need uncompromised coverage, the Pelco by Motorola Solutions Sarix Multi Enhanced analytics camera base module delivers multi-directional surveillance from a single vantage point. The Sarix Multi Enhanced panoramic camera combines 15MP effective resolution, WDR and a 270° maximum field of view to capture clear, actionable imagery across parking lots, campuses, transit hubs and critical infrastructure while reducing blind spots and total camera count. Built-in analytics provide advanced object detection and classification to prioritize alerts and reduce false positives, while H.265 compression and up to 40 fps help conserve bandwidth and storage. The varifocal 3.3–5.7mm lenses and configurable sensor layout let you tailor monitoring to entry points, perimeters or wide open areas. Engineered for real-world deployments, the unit meets IP66/67, IK10 and NEMA 4X standards and supports FIPS-compliant cryptography, Secure Boot and ONVIF profiles for secure VMS integration. Ideal for enterprise security, transportation and campus monitoring — contact your Pelco reseller to specify the Sarix Multi Enhanced for your next surveillance project.
Features
- Deliver wide-area situational awareness from a single mount to reduce camera count and lower installation costs
- Built-in analytics improve detection and classification so security teams respond faster with fewer false alarms
- 15MP panoramic imaging with WDR and 270° max field of view for clear identification in challenging light
- Varifocal 3.3–5.7mm lenses and configurable sensors let you tailor coverage to critical zones
- Rugged IP66/67, IK10 and NEMA 4X ratings protect operations in harsh outdoor environments
- ONVIF and VMS interoperability with FIPS-compliant security provide seamless integration and regulatory-grade protection
| General Information | |
|---|---|
| Brand Name | Pelco by Motorola Solutions |
| Product Line | Sarix |
| Product Series | Sarix Multi Enhanced |
| Manufacturer Part Number | SMLE1-15V5-3H |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.5 |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 40 fps |
| Minimum Focal Length | 3.3mm |
| Effective Camera Resolution | 15MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98' |
| Display & Graphics | |
| Maximum Video Resolution | 7776 x 1944 |
| Environmental Conditions | |
| Operating Humidity | 0-95% |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0 lux, 0.018, 0.020 |
| Longest Shutter Speed | 1/7.5 Second |
| Shortest Shutter Speed | 1/8000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.3-5.7mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.9 |
| Maximum Focal Length | 5.7mm |
| Power Description | |
| Input Voltage | 24V AC, 24V DC |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Environmental Certification | BIS, CE, cUL, KC, NOM, RCM, RoHS, UKCA, UL |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- SMLE1-15V5-3H
- Manufacturer part:
- SMLE1-15V5-3H
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
