APC SMX1000C 1000VA Smart-UPS X, Line Interactive, Rack Tower Convertible, 2U, 120V

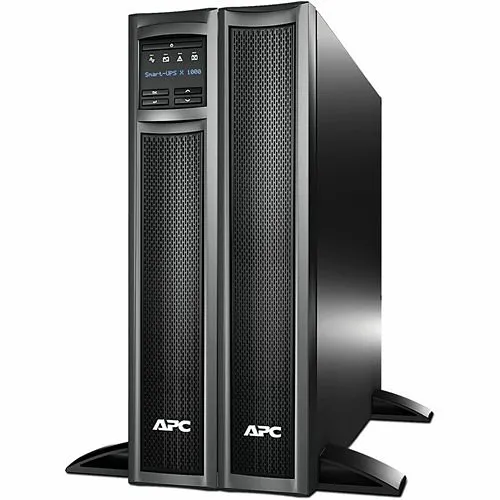

Image of 2G-SMX1000C
Product images for APC SMX1000C 1000VA Smart-UPS X, Line Interactive, Rack Tower Convertible, 2U, 120V. 3 image(s) available. Click on image to view full size.

Key Features

  • Keeps critical servers, security and network devices online during outages with 1000VA/900W backup power
  • Rack/tower 2U convertible design saves space and fits server rooms, network closets and edge deployments
  • Built-in AVR and sine-wave output provide clean, stable power to protect sensitive IT and surveillance equipment
  • Remote monitoring and management via SmartConnect, Network Management Card or EcoStruxure IT for proactive alerts
  • Eight NEMA 5-15R outlets with two switchable groups allow prioritized shutdown and extended runtime with external battery packs
  • ENERGY STAR certified with a 3-year warranty and equipment protection policy for reduced operational cost and peace of mind

Quick Specifications

Product Model
SMX1000C
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
Product Name
Smart-UPS SMX 1000VA Tower/Rack Convertible UPS
View Full Technical Specifications

Explore the details

Product information

SMX1000C

Overview

Keep critical IT, security and surveillance systems running through outages with APC by Schneider Electric's Smart-UPS SMX1000C line-interactive UPS. Designed for server rooms, network closets and edge computing sites, this 2U rack/tower convertible UPS delivers 1000VA/900W of conditioned power and automatic voltage regulation to protect sensitive equipment from brownouts and spikes. With a pure sine wave output and options for remote monitoring (SmartConnect, Network Management Card or EcoStruxure IT), you can manage runtime and receive alerts from anywhere—minimizing downtime for servers, VoIP, POS and security cameras.

The SMX1000C offers eight NEMA 5-15R outlets with two switchable groups for prioritized load control and provides approximately 8 minutes at full load and up to ~20 minutes at half load, with support for additional external battery packs to extend runtime as needed. ENERGY STAR certified and backed by a 3-year warranty plus equipment protection, it’s a reliable choice for businesses that need dependable backup power and centralized monitoring. Ideal for IT infrastructure, surveillance, and networking environments—add external batteries for extended protection or contact sales to configure your rack solution.

Features

  • Keeps critical servers, security and network devices online during outages with 1000VA/900W backup power
  • Rack/tower 2U convertible design saves space and fits server rooms, network closets and edge deployments
  • Built-in AVR and sine-wave output provide clean, stable power to protect sensitive IT and surveillance equipment
  • Remote monitoring and management via SmartConnect, Network Management Card or EcoStruxure IT for proactive alerts
  • Eight NEMA 5-15R outlets with two switchable groups allow prioritized shutdown and extended runtime with external battery packs
  • ENERGY STAR certified with a 3-year warranty and equipment protection policy for reduced operational cost and peace of mind
44 of 44 specifications
Technical specifications for APC SMX1000C 1000VA Smart-UPS X, Line Interactive, Rack Tower Convertible, 2U, 120V
General Information
Brand Name APC by Schneider Electric
Manufacturer Schneider Electric SA
Product Line Smart-UPS
Product Name Smart-UPS SMX 1000VA Tower/Rack Convertible UPS
Product Type Line-interactive UPS
Product Series SMX
Application/Usage Business, Communication System, Computer, Data Storage, Edge Computing, Electronic, IT Infrastructure, Mission Critical Equipment, Mobile Device, Network Device, POS Terminal, Security System, Server Room, Tablet, Telecommunication, VoIP, Workstation
Country of Origin PH
Manufacturer Part Number SMX1000C
Technical Information
AVR Yes
Output Voltage 120V
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Number of Batteries 1
Input Receptacle Type NEMA 5-15P
Backup/Run Time (Full Load) 8.0min
Backup/Run Time (Half Load) 14.8min
Battery Information
Battery Chemistry Sealed Lead Acid (VRLA)
Replaceable Battery Yes
Battery Recharge Time 2.00hr
Maximum Storage Relative Humidity 0.95
Certifications
Energy Star Yes
Controls/Indicators
Status Indicators Yes
Interfaces/Ports
Serial Port Yes
Network (RJ-45) Yes
Management
Alarm Low Battery, On Battery, Overload
Physical Characteristics
Color Black
Depth 19.29"
Width 3.50"
Height 17.01"
Weight 50.30lb
Form Factor Rack Mount
Rack Height 2U
Power Description
Output Power 800.00W
Input Voltage 82-144V AC
Waveform Type Pure Sine Wave
Input Frequency 63Hz
Plug/Connector Type NEMA 5-15P
Surge Energy Rating 600J
Product Information
Mount Type Rack Mount
Warranty
Limited Warranty 3-Year
Miscellaneous
Package Contents Cat 5 ethernet cable, Installation Guide, Rack Mounting brackets, Removable Support Feet, Smart UPS signalling RS-232 cable, USB Cable
Environmentally Friendly Yes
Environmental Certification cUL listed, ENERGY STAR V2.0 (USA), WEEE
