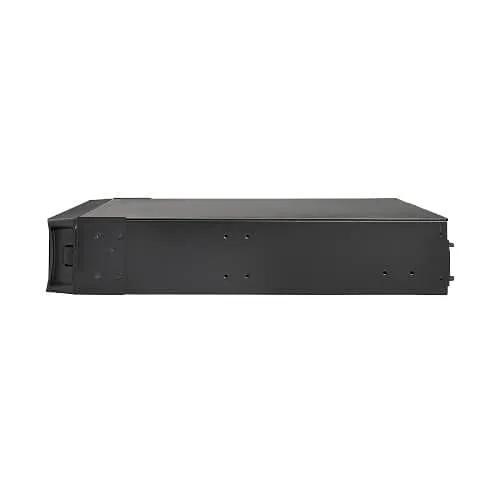

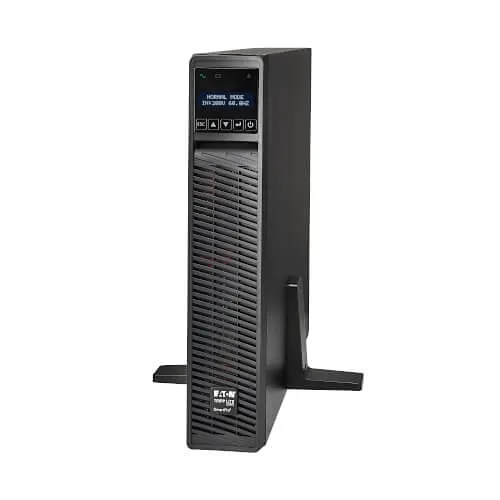

Eaton Tripp Lite SMX1500XLRT2UN SmartPro Line-Interactive Sine Wave UPS, 8-Outlet, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower, 1500VA / 1500W / 208V
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 10
Key Features
- Keeps critical systems online during outages with 1500VA/1500W battery backup and AVR for clean, regulated 230V power
- Remote monitoring and control via pre-installed WEBCARDLX network card for SNMP/HTML5 access and automated alerts
- Eight protected C13 outlets and two switched load banks enable selective rebooting and load shedding for servers, network and security equipment
- Scalable runtime with hot-swappable internal battery plus support for external battery packs to maintain surveillance, telecom and monitoring systems longer
- High-efficiency design (97%) and EMI/RFI filtering reduce operating costs and protect sensitive electronics in retail, casino, and enterprise environments
Quick Specifications
- Product Model
- SMX1500XLRT2UN
- Sector
- Data Comm & Networking
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartPro
Frequently Bought Together
Eaton Tripp Lite SMX1500XLRT2UN SmartPro Line-Interactive Sine Wave UPS, 8-Outlet, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower, 1500VA / 1500W / 208V
$1,882.20
4 items selected
Total: $3,138.20
Explore the details
Product information
SMX1500XLRT2UN
Overview

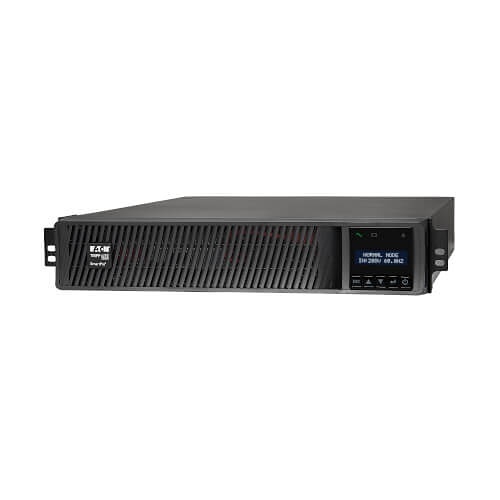

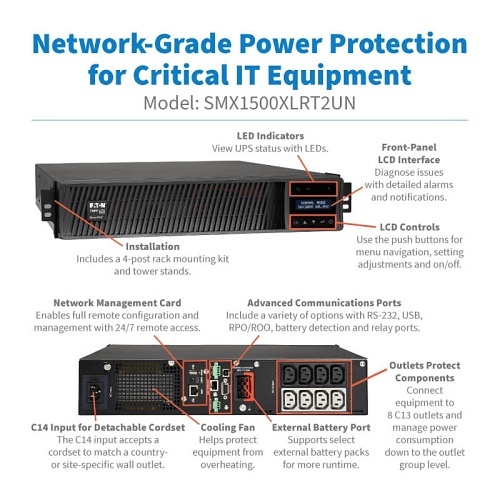

Protect networks, surveillance systems and critical security infrastructure from downtime with the Eaton Tripp Lite SMX1500XLRT2UN line-interactive UPS. This SmartPro 2U rack/tower UPS delivers 1500VA/1500W of pure sine wave backup power and automatic voltage regulation (AVR) to correct brownouts and overvoltages without draining the battery. Eight C13 outlets—two independently switched load banks—let you isolate and remotely reboot servers, switches, DVRs/NVRs or digital signage devices while the pre-installed WEBCARDLX network card provides HTML5/SNMP monitoring, alerts and secure remote management. With hot-swappable internal batteries, support for external runtime packs, and EMI/RFI filtering, the SMX1500XLRT2UN ensures reliable performance for security, telecom and monitoring applications. ENERGY STAR–rated efficiency reduces energy costs and heat in wiring closets and edge racks. Ideal for surveillance, retail POS, hotel systems and small data centers, this Eaton Tripp Lite UPS keeps operations running and data protected. Add it to your rack or deploy it tower-style to harden your site—order now or contact sales to configure extended runtime for mission-critical deployments.
Features
- Keeps critical systems online during outages with 1500VA/1500W battery backup and AVR for clean, regulated 230V power
- Remote monitoring and control via pre-installed WEBCARDLX network card for SNMP/HTML5 access and automated alerts

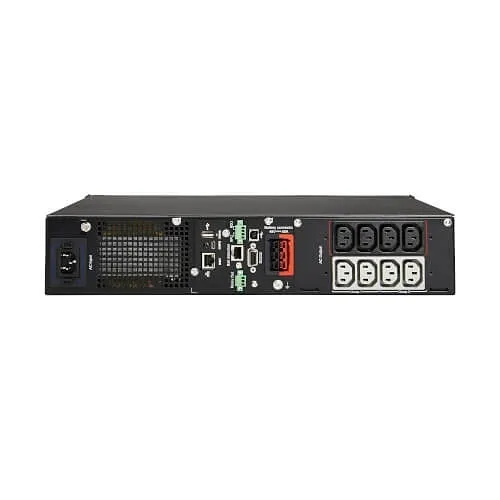

- Eight protected C13 outlets and two switched load banks enable selective rebooting and load shedding for servers, network and security equipment
- Scalable runtime with hot-swappable internal battery plus support for external battery packs to maintain surveillance, telecom and monitoring systems longer
- High-efficiency design (97%) and EMI/RFI filtering reduce operating costs and protect sensitive electronics in retail, casino, and enterprise environments
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Eaton |
| Product Line | SmartPro |
| Product Name | SmartPro SMX1500XLRT2UN 1500VA Rack/Tower UPS |
| Product Type | Line-interactive UPS |
| Product Model | SMX1500XLRT2UN |
| Manufacturer Part Number | SMX1500XLRT2UN |
| Technical Information | |
| AVR | Yes |
| Phase | Single Phase |
| Energy Saving | Yes |
| Hot Swappable | Yes |
| Transfer Time | 6-Millisecond |
| Output Voltage | 220V AC, 230V AC, 240V AC |
| Receptacle Type | IEC 60320 C13 |
| Application/Usage | Casino, Digital Signage, Gaming Console, Hotel/Motel Management, Mission Critical Equipment, Network Device, Retail Building, Security System, Server, Telecommunication, Wiring Closet |
| Number of Outlets | 8 |
| Receptacle Detail | 8 x IEC 60320 C13 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Backup/Run Time (Full Load) | 4.9-Minute |
| Backup/Run Time (Half Load) | 13.6-Minute |
| Battery Information | |
| DC System Voltage | 36 |
| Replaceable Battery | Yes |
| Battery Recharge Time | 4.5-Hour |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 201.93W |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| EPO Port | Yes |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp |
| Network Management | SNMP, SSH, Telnet |
| Others | |
| Model Number Replaces | SMX1000RT2UN |
| Physical Characteristics | |
| Depth | 13.5" |
| Width | 17.4" |
| Height | 3.5" |
| Weight | 43.10lb |
| Form Factor | Tower |
| Rack Height | 2U |
| Power Description | |
| Power Rating | 1500VA |
| Input Voltage | 230V AC |
| Waveform Type | Sine Wave |
| Input Frequency | 50Hz |
| Output Frequency | 60Hz |
| Plug/Connector Type | IEC 60320 C14 |
| Surge Energy Rating | 350 J |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
