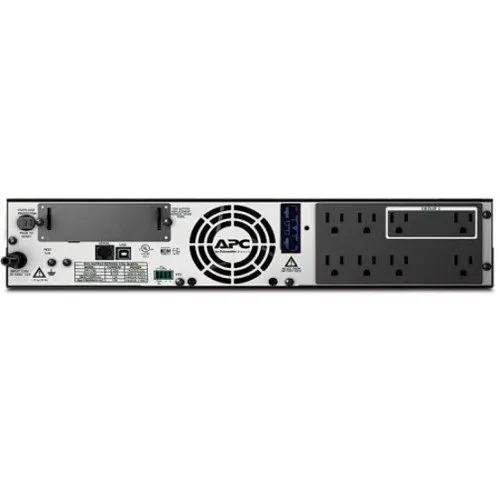

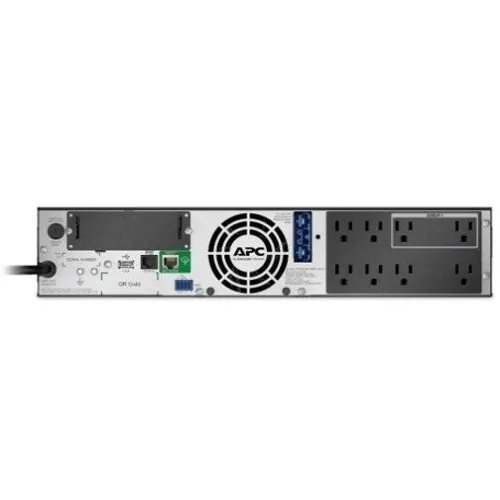

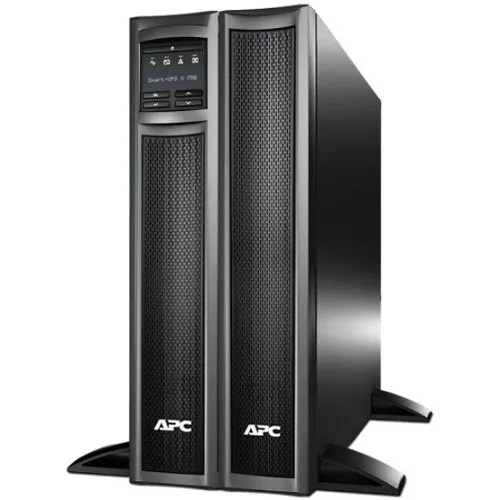

APC SMX750C Smart-UPS 750VA Rack/Tower 2U, LCD 120V with SmartConnect Port
Image of 4
Key Features
- Protects critical IT, security and surveillance systems with clean, pure sine-wave power and 750VA/120V backup to prevent downtime
- Remote monitoring via SmartConnect simplifies management and reduces on-site visits for network, server room and edge deployments
- Compact 2U rack/tower convertible design saves space in racks and closets while supporting 8 NEMA outlets for mixed device loads
- Energy-saving Green Mode and ENERGY STAR efficiency lower operating costs and heat output for 24/7 infrastructure
- Predictive battery replacement, LCD status and auto-recognition of external batteries simplify maintenance and scale runtime as needs grow
- Single switched outlet group enables controlled reboot and load shedding for hung devices or non-critical equipment
Quick Specifications
- Product Model
- SMX750C
- Brand Name
- APC by Schneider Electric
- Product Line
- Smart-UPS
- Product Name
- Smart-UPS SMX 750VA Tower/Rack Convertible UPS
Product Information Tabs
Overview
Keep servers, network devices and security/surveillance systems online during outages with the APC by Schneider Electric Smart-UPS SMX750C line-interactive UPS. Designed for small server rooms, network closets and edge computing sites, this 2U rack/tower UPS delivers 750VA of backup power and a 120V pure sine-wave output to ensure compatibility with active PFC servers, DVRs/NVRs and sensitive networking gear. SmartConnect remote monitoring and an intuitive LCD provide real-time status, alarm notifications and predictive battery replacement dates — reducing surprise failures and onsite maintenance. Built-in AVR and a single switched outlet group let you sequence power or reboot hung devices without interrupting critical loads. With ENERGY STAR efficiency and Green Mode operation, the SMX750C cuts utility costs and heat while providing eight NEMA receptacles and auto-recognition of external battery packs when extended runtime is required. Ideal for protecting IT infrastructure, telecommunications, access control and surveillance installations. Equip your rack or desktop network cabinet with dependable, manageable battery backup — order the SMX750C or contact sales to size runtime for your deployment.
Features
- Protects critical IT, security and surveillance systems with clean, pure sine-wave power and 750VA/120V backup to prevent downtime
- Remote monitoring via SmartConnect simplifies management and reduces on-site visits for network, server room and edge deployments
- Compact 2U rack/tower convertible design saves space in racks and closets while supporting 8 NEMA outlets for mixed device loads
- Energy-saving Green Mode and ENERGY STAR efficiency lower operating costs and heat output for 24/7 infrastructure
- Predictive battery replacement, LCD status and auto-recognition of external batteries simplify maintenance and scale runtime as needs grow
- Single switched outlet group enables controlled reboot and load shedding for hung devices or non-critical equipment
| General Information | |
|---|---|
| Brand Name | APC by Schneider Electric |
| Manufacturer | Schneider Electric SA |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS SMX 750VA Tower/Rack Convertible UPS |
| Product Type | Line-interactive UPS |
| Product Series | SMX |
| Packaged Quantity | 1 |
| Manufacturer Part Number | SMX750C |
| Technical Information | |
| AVR | Yes |
| Output Voltage | 120V |
| Receptacle Type | NEMA 5-15R |
| Application/Usage | Business, Communication System, Computer, Data Storage, Edge Computing, Electronic, IT Infrastructure, Mission Critical Equipment, Mobile Device, Network Device, POS Terminal, Security System, Server Room, Tablet, Telecommunication, VoIP, Workstation |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Batteries | 1 |
| Input Receptacle Type | NEMA 5-15P |
| Output Receptacle Type | 8 NEMA 5-15R |
| Backup/Run Time (Full Load) | 12-Minute |
| Backup/Run Time (Half Load) | 25.6-Minute |
| Number of Battery & Surge Outlets | 8 |
| Battery Information | |
| Battery Chemistry | VRLA |
| Replaceable Battery | Yes |
| Battery Recharge Time | 2-Hour |
| Maximum Storage Relative Humidity | 0.95 |
| Certifications | |
| Energy Star | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Interfaces/Ports | |
| EPO Port | Yes |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| Management | |
| Alarm | Low Battery, On Battery, Overload |
| Network Management | SmartConnect |
| Physical Characteristics | |
| Color | Black |
| Depth | 19.29" |
| Width | 3.50" |
| Height | 17.01" |
| Weight | 48.61lb |
| Rack Height | 2U |
| Power Description | |
| Output Power | 750VA |
| Input Voltage | 82-144V AC |
| Waveform Type | Sine Wave |
| Input Frequency | 63Hz |
| Output Frequency | 127Hz |
| Plug/Connector Type | NEMA 5-15P |
| Surge Energy Rating | 645J |
| Software | |
| Software Included | Yes |
| Warranty | |
| Limited Warranty | 3-Year |
| Additional Warranty Information | 3 years repair or replace for hardware. 2 years for battery, plus 1 additional year if customers registers device to SmartConnect |
| Miscellaneous | |
| Package Contents | Cat 5 ethernet cable, Installation Guide, Rack Mounting brackets, Removable support Feet, Smart UPS signalling RS-232 cable, USB cable, Warranty Card |
| Country of Origin | PH |
| Environmentally Friendly | Yes |
| Environmental Certification | cUL Listed, ENERGY STAR V2.0 (USA), WEEE |
