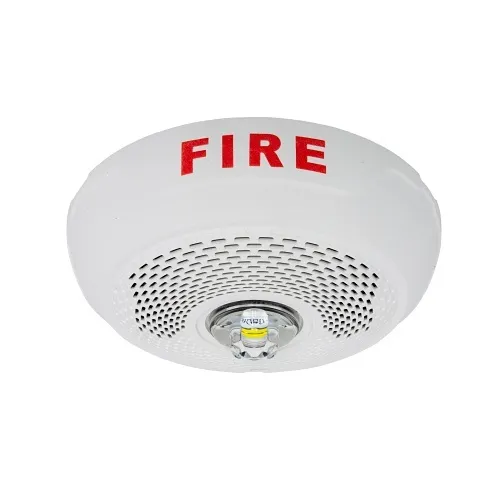

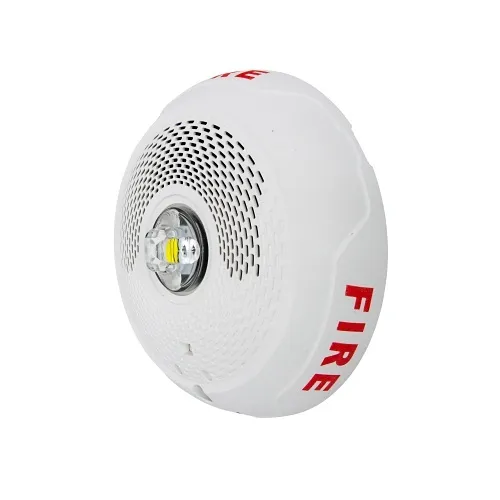

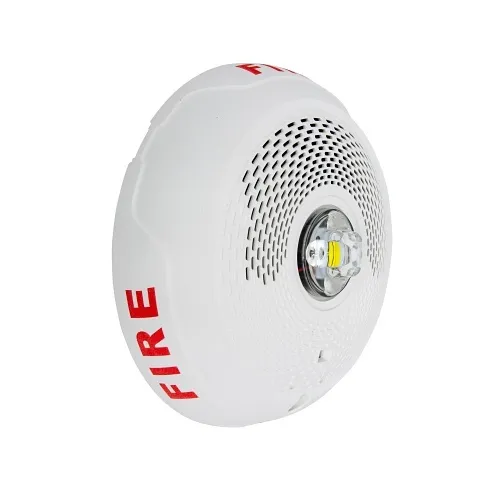

System Sensor SPSCWLED L-Series Indoor Speaker Ceiling-Mounted LED Strobe, "FIRE", White
Key Features
- Cut installation and operating costs by using up to 40% less current, allowing more devices per NAC and smaller power supplies
- Speed up commissioning and maintenance with DVM diagnostic test points and a plug-in mounting plate for non-intrusive voltage checks
- Deliver clearer, code-compliant alerts: integrated ceiling speaker plus high-intensity LED strobe improves audible and visual notification for security and monitoring
- Simplify upgrades with compatibility for legacy SpectrAlert, SpectrAlert Advance and L‑Series devices—retrofit without rewiring
- Ensure compliance and reliability with dual UL/ULC listing, tamper-resistant construction, and a compact 5" x 2.3" footprint
Quick Specifications
- Product Model
- SPSCWLED
- Brand Name
- System Sensor
- Product Line
- LED
- Product Type
- LED Strobe
Product Information Tabs
Overview
Deliver clear, code-compliant audible and visual alerts while cutting power use and installation time. The System Sensor SPSCWLED L-Series indoor speaker ceiling‑mounted LED strobe combines a high‑intensity LED strobe with an integrated speaker to provide reliable notification for security, surveillance, and life‑safety monitoring systems. With roughly 40% lower current draw than prior models, this speaker strobe lets you place more devices per NAC and reduces power-supply requirements—lowering total system cost.
Technician-friendly features include DVM test points for quick, in-place voltage checks and a plug‑in mounting plate with shorting springs to speed installs and service. The unit is dual-listed to UL and ULC standards, is compatible with legacy SpectrAlert and L‑Series appliances for easy retrofits, and is available in standard white (also supports red). Its compact 5" diameter and 2.3" depth make it ideal for ceiling applications in commercial, education, healthcare, and industrial facilities.
Specify the System Sensor SPSCWLED speaker strobe to improve notification clarity and simplify NAC planning—contact your sales rep or order now for retrofit and new-construction projects.
Features
- Cut installation and operating costs by using up to 40% less current, allowing more devices per NAC and smaller power supplies
- Speed up commissioning and maintenance with DVM diagnostic test points and a plug-in mounting plate for non-intrusive voltage checks
- Deliver clearer, code-compliant alerts: integrated ceiling speaker plus high-intensity LED strobe improves audible and visual notification for security and monitoring
- Simplify upgrades with compatibility for legacy SpectrAlert, SpectrAlert Advance and L‑Series devices—retrofit without rewiring
- Ensure compliance and reliability with dual UL/ULC listing, tamper-resistant construction, and a compact 5" x 2.3" footprint
| General Information | |
|---|---|
| Brand Name | System Sensor |
| Product Line | LED |
| Product Type | LED Strobe |
| Product Series | L |
| Manufacturer Part Number | SPSCWLED |
| Others | |
| Model Number Replaces | SP2C24115, SP2C2415, SP2C241575, SP2C24177, SP2C2430, SP2C2495, SPSCWL |
| Physical Characteristics | |
| Color | Red, White |
| Depth | 2.3" |
| Width | 5" |
| Lens Color | Clear |
| Miscellaneous | |
| Features | Common aesthetics across the L-Series platform, Digital Volt Meter (DVM) diagnostic test points for Speaker Strobes, Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 V DC, Field-selectable candela settings on wall units-15, 30, 75, 95, 110, 135, and 185, LED technology provides lower current draw, Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity, No extension ring required, Speakers and Speaker strobes listed for wall or ceiling use, Tamper-resistant construction |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | UL |
