System Sensor SPSWLED L-Series Indoor Speaker Wall-Mounted LED Strobe, "FIRE", White

SKU: SPSWLED System Sensor
Discount Image of BK-SPSWLED

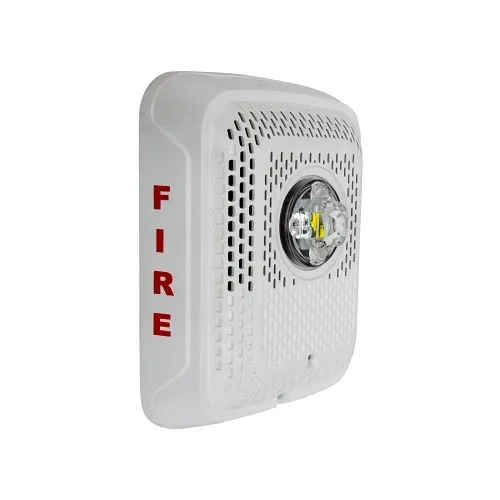

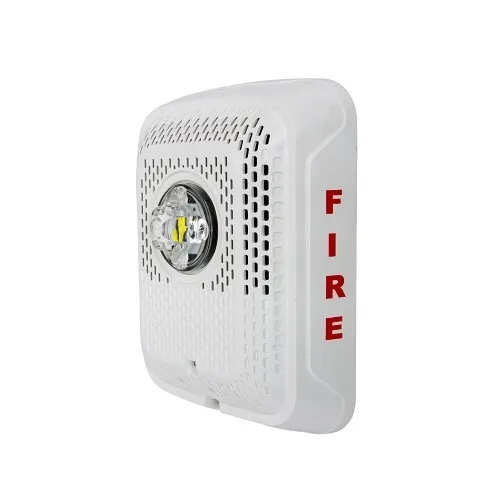

Product images for System Sensor SPSWLED L-Series Indoor Speaker Wall-Mounted LED Strobe, "FIRE", White. 3 image(s) available. Click on image to view full size.
Sale 1% OFF

Key Features

  • Reduce installation and operating costs with up to 40% lower current draw, allowing more devices per NAC and smaller power supplies
  • Faster troubleshooting and maintenance via built-in DVM test points—measure voltage without removing the device
  • Flexible field-selectable candela settings (15–185 cd) and 16–33 V DC compatibility for easy retrofit into existing SpectrAlert and L-Series systems
  • Clear, intelligible voice and tone performance combined with a high-intensity LED strobe to improve occupant notification and code compliance
  • Quick, secure installation with plug-in mounting plate, shorting springs, and tamper-resistant construction for reliable long-term operation

Quick Specifications

Product Model
SPSWLED
Brand Name
System Sensor
Product Line
LED
Product Type
LED Strobe
View Full Technical Specifications

Explore the details

Product information

SPSWLED

Overview

Improve building safety and reduce lifecycle costs with the System Sensor SPSWLED L-Series indoor speaker wall-mounted LED strobe. This speaker strobe combines high-intensity visual alerts and clear audio to enhance occupant notification in commercial, institutional, and industrial security and fire alarm systems. Engineered for installers and facilities managers, the SPSWLED delivers up to 40% lower current draw to maximize NAC capacity and lower power supply requirements. Field-selectable candela settings (15–185 cd) and electrical compatibility at 16–33 V DC make retrofits straightforward, while built-in DVM diagnostic test points speed commissioning and routine maintenance without appliance removal. The compact, wall-mount design offers common L-Series aesthetics and tamper-resistant construction for secure, code-compliant deployments. Ideal for security, surveillance integration, and centralized monitoring applications where reliable notification matters, the System Sensor SPSWLED reduces installation time and total cost of ownership. Specify the SPSWLED for new builds or retrofit projects to streamline installation and improve detection-to-notification performance—contact your distributor to order or request a quote.

Features

  • Reduce installation and operating costs with up to 40% lower current draw, allowing more devices per NAC and smaller power supplies
  • Faster troubleshooting and maintenance via built-in DVM test points—measure voltage without removing the device
  • Flexible field-selectable candela settings (15–185 cd) and 16–33 V DC compatibility for easy retrofit into existing SpectrAlert and L-Series systems
  • Clear, intelligible voice and tone performance combined with a high-intensity LED strobe to improve occupant notification and code compliance
  • Quick, secure installation with plug-in mounting plate, shorting springs, and tamper-resistant construction for reliable long-term operation
14 of 14 specifications
Technical specifications for System Sensor SPSWLED L-Series Indoor Speaker Wall-Mounted LED Strobe, "FIRE", White
General Information
Brand Name System Sensor
Product Line LED
Product Type LED Strobe
Product Series L
Manufacturer Part Number SPSWLED
Others
Model Number Replaces SP2W1224MC, SP2W2415, SPSWL
Physical Characteristics
Color Red, White
Depth 2.3"
Width 5"
Lens Color Clear
Miscellaneous
Features Common aesthetics across the L-Series platform, Digital Volt Meter (DVM) diagnostic test points for Speaker Strobes, Electrically compatible with legacy SpectrAlert, SpectrAlert Advance and L-series devices at 16-33 V DC, Field-selectable candela settings on wall units-15, 30, 75, 95, 110, 135, and 185, LED technology provides lower current draw, Mounting plate provides plug-in design for easier installation and shorting springs to check wiring continuity, No extension ring required, Speakers and Speaker strobes listed for wall or ceiling use, Tamper-resistant construction
Indoor/Outdoor Indoor
Environmentally Friendly Yes
Environmental Certification UL
