APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets

SKU: SRT2200RMXLA APC by Schneider Electric
APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, Six NEMA 5-20R and One NEMA L5-20R Outlets

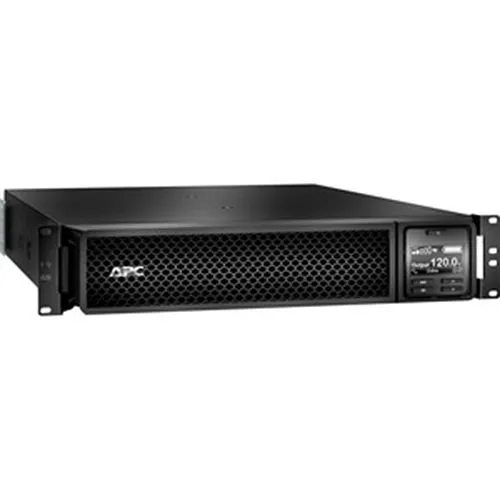

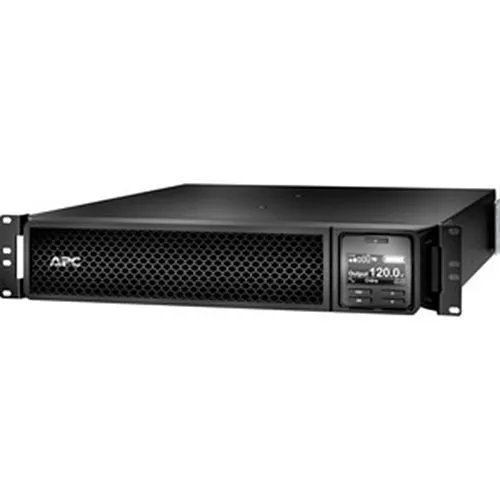

Product images for APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets. 4 image(s) available. Click on image to view full size.

Key Features

  • Continuous, clean power with double-conversion online topology to keep servers, network and security systems running through utility outages
  • High capacity 2200VA / 120V output in a 2U rackmount form factor for dense server rooms and network closets
  • Graphical LCD and SmartSlot management for remote monitoring, easy configuration, and proactive battery alerts
  • Hot-swappable VRLA battery and 3-hour recharge for fast maintenance without downtime
  • ECO Mode and Unity Power Factor increase efficiency and reduce operating costs while protecting critical loads
  • Multiple NEMA outlets including one NEMA L5-20R for higher-draw devices—ideal for surveillance, monitoring, and storage equipment

Quick Specifications

Product Model
SRT2200RMXLA
Sector
Data Comm & Networking
Brand Name
APC by Schneider Electric
Product Line
Smart-UPS
View Full Technical Specifications

Frequently Bought Together

This Item
APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets

APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets

$2,793.49

Frequently Bought Together (2 items)

3 items selected

Total: $4,813.61

Explore the details

Product information

SRT2200RMXLA

Overview

Keep critical IT, security and surveillance systems online and protected with the APC by Schneider Electric Smart-UPS SRT 2200VA online UPS. Designed for server rooms, network closets and monitoring stations, this 2U rackmount UPS delivers 2200VA of continuous 120V output and double-conversion protection to eliminate downtime from brownouts, spikes and noise. The intuitive graphical LCD and SmartSlot management make it simple to monitor load, battery status and alarms remotely—helping you prevent failures before they impact operations. Hot-swappable VRLA batteries with a three-hour recharge time reduce service windows and extend runtime when you need it most. ECO Mode and unity power factor improve energy efficiency and lower total cost of ownership without sacrificing protection for servers, surveillance DVRs/NVRs, and network equipment. With seven protected outlets (including a NEMA L5-20R) and robust diagnostics, the SRT2200RMXLA is ideal for businesses that require reliable power for critical applications like security, monitoring and networking. Protect your infrastructure and maintain uptime—contact sales or add to cart to secure power for your systems.

Features

  • Continuous, clean power with double-conversion online topology to keep servers, network and security systems running through utility outages
  • High capacity 2200VA / 120V output in a 2U rackmount form factor for dense server rooms and network closets
  • Graphical LCD and SmartSlot management for remote monitoring, easy configuration, and proactive battery alerts
  • Hot-swappable VRLA battery and 3-hour recharge for fast maintenance without downtime
  • ECO Mode and Unity Power Factor increase efficiency and reduce operating costs while protecting critical loads
  • Multiple NEMA outlets including one NEMA L5-20R for higher-draw devices—ideal for surveillance, monitoring, and storage equipment
53 of 53 specifications
Technical specifications for APC SRT2200RMXLA Smart-UPS SRT, 2200VA, 120V, LCD, Rackmount, 2U, NEMA 5-20R and One NEMA L5-20R Outlets
General Information
Sector Data Comm & Networking
Brand Name APC by Schneider Electric
Manufacturer Schneider Electric SA
Product Line Smart-UPS
Product Name Smart-UPS SRT 2200VA RM 120V
Product Type Double Conversion Online UPS
Manufacturer Part Number SRT2200RMXLA
Technical Information
Energy Saving Yes
Hot Swappable Yes
Output Voltage 120V
Receptacle Type NEMA 5-20R, NEMA L5-20R
Application/Usage Network Workstation, Server

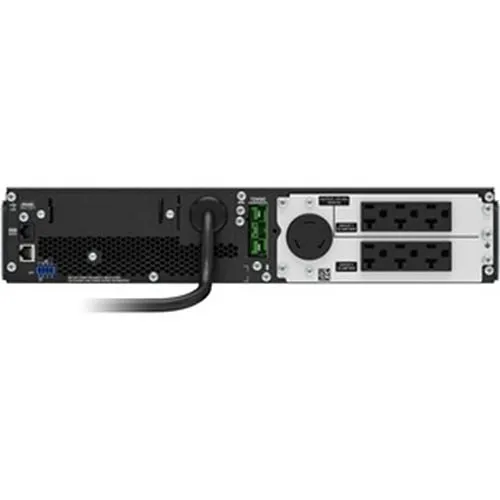

Receptacle Detail 1 x NEMA L5-20R, 6 x NEMA 5-20R
Number of Batteries 1
Input Receptacle Type NEMA 5-20P
Output Receptacle Type 1 NEMA L5-20R, 6 NEMA 5-20R
Number of Battery & Surge Outlets 7
Battery Information
Battery Life 5 Year
Battery Chemistry VRLA
DC System Voltage 72
Replaceable Battery Yes
Battery Recharge Time 3-Hour
Maximum Storage Relative Humidity 0.95
Certifications
Energy Star Yes
Controls/Indicators
Status Indicators Yes
Environmental Conditions
Thermal Dissipation 156.79W
Maximum Storage Elevation 50000'
Maximum Operating Elevation 10000'
Maximum Operating Temperature 104°F (40°C)
Interfaces/Ports
EPO Port Yes
Management
Network Management SmartSlot
Physical Characteristics
Color Black
Depth 22.99"
Width 17.01"
Height 3.35"
Weight 55.01lb
Form Factor Rack Mount
Rack Height 2U
Power Description
Output Power 2200VA
Input Voltage 120V
Waveform Type Sine Wave
Input Frequency 70Hz
Plug/Connector Type NEMA 5-20P
Surge Energy Rating 340J
Product Information
Mount Type Rack Mount
Load Capacity 2200VA
Software
Software Included Yes
Warranty
Limited Warranty 3-Year
Additional Warranty Information 3 years repair or replace (excluding battery) and 2 years for battery
Miscellaneous
Package Contents CD with Software, Documentation CD, Installation Guide, Rack Mounting brackets, Rack mounting Hardware, Rack Mounting support rails, USB cable, Warranty Card
Country of Origin PH
Environmentally Friendly Yes
Environmental Certification California Proposition 65, ENERGY STAR V2.0 (USA)
