Pelco SRXP4-5V10-EMD Sarix Professional Series 5MP WDR Dome IP Camera, 3.4-10.5mm Lens

SKU: SRXP4-5V10-EMD Pelco by Motorola Solutions

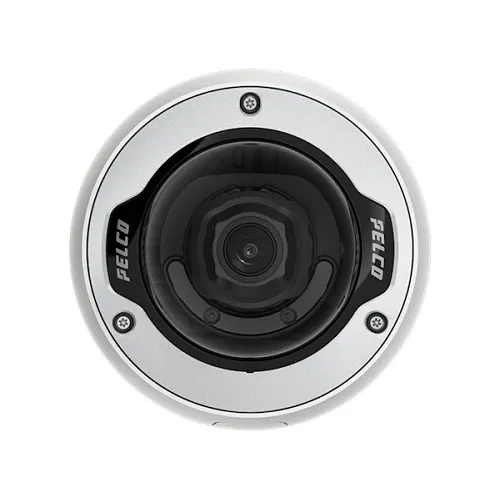

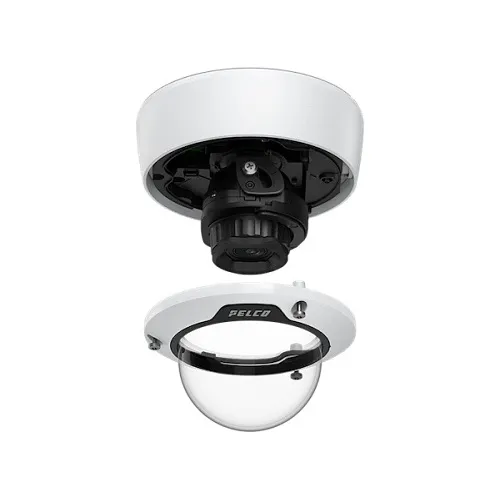

Image of PE-SRP451EMD
Product images for Pelco SRXP4-5V10-EMD Sarix Professional Series 5MP WDR Dome IP Camera, 3.4-10.5mm Lens. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Deliver clear, actionable video for faster incident response with 5MP resolution and up to 130 dB WDR
  • Maintain 24/7 monitoring in low light with adaptive IR illumination up to 50 m
  • Reduce false alerts and speed investigations using built-in Pelco Smart Analytics
  • Withstand vandalism and harsh weather thanks to IK10 impact rating and IP66/IP67 protection
  • Flexible coverage via 3.4–10.5 mm motorized varifocal lens (3.1x optical zoom) for fewer cameras and simpler installs

Quick Specifications

Product Model
SRXP4-5V10-EMD
Brand Name
Pelco by Motorola Solutions
Product Line
Sarix
Product Name
Sarix Professional 4 SRXP4-5V10-EMD Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Pelco SRXP4-5V10-EMD Sarix Professional Series 5MP WDR Dome IP Camera, 3.4-10.5mm Lens

Pelco SRXP4-5V10-EMD Sarix Professional Series 5MP WDR Dome IP Camera, 3.4-10.5mm Lens

$609.13

Frequently Bought Together (3 items)

4 items selected

Total: $2,071.14

Explore the details

Product information

SRXP4-5V10-EMD

Overview

Secure critical assets with crisp, actionable video from the Pelco by Motorola Solutions Sarix Professional SRXP4-5V10-EMD dome camera. This 5MP WDR network camera delivers high-resolution surveillance and true wide dynamic range (up to 130 dB) so operators capture license-plate detail and facial features across scenes with bright highlights and deep shadows. The 3.4–10.5 mm motorized varifocal lens (3.1x optical zoom) lets you tailor field of view during installation or remotely, reducing the number of cameras required. Designed for demanding sites, the IK10 impact rating and IP66/IP67 ingress protection resist vandalism, dust and weather, while adaptive IR illumination reaches up to 50 m for reliable night-time monitoring. Integrated Pelco Smart Analytics improves detection accuracy and streamlines forensic searches, cutting operator workload and accelerating response. H.265/H.264 compression and local SD storage options help lower bandwidth and retention costs for enterprise surveillance deployments. Ideal for transportation hubs, campuses, retail and critical infrastructure, the Sarix Professional 4 dome combines durable hardware with intelligent monitoring to protect people and property. Contact your Pelco reseller or add this camera to your system design to upgrade site security today.

Features

  • Deliver clear, actionable video for faster incident response with 5MP resolution and up to 130 dB WDR
  • Maintain 24/7 monitoring in low light with adaptive IR illumination up to 50 m
  • Reduce false alerts and speed investigations using built-in Pelco Smart Analytics
  • Withstand vandalism and harsh weather thanks to IK10 impact rating and IP66/IP67 protection
  • Flexible coverage via 3.4–10.5 mm motorized varifocal lens (3.1x optical zoom) for fewer cameras and simpler installs
43 of 43 specifications
Technical specifications for Pelco SRXP4-5V10-EMD Sarix Professional Series 5MP WDR Dome IP Camera, 3.4-10.5mm Lens
General Information
Brand Name Pelco by Motorola Solutions
Manufacturer Schneider Electric SA
Product Line Sarix
Product Name Sarix Professional 4 SRXP4-5V10-EMD Network Camera
Product Type Network Camera
Product Model SRXP4-5V10-EMD
Product Series Sarix Professional 4
Manufacturer Part Number SRXP4-5V10-EMD
Technical Information
Lens Type Varifocal
Field of View Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Maximum Aperture f/1.6
Maximum Frame Rate 30.0fps
Wide Dynamic Range Yes
Minimum Focal Length 3.40mm
Connectivity Technology Wired
Field of View (Vertical) 28.00°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140.00°F
Minimum Operating Temperature -40.0°F
Exposure
Longest Shutter Speed 1/7.5 Second
Shortest Shutter Speed 1/30000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.4-10.5mm
Lens Included Yes
Maximum Focal Length 10.50mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Pendant Mount, Surface Mount
Product Replacements & Other Alternatives
Model Number Replaces IMP531-1ES
Storage
Storage Type SD Card
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 3D Noise Reduction, Audio Compression, Day/Night, HTTPS Encryption, Multi-view Stream, Password Protection, SD Card Local Storage, Video Management System, White Balance, Wide Dynamic Range
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
