Pelco SRXP4-5V10-EMD-IR Sarix Professional Series 5MP Dome Camera, IP66/67

SKU: SRXP4-5V10-EMD-IR Pelco by Motorola Solutions

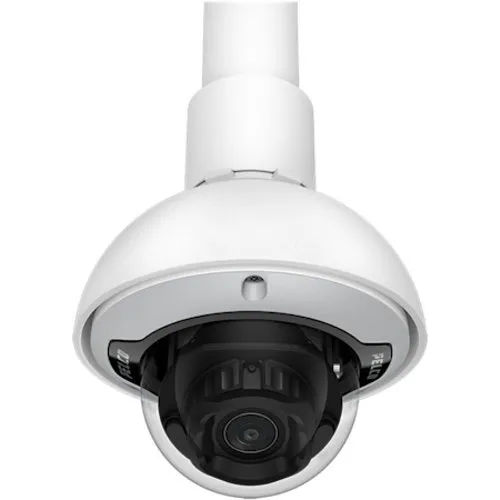

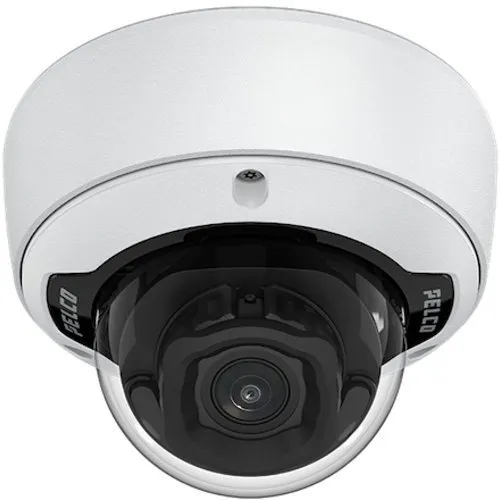

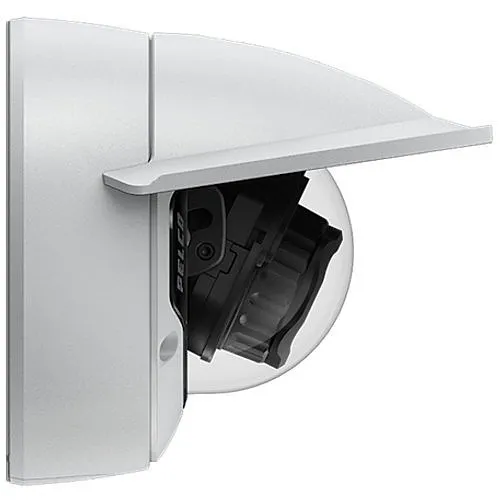

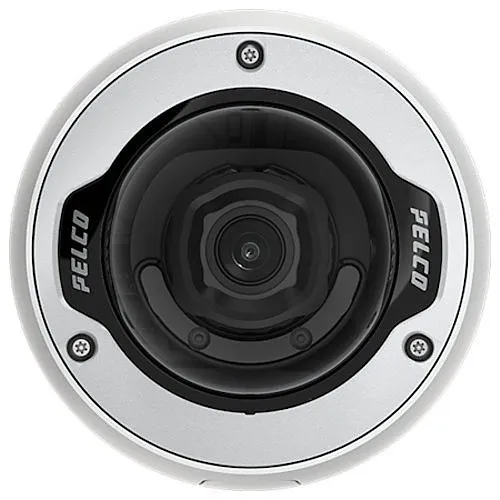

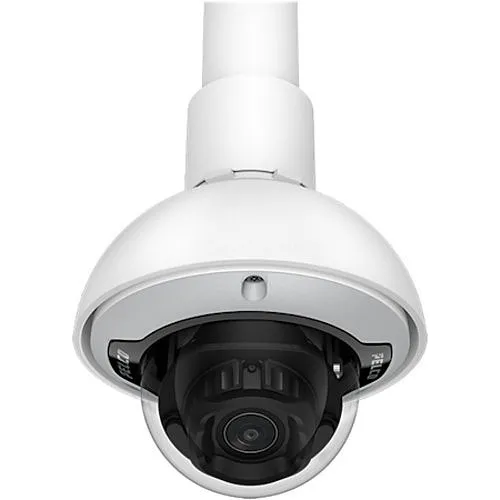

Image of PE-SRP451EMR
Product images for Pelco SRXP4-5V10-EMD-IR Sarix Professional Series 5MP Dome Camera, IP66/67. 6 image(s) available. Click on image to view full size.

Key Features

  • High‑quality 5MP imaging with 130 dB WDR for clear, actionable evidence in high-contrast and low-light scenes
  • Built-in Pelco Smart Analytics and up to 50m IR for reliable event detection and 24/7 monitoring of large outdoor areas
  • Rugged IP66/67, IK10 and Type 4X housing ensures continuous operation in harsh weather and vandal-prone locations
  • Smart compression and H.264/H.265 support reduce bandwidth and storage needs up to 70%, lowering operating costs
  • Varifocal 3.4–10.5mm motorized lens and modular design speed installation and remote adjustments to minimize onsite service time
  • ONVIF compatibility and RJ-45 network interface enable seamless integration with existing VMS and network infrastructure

Quick Specifications

Product Model
SRXP4-5V10-EMD-IR
Brand Name
Pelco by Motorola Solutions
Product Line
Sarix
Product Name
Sarix Professional 4 SRXP4-5V10-EMD-IR Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Pelco SRXP4-5V10-EMD-IR Sarix Professional Series 5MP Dome Camera, IP66/67

Pelco SRXP4-5V10-EMD-IR Sarix Professional Series 5MP Dome Camera, IP66/67

$619.75

Frequently Bought Together (3 items)

4 items selected

Total: $2,081.76

Product Information Tabs

Overview

Optimize perimeter and facility surveillance with the Pelco by Motorola Solutions Sarix Professional 5MP dome camera. This SRXP4 series network camera delivers high-resolution imaging and 130 dB Wide Dynamic Range so security teams can capture crisp, usable video in challenging lighting—day or night. Integrated Pelco Smart Analytics and adaptive IR illumination (up to ~50 m) detect critical events earlier and accelerate real-time response and forensic review. The rugged IP66/67, IK10 and Type 4X-rated housing protects the camera from water, dust and impact, making it ideal for outdoor parking lots, campuses and industrial sites. Smart compression combined with H.264/H.265 support significantly lowers bandwidth and storage costs without sacrificing image quality, while ONVIF compliance and RJ-45 connectivity simplify VMS integration and remote management. Backed by a 5-year limited warranty, the Sarix SRXP4-5V10-EMD-IR balances durability, analytics and cost-efficiency for professional security deployments. Add it to your site design or contact sales to upgrade your surveillance system today.

Features

  • High‑quality 5MP imaging with 130 dB WDR for clear, actionable evidence in high-contrast and low-light scenes
  • Built-in Pelco Smart Analytics and up to 50m IR for reliable event detection and 24/7 monitoring of large outdoor areas
  • Rugged IP66/67, IK10 and Type 4X housing ensures continuous operation in harsh weather and vandal-prone locations
  • Smart compression and H.264/H.265 support reduce bandwidth and storage needs up to 70%, lowering operating costs
  • Varifocal 3.4–10.5mm motorized lens and modular design speed installation and remote adjustments to minimize onsite service time
  • ONVIF compatibility and RJ-45 network interface enable seamless integration with existing VMS and network infrastructure
General Information
Brand Name Pelco by Motorola Solutions
Manufacturer Schneider Electric SA
Product Line Sarix
Product Name Sarix Professional 4 SRXP4-5V10-EMD-IR Network Camera
Product Type Network Camera
Product Model SRXP4-5V10-EMD-IR
Product Series Sarix Professional 4
Manufacturer Part Number SRXP4-5V10-EMD-IR
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 3.1x
Field of View Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Night Vision Type Infrared/Color
Maximum Frame Rate 30fps
Minimum Focal Length 3.4mm
Connectivity Technology Wired
Field of View (Vertical) 28°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 131.23 ft
Certifications
TAA Compliant No
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1/7.5 Second
Shortest Shutter Speed 1/30000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.4-10.5mm
Lens Included Yes
Maximum Focal Length 10.5mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor Dome
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Pendant Mount, Surface Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 3D Digital Noise Reduction, Audio Compression, Back Light Compensation (BLC), Privacy Masking, Video Content Analytics, White Balance, Wide Dynamic Range
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
