Pelco SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera, 4.8-40.8mm Lens, White

SKU: SRXP4-5V40-EBT-IR Pelco by Motorola Solutions

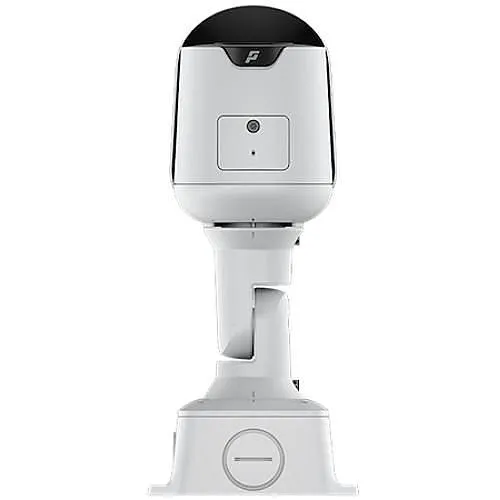

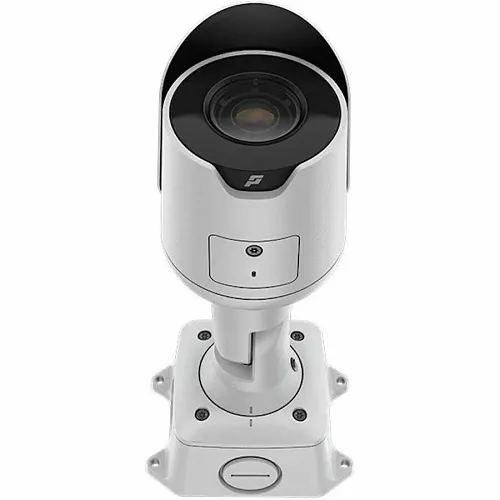

Image of PE-SRXP45V40
Product images for Pelco SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera, 4.8-40.8mm Lens, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Deliver crisp 5MP video for faster identification and forensic review, reducing missed details in critical incidents
  • Powerful varifocal 4.8–40.8mm lens with 8.5x optical zoom for flexible coverage from wide areas to long-range monitoring
  • Infrared night vision (up to ~262 ft) and True WDR ensure reliable low-light and high-contrast scene capture for 24/7 surveillance
  • Rugged IP66/IP67 and IK10-rated housing built for outdoor, vandal-prone environments—minimizes maintenance and downtime
  • ONVIF-compliant networking and H.264/H.265 support simplify integration and reduce storage and bandwidth costs

Quick Specifications

Product Model
SRXP4-5V40-EBT-IR
Brand Name
Pelco by Motorola Solutions
Product Line
Sarix
Product Name
Bullet Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Pelco SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera, 4.8-40.8mm Lens, White

Pelco SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera, 4.8-40.8mm Lens, White

$883.62

Frequently Bought Together (3 items)

4 items selected

Total: $2,872.73

Explore the details

Product information

SRXP4-5V40-EBT-IR

Overview

Protect perimeter assets and critical infrastructure with the Pelco by Motorola Solutions SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera. Designed for professional security and surveillance deployments, this Sarix Professional 4 bullet camera delivers high-resolution 5MP imaging and a versatile 4.8–40.8mm varifocal lens so you can easily cover wide areas or zoom in on key details without sacrificing image quality. True WDR and built-in infrared illumination (effective to ~262 ft) ensure clear monitoring in mixed lighting and at night, improving detection and reducing false alarms.

Engineered for reliable outdoor performance, the camera’s IP66/IP67 and IK10 ratings stand up to weather and vandal threats common in parking lots, perimeters, campuses, and critical facilities. Native H.264/H.265 codecs and ONVIF compatibility make integration with Video Management Systems straightforward while lowering storage and bandwidth demands. Backed by a 5-year limited warranty, the SRXP4-5V40-EBT-IR is a secure, scalable choice for long-term surveillance projects. Contact sales or add to cart to specify this rugged network camera for your next security installation.

Features

  • Deliver crisp 5MP video for faster identification and forensic review, reducing missed details in critical incidents
  • Powerful varifocal 4.8–40.8mm lens with 8.5x optical zoom for flexible coverage from wide areas to long-range monitoring
  • Infrared night vision (up to ~262 ft) and True WDR ensure reliable low-light and high-contrast scene capture for 24/7 surveillance
  • Rugged IP66/IP67 and IK10-rated housing built for outdoor, vandal-prone environments—minimizes maintenance and downtime
  • ONVIF-compliant networking and H.264/H.265 support simplify integration and reduce storage and bandwidth costs
48 of 48 specifications
Technical specifications for Pelco SRXP4-5V40-EBT-IR 5MP Network IR Outdoor Bullet Camera, 4.8-40.8mm Lens, White
General Information
Brand Name Pelco by Motorola Solutions
Manufacturer Schneider Electric SA
Product Line Sarix
Product Name Bullet Camera
Product Type Network Camera
Product Model SRXP4-5V40-EBT-IR
Product Series Sarix Professional 4
Country of Origin US
Manufacturer Part Number SRXP45V40EBTIR
Technical Information
Lens Type Varifocal
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264 / AVC, H.265 / HEVC, MJPEG
Maximum Aperture f/1.7
Night Vision Type Infrared (IR)
Maximum Frame Rate 30.0fps
Wide Dynamic Range Yes
Minimum Focal Length 4.80mm
Connectivity Technology Wired
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Night Vision Distance 262.47'
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140.00°F
Minimum Operating Temperature -40.0°F
Exposure
Longest Shutter Speed 1/7.5 Second
Shortest Shutter Speed 1/30000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 4.8-40mm
Lens Included Yes
Maximum Focal Length 40.80mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant
Form Factor Bullet
Power Description
Input Voltage 12V DC
Product Information
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type SD Card
Recording Formats H.264, H.265 / HEVC
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 3D Digital Noise Reduction, Anti-flicker, Day/Night, HTTPS Encryption, Human Detection, Privacy Masking, Vehicle Detection, Video Content Analytics, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification RoHS
