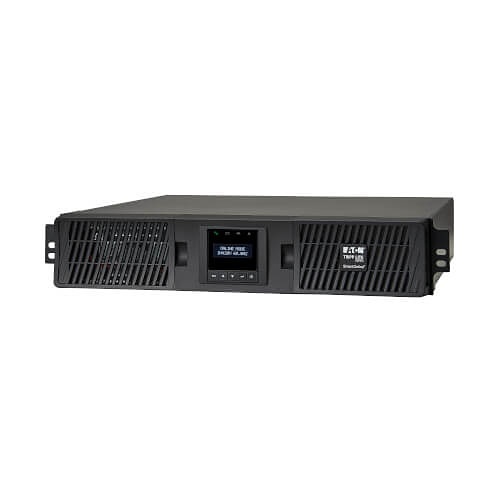

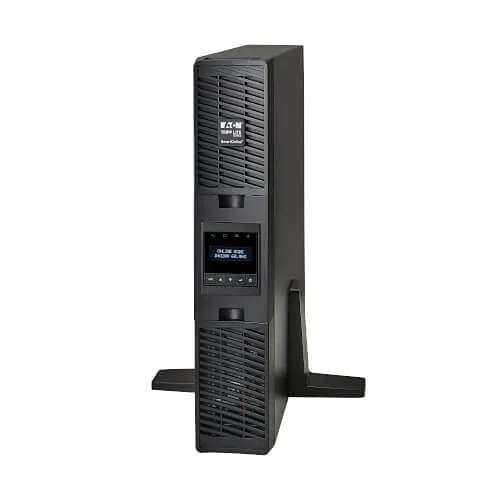

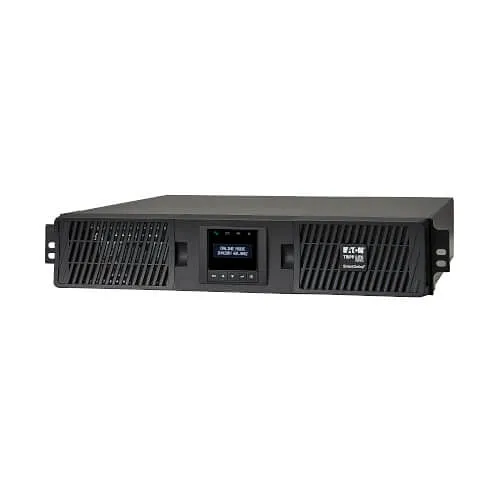

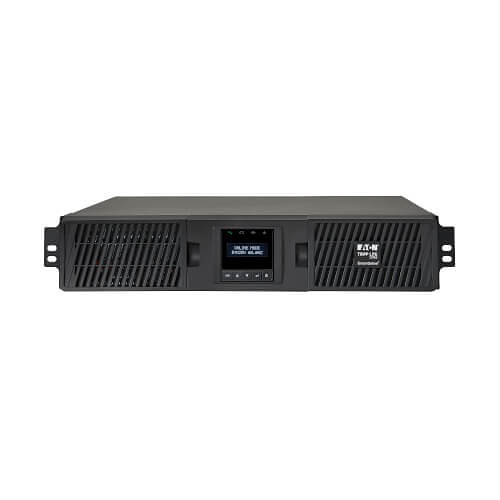

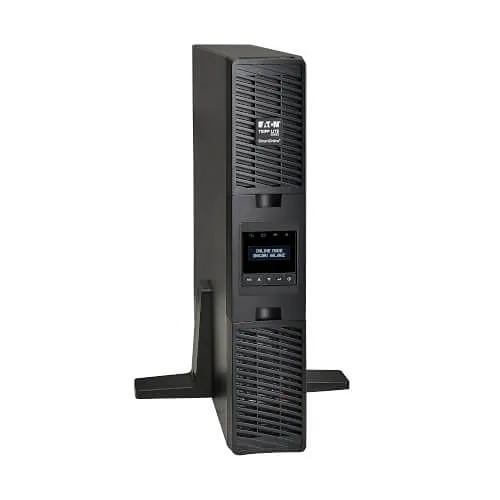

Eaton Tripp Lite SU1000RTXLCD2UN SmartOnline 1000VA 900W 120V Double-Conversion UPS, 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack / Tower
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 10
Key Features
- Continuous double-conversion protection to keep critical servers, network gear and surveillance systems online with zero transfer time
- Integrated WEBCARDLX network card and RS-232/USB for 24/7 remote monitoring, SNMP alerts and remote rebooting of connected equipment
- Hot-swappable VRLA batteries and support for external battery packs for scalable runtime (14 min @ 450W, 4.8 min @ 900W)

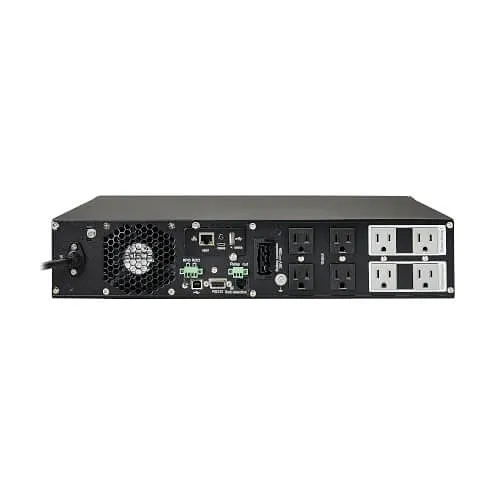

- Eight pure-sine NEMA 5-15R outlets including two individually switchable load banks for selective reboot and load shedding
- ENERGY STAR certified Economy mode delivers higher efficiency and lower operating costs without sacrificing protection
Quick Specifications
- Product Model
- SU1000RTXLCD2UN
- Brand Name
- Eaton Tripp Lite
- Product Line
- SmartOnline
- Product Name
- SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
Frequently Bought Together
Eaton Tripp Lite SU1000RTXLCD2UN SmartOnline 1000VA 900W 120V Double-Conversion UPS, 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack / Tower
$1,705.24
6 items selected
Total: $3,492.91
Explore the details
Product information
SU1000RTXLCD2UN
Overview

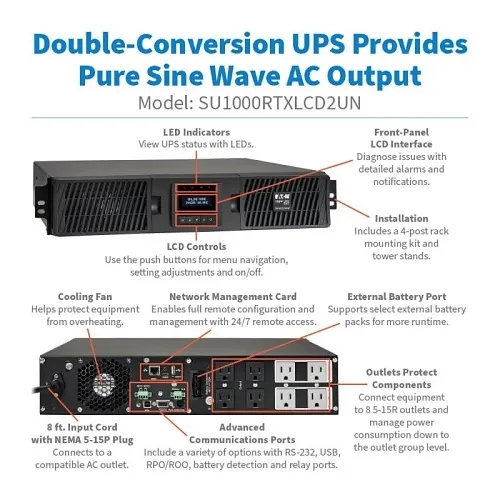

Protect critical infrastructure with the Eaton Tripp Lite SmartOnline SU1000RTXLCD2UN, a double-conversion online UPS engineered for network closets, server rooms and security installations. This 1000VA / 900W UPS delivers fully regulated pure-sine output and zero transfer time to battery, ensuring uninterrupted operation for servers, switches, access control and surveillance cameras. With eight NEMA 5-15R outlets—two of them individually controllable—you can remotely reboot non-responsive devices or shed nonessential loads to extend runtime.
The SU1000RTXLCD2UN includes a pre-installed WEBCARDLX network interface and standard RS-232/HID USB ports for robust monitoring, SNMP integration and automated shutdowns with PowerAlert software. Hot-swappable internal VRLA batteries plus support for external battery packs let you scale backup time for mission-critical monitoring and security systems. ENERGY STAR-certified Economy mode improves efficiency and reduces heat output for lower total cost of ownership.
Ideal for IT, physical security and surveillance deployments that require continuous clean power and remote management. Protect your data center, network and security infrastructure—contact sales or add to cart to secure reliable, remotely manageable power.
Features
- Continuous double-conversion protection to keep critical servers, network gear and surveillance systems online with zero transfer time
- Integrated WEBCARDLX network card and RS-232/USB for 24/7 remote monitoring, SNMP alerts and remote rebooting of connected equipment
- Hot-swappable VRLA batteries and support for external battery packs for scalable runtime (14 min @ 450W, 4.8 min @ 900W)
- Eight pure-sine NEMA 5-15R outlets including two individually switchable load banks for selective reboot and load shedding
- ENERGY STAR certified Economy mode delivers higher efficiency and lower operating costs without sacrificing protection
| General Information | |
|---|---|
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Eaton |
| Product Line | SmartOnline |
| Product Name | SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS |
| Product Model | SU1000RTXLCD2UN |
| Application/Usage | Computer Room, Data Center, Mission Critical Equipment, Network Closet, Server |
| Country of Origin | CN |
| Manufacturer Part Number | SU1000RTXLCD2UN |
| Technical Information | |
| Phase | Single Phase |
| Energy Saving | Yes |
| Hot Swappable | Yes |
| Output Voltage | 100V AC, 110V AC, 115V AC, 127V AC |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 6 x NEMA 5-15R |
| Dataline Protection | RJ-11, RJ-45 |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Backup/Run Time (Full Load) | 4.8min |
| Backup/Run Time (Half Load) | 14min |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| DC System Voltage | 24 |
| Replaceable Battery | Yes |
| Battery Recharge Time | 3hr |
| Battery Characteristics | VRLA |
| Maximum Storage Relative Humidity | 0.96 |
| Certifications | |
| Energy Star | Yes |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Maximum Operating Elevation | 10000' |
| Maximum Storage Temperature | 104°F |
| Minimum Storage Temperature | 5°F |
| Maximum Operating Temperature | 104°F |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp |
| Network Management | HTTP Remote Monitoring, SNMP |
| Physical Characteristics | |
| Depth | 12.5" |
| Width | 17.5" |
| Height | 3.5" |
| Form Factor | Rack Mount |
| Power Description | |
| Input Voltage | 120V AC |
| Waveform Type | Pure Sine Wave |
| Plug/Connector Type | NEMA 5-15P |
| Surge Energy Rating | 570J |
| Product Information | |
| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
