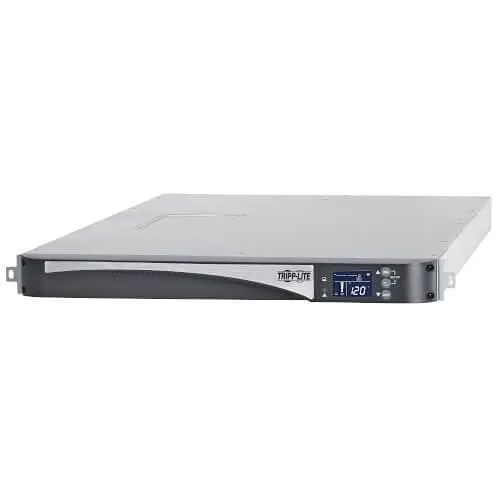

Eaton Tripp Lite SU1500LCD1U 120V 1440VA 1440W Double-Conversion Smart Online UPS, 5-Outlet, Card Slot, LCD, USB, DB9, 1U Rack
Image of 6
Key Features
- Continuous double-conversion online topology delivers pure sine wave power to prevent server and surveillance equipment damage
- Rack‑space saving 1U design with 5 protected outlets keeps critical network and security gear running in tight closets and server rooms

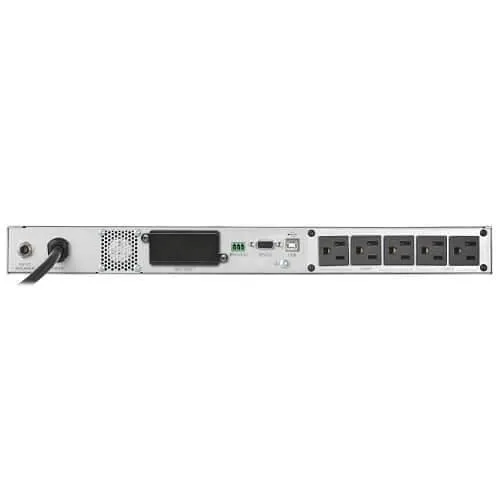

- Expandable battery runtime and remote management options (USB, DB9, card slot) minimize downtime and enable 24/7 monitoring
- ENERGY STAR‑certified economy mode reduces operating costs while maintaining clean, reliable power

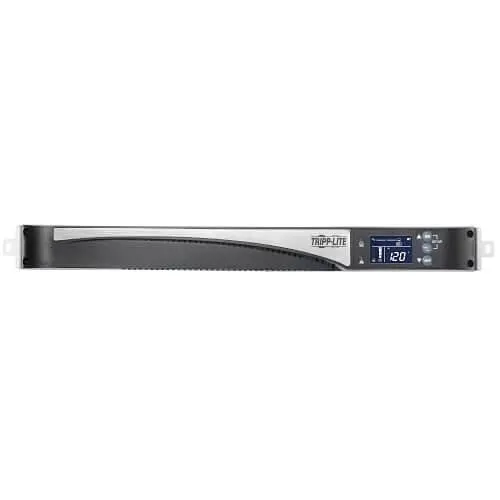

- Intuitive front-panel LCD and individually controllable load banks provide easy status visibility and granular outlet control for maintenance and fault isolation
Quick Specifications
- Product Model
- SU1500LCD1U
- Brand Name
- Eaton Tripp Lite
- Manufacturer Part Number
- SU1500LCD1U
Explore the details
Product information
SU1500LCD1U
Overview
Protect critical servers, network switches and surveillance systems with the Eaton Tripp Lite SU1500LCD1U, a true online double-conversion UPS engineered for always-on reliability. Delivering 1440VA / 1440W of pure sine wave power at 120V in a space-saving 1U rack, this UPS eliminates transfer time and conditions incoming power to prevent data loss, equipment failure and downtime. The SU1500LCD1U includes an intuitive LCD, five protected outlets and a card slot for optional SNMP/web management, enabling proactive monitoring of power, temperature and load — essential for security, surveillance and IT environments. ENERGY STAR certified economy mode lowers energy costs during stable utility conditions while expandable battery packs extend runtime through extended outages. Integrated USB and DB9 ports support automated shutdowns and integration with server monitoring software, and individually controllable load banks let you reboot specific devices without affecting the entire rack. Ideal for network closets, branch servers, DVR/NVR surveillance systems and edge data centers — add the Eaton Tripp Lite SU1500LCD1U to your infrastructure to maintain uptime and protect critical assets. Order today or contact us for runtime configuration guidance.
Features
- Continuous double-conversion online topology delivers pure sine wave power to prevent server and surveillance equipment damage
- Rack‑space saving 1U design with 5 protected outlets keeps critical network and security gear running in tight closets and server rooms
- Expandable battery runtime and remote management options (USB, DB9, card slot) minimize downtime and enable 24/7 monitoring
- ENERGY STAR‑certified economy mode reduces operating costs while maintaining clean, reliable power
- Intuitive front-panel LCD and individually controllable load banks provide easy status visibility and granular outlet control for maintenance and fault isolation
| General Information | |
|---|---|
| Brand Name | Eaton Tripp Lite |
| Manufacturer Part Number | SU1500LCD1U |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F |
| Physical Characteristics | |
| Depth | 27.95" |
| Width | 17.32" |
| Height | 1.73" |
| Rack Height | 1U |
| Power Description | |
| Input Voltage | 100, 120, 127V AC |
| Product Information | |
| Mount Type | Rack Mount |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |

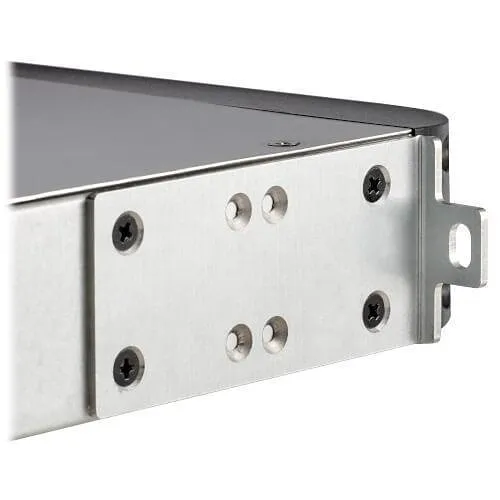

| Package Contents | Owner's manual, Rack-mounting hardware, RS-232 cable, SU1500LCD1U SmartOnline Double-Conversion UPS, USB cable |
| Environmental Certification | CSA (Canada), ENERGY STAR, FCC Class A, NOM (Mexico), RoHS, UL 1778 (TUV) |
