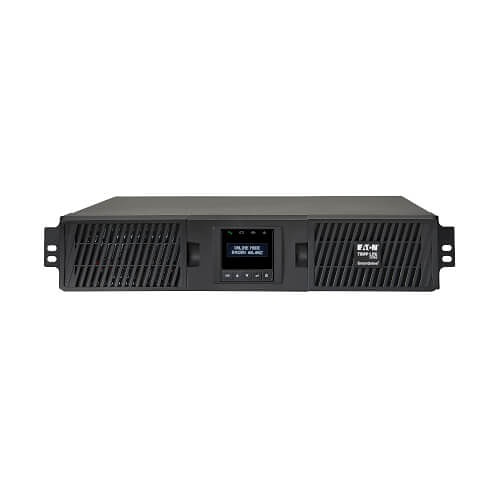

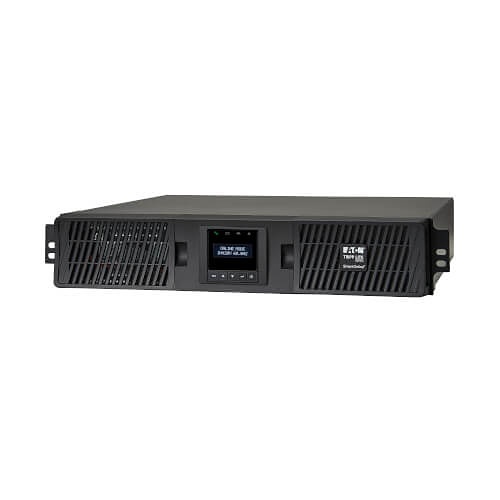

Eaton Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial
Image of 10
Key Features
- Continuous, precisely regulated power to protect servers, security and surveillance equipment from brownouts, spikes and outages
- Double-conversion online topology with zero transfer time for uninterrupted operation of mission-critical monitoring and networking systems

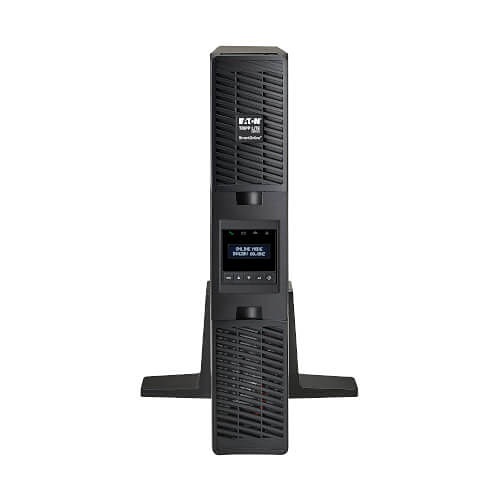

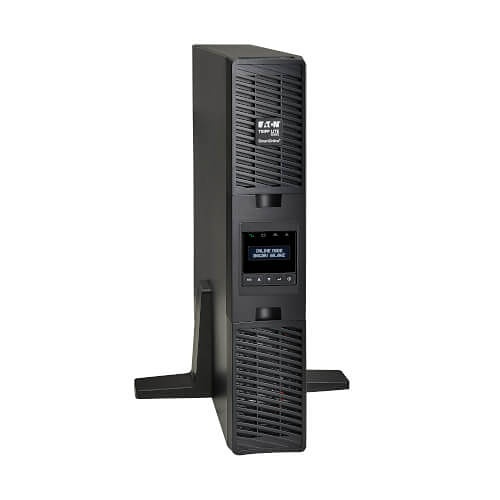

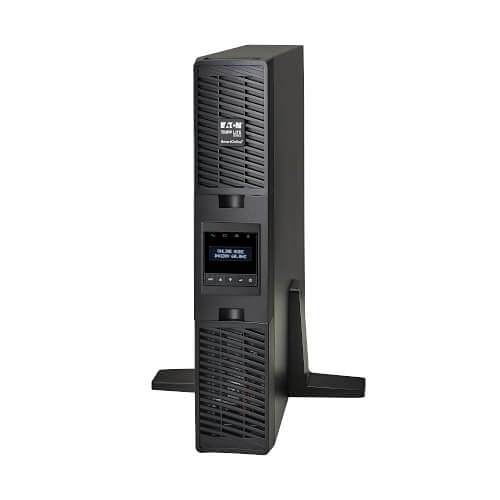

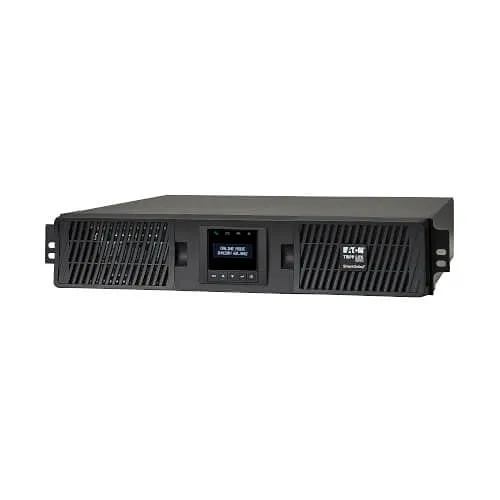

- Compact 2U rack/tower design with rotating LCD and user-friendly controls for easy installation and local diagnostics
- Hot-swappable battery modules and optional extended-run packs for non-stop operation and simplified maintenance
- USB, DB9 serial and network-card options for SNMP remote monitoring, graceful shutdown and integration with security management tools
- Energy-saving ECO mode reduces heat and operating costs while maintaining dependable protection
Quick Specifications
- Sector
- Data Comm & Networking
- Brand Name
- Eaton Tripp Lite
- Manufacturer
- Eaton
- Product Line
- SmartOnline
Frequently Bought Together
Eaton Tripp Lite SU750RTXLCD2U Smartonline 120V 750VA 675W Double-Conversion UPS, 2U Rack/tower, Extended Run, Network Card Options, LCD display, USB, DB9 Serial
$1,097.52
7 items selected
Total: $3,540.35
Product Information Tabs
Overview
Protect critical servers, network devices and security/surveillance systems with the Eaton Tripp Lite SU750RTXLCD2U double-conversion online UPS. This SmartOnline UPS delivers clean, fully regulated sine-wave power (750VA / 675W) with zero transfer time, keeping monitoring, recording and networking equipment running through brownouts, overvoltages and outages. The 2U rack/tower form factor and rotating LCD make it easy to mount in a rack or deploy as a tower while delivering on-site diagnostics and intuitive status reporting.
Designed for IT and physical security environments, the SU750RTXLCD2U supports hot-swappable internal batteries and optional external battery packs for extended runtime (up to ~13.9 minutes at half load), minimizing downtime and simplifying service. Connectivity includes HID-compliant USB, DB9 serial and a slot for network management cards to enable SNMP monitoring, remote shutdown and integration with security management platforms. Energy-saving ECO mode lowers operating costs and heat in data centers and network closets.
Ideal for small server rooms, security DVR/NVR installations and critical network closets, this Eaton Tripp Lite UPS provides dependable power protection and management—contact your reseller or add it to your rack to safeguard your systems today.
Features
- Continuous, precisely regulated power to protect servers, security and surveillance equipment from brownouts, spikes and outages
- Double-conversion online topology with zero transfer time for uninterrupted operation of mission-critical monitoring and networking systems
- Compact 2U rack/tower design with rotating LCD and user-friendly controls for easy installation and local diagnostics
- Hot-swappable battery modules and optional extended-run packs for non-stop operation and simplified maintenance
- USB, DB9 serial and network-card options for SNMP remote monitoring, graceful shutdown and integration with security management tools
- Energy-saving ECO mode reduces heat and operating costs while maintaining dependable protection
| General Information | |
|---|---|
| Sector | Data Comm & Networking |
| Brand Name | Eaton Tripp Lite |
| Manufacturer | Eaton |
| Product Line | SmartOnline |
| Product Name | SU750RTXLCD2U UPS System |
| Product Type | Double Conversion Online UPS |
| Product Model | SU750RTXLCD2U |
| Packaged Quantity | 1 |
| Manufacturer Part Number | SU750RTXLCD2U |
| Technical Information | |
| Phase | Single Phase |
| Energy Saving | Yes |
| Hot Swappable | Yes |
| Output Voltage | 110V AC, 120V AC, 127V AC |
| Receptacle Type | NEMA 5-15R |
| Application/Usage | Education, Government, Healthcare, Military, Mission Critical Equipment |
| Receptacle Detail | 6 x NEMA 5-15R |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Backup/Run Time (Full Load) | 4.3-Minute |
| Backup/Run Time (Half Load) | 13.9-Minute |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| DC System Voltage | 36 |
| Replaceable Battery | Yes |
| Battery Recharge Time | 3-Hour |
| Battery Characteristics | VRLA |
| Controls/Indicators | |
| Status Indicators | Yes |
| Environmental Conditions | |
| Sound Emission | 40 dB |
| Operating Humidity | 0-96% |
| Maximum Operating Elevation | 9842.52' |
| Maximum Operating Temperature | 104°F (40°C) |
| Interfaces/Ports | |
| Serial Port | Yes |
| Management | |
| Alarm | Low Battery, Overload, Power Failure, Remote Shutdown, UPS Fault, UPS StartUp |
| Network Management | SNMP Manageable |
| Physical Characteristics | |
| Depth | 12.5" |
| Width | 17.5" |
| Height | 3.5" |
| Weight | 27.60lb |
| Form Factor | Rack Mount, Tower |
| Rack Height | 2U |
| Power Description | |
| Input Voltage | 110V AC |
| Waveform Type | Sine Wave |
| Input Frequency | 60Hz |
| Output Frequency | 60Hz |
| Plug/Connector Type | NEMA 5-15P |
| Surge Energy Rating | 190 J |
| Product Information | |
| Mount Type | Rack Mount, Tower |
| Software | |
| Software Included | Yes |
| Warranty | |
| Limited Warranty | 2-Year |
| Additional Warranty Information | Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
