Luxul SW-505-16P-R 16 PoE+ 2 Combo RJ45/SFP Ports, 1 Gb L2/L3 Managed Switch, US Power Cord
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Deliver reliable power and connectivity to cameras, access points and VoIP phones with 16 PoE+ ports and a 185W centralized power budget.
- Simplify deployment and monitoring across sites with L2/L3 management, VLAN/QoS and the ability to manage up to 16 switches from a single pane.
- Protect AV and security streams with IGMP snooping, multicast control, Dante/AES67 compatibility and AV-over-IP support for low-latency audio/video distribution.
- Flexible uplinks and uplink aggregation via two combo RJ45/SFP 1Gb ports for fiber or copper redundancy and higher throughput.

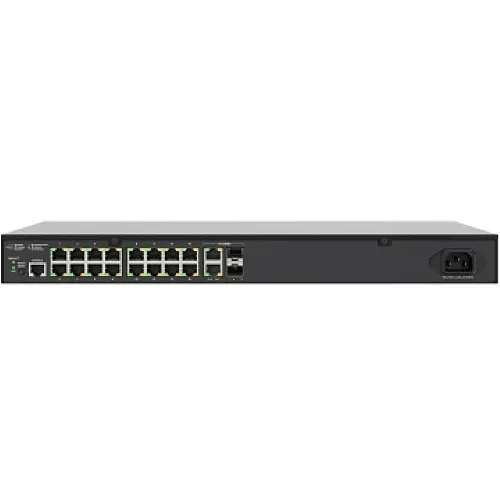

- Rack-friendly, rear-facing single-space design with variable-speed fans for quiet operation in equipment racks and control rooms.
- Enterprise procurement ready: TAA/NDAA compliance and remote monitoring support (ProWatch) for managed security and monitoring environments.
Quick Specifications
- Product Model
- SW-505-16P-R
- Brand Name
- Luxul by Legrand
- Product Line
- Pro 2
- Product Name
- 16-Port L2/L3 Managed Switch - PoE+ Gigabit Rear Facing Ports
Explore the details
Product information
SW-505-16P-R
Overview
Designed for pro AV integrators and security professionals, the Luxul by Legrand SW-505-16P-R managed switch brings resilient PoE+ delivery and advanced network control to surveillance, monitoring and AV-over-IP installations. This 1 Gb L2/L3 managed switch provides 16 PoE+ ports with a 185W power budget to reliably power IP cameras, wireless access points and VoIP devices while simplifying cable runs and power planning. Two combo RJ45/SFP 1 Gb uplinks offer fiber or copper flexibility and support link aggregation for increased uplink capacity and redundancy. With 36 Gbps switching capacity, VLAN, QoS (including DSCP), IGMP snooping and static routing, the SW-505-16P-R secures and prioritizes video and audio streams for low-latency Dante/AES67 and AV distribution. Features like PoE Self-Healing, scheduled power control and centralized management for up to 16 switches reduce onsite service calls and speed troubleshooting. Rack-mountable and built for quiet operation, this switch fits control rooms, equipment closets and distributed security deployments. Upgrade your surveillance, access control and Pro AV networks with the Luxul SW-505-16P-R — contact sales or add to your project to ensure dependable, manageable network power and performance.
Features
- Deliver reliable power and connectivity to cameras, access points and VoIP phones with 16 PoE+ ports and a 185W centralized power budget.
- Simplify deployment and monitoring across sites with L2/L3 management, VLAN/QoS and the ability to manage up to 16 switches from a single pane.
- Protect AV and security streams with IGMP snooping, multicast control, Dante/AES67 compatibility and AV-over-IP support for low-latency audio/video distribution.
- Flexible uplinks and uplink aggregation via two combo RJ45/SFP 1Gb ports for fiber or copper redundancy and higher throughput.
- Rack-friendly, rear-facing single-space design with variable-speed fans for quiet operation in equipment racks and control rooms.
- Enterprise procurement ready: TAA/NDAA compliance and remote monitoring support (ProWatch) for managed security and monitoring environments.
| General Information | |
|---|---|
| Brand Name | Luxul by Legrand |
| Manufacturer | Legrand Group |
| Product Line | Pro 2 |
| Product Name | 16-Port L2/L3 Managed Switch - PoE+ Gigabit Rear Facing Ports |
| Product Type | Ethernet Switch |
| Product Model | SW-505-16P-R |
| Product Series | SW |
| Manufacturer Part Number | SW-505-16P-R |
| Technical Information | |
| Network Switch Type | L2, Managed |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Certifications | |
| TAA Compliant | Yes |
| I/O Expansions | |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Number of Total Expansion Slots | 2 |
| Interfaces/Ports | |
| Modular | Yes |
| Network (RJ-45) | Yes |
| Total Number of Network Ports | 16 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| Network Technology | 1000Base-T, 1000Base-X |
| Network & Communication | |
| Layer Supported | 3 |
| Ethernet Technology | 10 Gigabit Ethernet |
| Others | |
| Model Number Replaces | AMS-1816P |
| Physical Characteristics | |
| Dimensions | 21 x 12 x 4" |
| Power Description | |
| Power Source | PoE+ |
| PoE (RJ-45) Port | Yes |
| Product Information | |
| Length | 17.4" |
| Miscellaneous | |
| Certifications | CB Report, CE, CE-EMC, CE-LVD, cUL, FCC, IC, NDAA 889, RCM, RoHS, TAA, UKCA, UL, VCCI |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- SW-505-16P-R
- Manufacturer part:
- SW-505-16P-R
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
