TP-Link SX6632YF Omada Campus 26-Port 10G Stackable L3 Managed Aggregation Switch with (6) 25G Slots
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 6
Key Features
- Future-proof uplinks with 6x 25G SFP28 and 26x 10G SFP+ ports to support high-bandwidth aggregation and demanding surveillance/monitoring traffic
- Carrier-grade performance (820 Gbps switching capacity) to consolidate core and aggregation layers for campus, ISP or data center edge deployments
- Built-in high availability via physical stacking, VRRP and dual field-replaceable power supplies to minimize downtime in critical security and network environments
- Advanced L3 routing (RIP, OSPF, ECMP, PIM-DM) and DHCP services to simplify complex network designs and improve application performance
- Robust security and access control (ACLs, 802.1X, Port Security, DoS defenses) to protect sensitive surveillance, monitoring and business systems
- Centralized management with Omada SDN plus standalone options (web, CLI, SNMP) for flexible deployment and simplified operations
Quick Specifications
- Product Model
- SX6632YF
- Brand Name
- TP-Link
- Product Line
- Omada
- Product Type
- Switch
Explore the details
Product information
SX6632YF
Overview

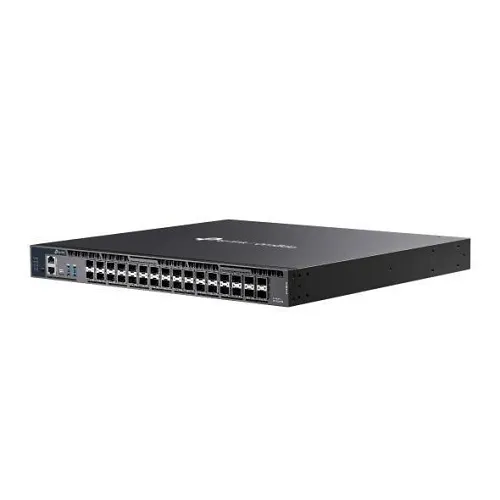

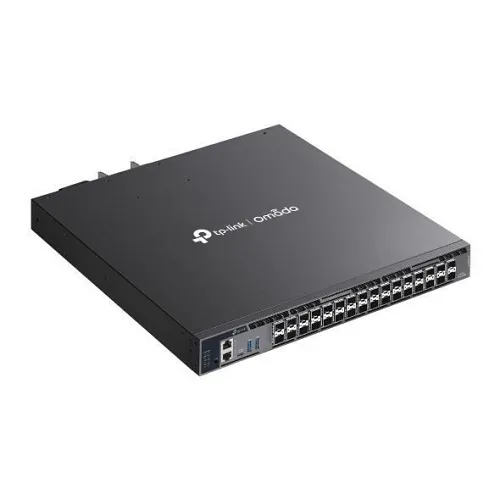

Built for high-density campus and aggregation environments, the TP-Link Omada SX6632YF switch delivers the throughput and resilience needed to support converged networking, security and surveillance systems. This L3 managed aggregation switch combines 6x 25G SFP28 uplinks and 26x 10G SFP+ fiber ports with an 820 Gbps switching capacity, providing the headroom to handle video monitoring, VoIP, wireless backhaul and heavy east-west traffic without bottlenecks. Built-in physical stacking and dual field-replaceable power supplies ensure uninterrupted operations for critical infrastructure, while comprehensive L3 routing (RIP, OSPF, ECMP, VRRP) simplifies routing in campus or ISP networks. Integrated security features—ACLs, 802.1X, port security and DoS protection—help safeguard access for surveillance cameras and monitoring systems. Administrators gain flexible control through Omada SDN for centralized cloud management or via web, CLI and SNMP for standalone deployments. Ideal for SMBs, enterprises and service providers that require secure, high-performance aggregation for networking and security applications. Deploy the SX6632YF to modernize your campus backbone, ISP aggregation or video surveillance network—contact sales or add to cart to get started.
Features
- Future-proof uplinks with 6x 25G SFP28 and 26x 10G SFP+ ports to support high-bandwidth aggregation and demanding surveillance/monitoring traffic
- Carrier-grade performance (820 Gbps switching capacity) to consolidate core and aggregation layers for campus, ISP or data center edge deployments

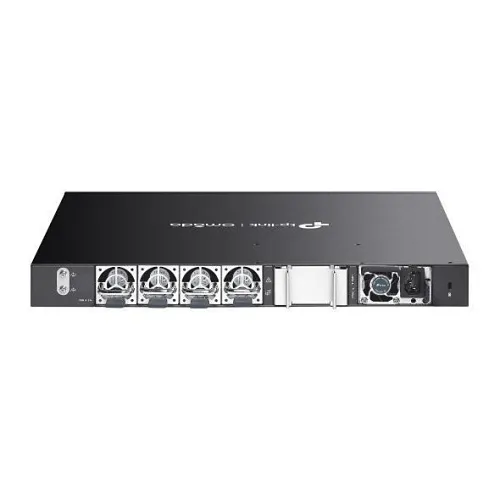

- Built-in high availability via physical stacking, VRRP and dual field-replaceable power supplies to minimize downtime in critical security and network environments
- Advanced L3 routing (RIP, OSPF, ECMP, PIM-DM) and DHCP services to simplify complex network designs and improve application performance
- Robust security and access control (ACLs, 802.1X, Port Security, DoS defenses) to protect sensitive surveillance, monitoring and business systems
- Centralized management with Omada SDN plus standalone options (web, CLI, SNMP) for flexible deployment and simplified operations
| General Information | |
|---|---|
| Brand Name | TP-Link |
| Product Line | Omada |
| Product Type | Switch |
| Manufacturer Part Number | SX6632YF |
| Technical Information | |
| Material | Metal |
| Power Consumption | 86.7W |
| Network Switch Type | L2, L3, Managed |
| Certifications | |
| TAA Compliant | No |
| Physical Characteristics | |
| Color | Black |
| Depth | 15" |
| Width | 17.3" |
| Height | 1.7" |
| Power Description | |
| Power Source | AC |
| Input Voltage | 100-240V AC |
| Product Information | |
| Mount Type | Rack Mount |
| Miscellaneous | |

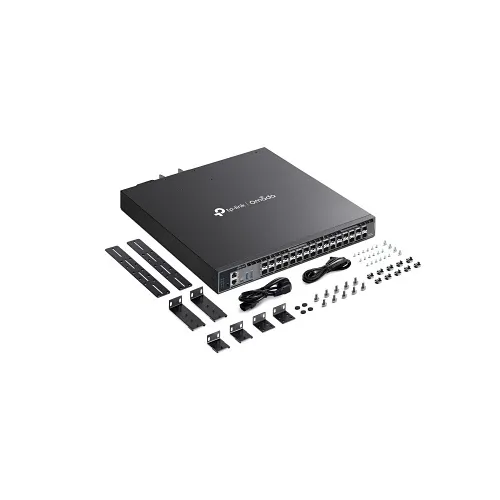

| Package Contents | Power cord, Quick Installation Guide, Rackmount Kit, Rubber Feet, SX6632YF Switch |
