Altronix T2KK38D 8-Door Altronix / Keyscan Access and Power Integration Kit, Trove2KA2 with AL600ULXB, ACM8CB, T16100
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 2
Key Features
- Simplifies installation and reduces labor with a pre-configured Trove enclosure and Keyscan/Altronix backplane for up to 8 doors
- Centralized, reliable power: integrated 24VDC/6A power supply/charger plus 12V and 24V outputs for locks, readers and peripherals
- Built‑in battery backup and supervision (AC fail, battery fail, presence) to maintain access control and monitoring during outages
- Optimized wire management with a 16 AWG galvanized steel backplane and multiple conduit knockouts to speed deployments
- Scales for enterprise access control: supports common Keyscan boards and accommodates up to four 12V/12AH batteries
- NDAA compliant and RoHS certified for secure, environmentally responsible installations
Quick Specifications
- Product Model
- T2KK38D
- Brand Name
- Altronix
- Product Line
- Trove
- Product Name
- 8-Door Altronix/Keyscan Access and Power Integration Kit
Frequently Bought Together
Altronix T2KK38D 8-Door Altronix / Keyscan Access and Power Integration Kit, Trove2KA2 with AL600ULXB, ACM8CB, T16100
$787.63
10 items selected
Total: $1,732.66
Explore the details
Product information
T2KK38D
Overview

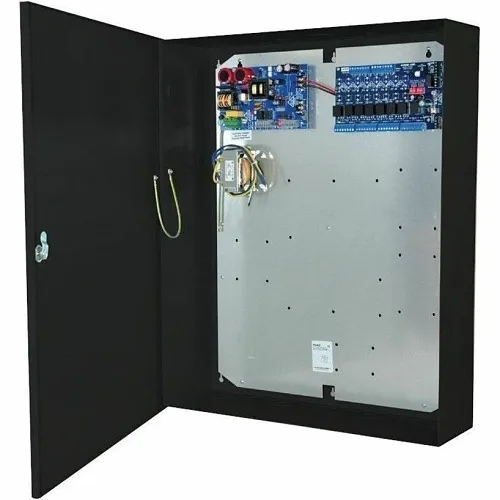

The Altronix T2KK38D 8-Door Access and Power Integration Kit delivers a turnkey solution for commercial access control and security monitoring deployments. Designed for installers and systems integrators, this Altronix access power controller kit combines a Trove2 enclosure, TKA2 Keyscan/Altronix backplane, AL600ULXB 24VDC/6A power supply/charger, ACM8CB PTC controller and T16100 transformer to provide streamlined power and board integration. With support for up to eight doors and both 12V DC and 24V DC outputs, the kit centralizes lock power, readers and auxiliary devices while reducing field labor and wiring complexity. Supervision features include AC fail, battery fail and battery presence status, and the enclosure accepts up to four 12V/12AH batteries for robust backup. Conduit knockouts and a 16 AWG galvanized backplane improve wiring organization and speed installation on commercial projects. NDAA compliant and RoHS certified, the T2KK38D is suited for secure government, education, healthcare and enterprise surveillance applications. Equip your next access control deployment with a proven integration kit—contact us for pricing and installation guidance.
Features
- Simplifies installation and reduces labor with a pre-configured Trove enclosure and Keyscan/Altronix backplane for up to 8 doors
- Centralized, reliable power: integrated 24VDC/6A power supply/charger plus 12V and 24V outputs for locks, readers and peripherals
- Built‑in battery backup and supervision (AC fail, battery fail, presence) to maintain access control and monitoring during outages
- Optimized wire management with a 16 AWG galvanized steel backplane and multiple conduit knockouts to speed deployments
- Scales for enterprise access control: supports common Keyscan boards and accommodates up to four 12V/12AH batteries
- NDAA compliant and RoHS certified for secure, environmentally responsible installations
| General Information | |
|---|---|
| Brand Name | Altronix |
| Manufacturer | Altronix Corporation |
| Product Line | Trove |
| Product Name | 8-Door Altronix/Keyscan Access and Power Integration Kit |
| Product Type | Access/Power Integration Kit |
| Product Model | T2KK38D |
| Product Series | 2 |
| Manufacturer Part Number | T2KK38D |
| Technical Information | |
| Output Voltage | 12V DC, 24V DC |
| Number of Doors | 8 |
| Certifications | |
| NDAA Compliant | Yes |
| Environmental Conditions | |
| Storage Temperature (T-T) | -4-158°F |
| Operating Temperature (T-T) | 32-120°F |
| Physical Characteristics | |
| Depth | 6.5" |
| Width | 21.5" |
| Height | 27.25" |
| Weight | 9lb |
| Power Description | |
| Input Voltage | 120V AC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
