Telguard TG-7FM 5G LTE-M Sole Path Communicator for Commercial Fire
Image of 4
Key Features
- Deliver continuous, AHJ‑compliant sole‑path cellular alarm communications across AT&T, T‑Mobile and Verizon
- Reduce installation time and cost by using panel‑powered 12/24V operation—no AC outlet or landline required
- Automatic multi‑carrier selection and failover for reliable monitoring and fewer service dispatches
- LTE‑M technology improves building penetration and lowers power consumption for better on‑site performance
- Universal dial‑capture compatibility (Contact ID, SIA, DMP, etc.) simplifies integration with existing fire panels
- UL‑listed (UL 2610 / UL 864) and Link Supervision at 5‑ or 60‑minute intervals to meet AHJ requirements
Quick Specifications
- Product Model
- TG-7FM
- Brand Name
- Telguard
- Product Line
- Telguard Commercial Fire
- Product Type
- Multi-carrier
Frequently Bought Together
Telguard TG-7FM 5G LTE-M Sole Path Communicator for Commercial Fire
$358.74
11 items selected
Total: $2,789.55
Product Information Tabs
Overview

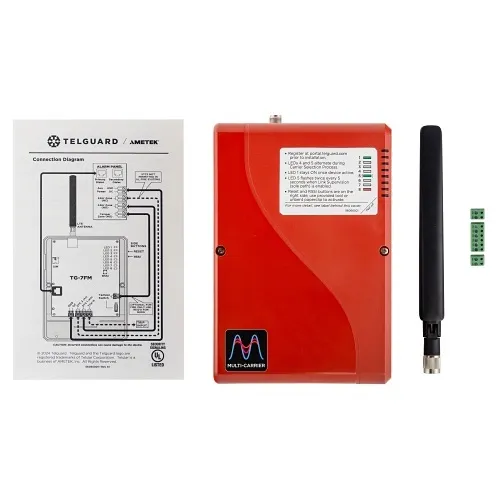

Deliver uninterrupted, AHJ‑compliant alarm communications for commercial fire systems with the Telguard TG-7FM 5G LTE-M Sole Path Communicator. Designed specifically for panel‑powered sole‑path applications, the TG‑7FM provides multi‑carrier 5G LTE‑M connectivity across AT&T, T‑Mobile and Verizon, automatically selecting the best network and failing over when needed to maintain continuous monitoring. By operating on 12/24V panel power it removes the need for separate AC power or costly phone lines—reducing installation time and total cost of ownership.

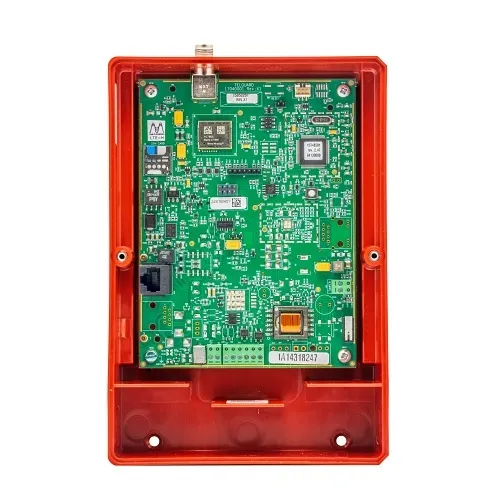

Built for universal compatibility, the TG‑7FM supports Contact ID, SIA and other dial‑capture formats to integrate with virtually any DACT‑enabled fire panel. LTE‑M improves building penetration and reduces power draw, while Link Supervision at 5‑ or 60‑minute intervals helps satisfy AHJ and UL (UL 2610 / UL 864) requirements for sole‑path signaling. Diagnostic LEDs simplify onsite troubleshooting and speed service response.
Ideal for security integrators, monitoring centers and facility managers who require resilient surveillance and alarm communications, the Telguard TG‑7FM streamlines compliance and minimizes false alarms and service calls. Specify the TG‑7FM for your next commercial fire installation or contact us to add dependable cellular monitoring to your systems.
Features
- Deliver continuous, AHJ‑compliant sole‑path cellular alarm communications across AT&T, T‑Mobile and Verizon
- Reduce installation time and cost by using panel‑powered 12/24V operation—no AC outlet or landline required
- Automatic multi‑carrier selection and failover for reliable monitoring and fewer service dispatches
- LTE‑M technology improves building penetration and lowers power consumption for better on‑site performance
- Universal dial‑capture compatibility (Contact ID, SIA, DMP, etc.) simplifies integration with existing fire panels
- UL‑listed (UL 2610 / UL 864) and Link Supervision at 5‑ or 60‑minute intervals to meet AHJ requirements
| General Information | |
|---|---|
| Brand Name | Telguard |
| Product Line | Telguard Commercial Fire |
| Product Type | Multi-carrier |
| Product Model | TG-7FM |
| Product Series | TG-7 Fire |
| Manufacturer Part Number | TG-7FM |
| Miscellaneous | |
| Features | Connects to panel DACT (dialer) replacing expensive landlines, Operates on 12/24 volt panel power with no AC outlet needed, Selects primary and backup carriers automatically based on performance analysis |
| Environmentally Friendly | Yes |
| Environmental Certification | UL |
