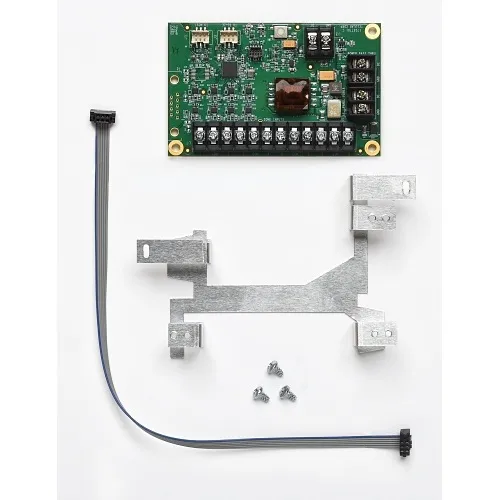

Telguard TG-PEM Zone Expansion Module (8 inputs) Accessory for the TG-7 Commercial Series

Add scalable zone capacity and DACT-free fire reporting to your commercial alarm installation with the Telguard TG-PEM Zone Expansion Module. This Telguard accessory provides eight highly configurable inputs (expandable to 16 with two modules) so integrators can quickly add intrusion or supervised fire inputs without replacing existing panels. The TG-PEM is engineered to connect panel relay outputs directly to the Telguard fire communicator, delivering essential fire, trouble and supervisory signals to your central station even when a DACT is not present. Supporting 12V or 24V DC power and designed to fit any TG-7 Series metal enclosure, the module simplifies deployment across varied site architectures. Installers benefit from dealer-portal configuration, on-board LED status indicators, and included mounting hardware to reduce install time and service calls. UL 864 / UL 1610 and ULC S304 / S559 listings ensure compliance with commercial monitoring requirements in the U.S. and Canada. Ideal for security integrators, monitoring centers, and facility managers who need reliable expansion for security, surveillance and monitoring systems—add the TG-PEM to your TG-7 installation today.

• Adds 8 configurable zones to TG-7 systems (expandable to 16 with two TG-PEMs) to support additional intrusion and fire points
• Enables Central Station reporting from panel relay outputs when no DACT is available for reliable fire, trouble, and supervisory signals
• Simple configuration through the Telguard dealer portal plus LED status indicators to speed commissioning and troubleshooting
• UL-listed for U.S. and Canada (UL 864, UL 1610, ULC S304, ULC S559) to meet commercial monitoring standards

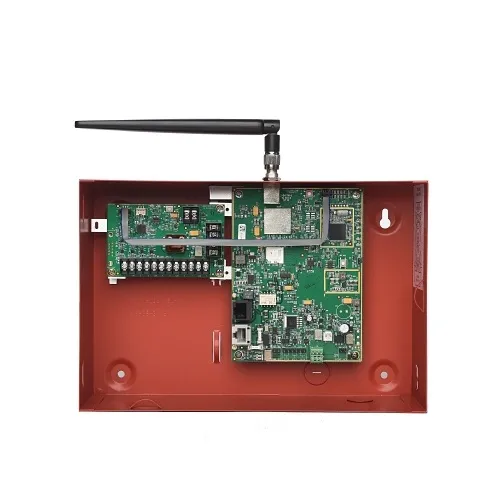

• Compatible with any TG-7 Series metal enclosure and supports 12V or 24V DC power for flexible installation
• Includes installation hardware for faster on-site setup and seamless integration with security and surveillance systems
