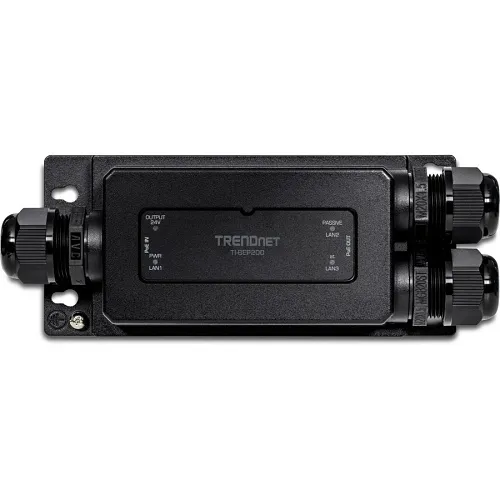

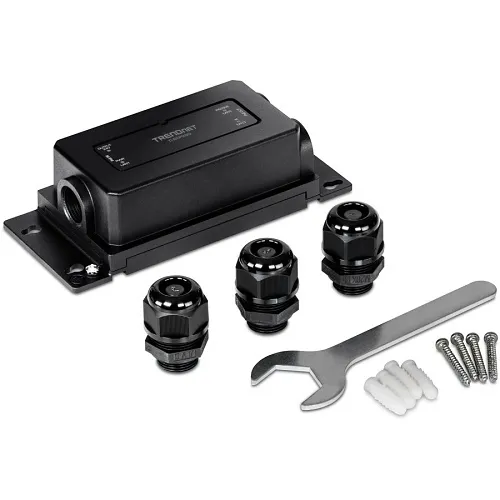

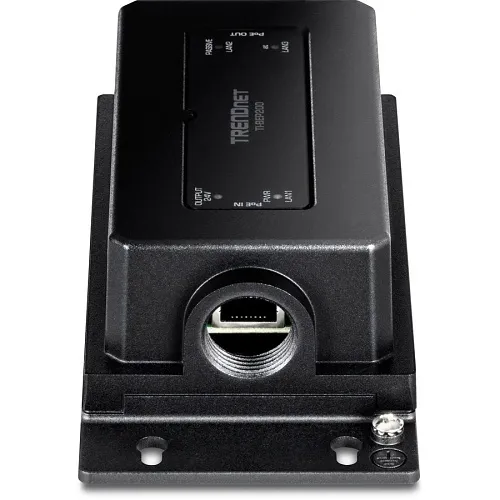

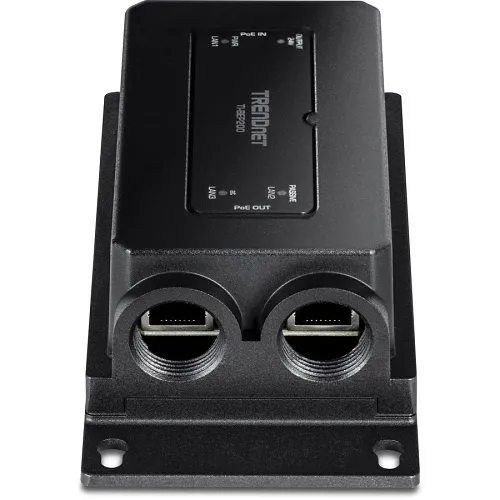

TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender
Image of 5
Key Features
- Extend a single PoE++ feed to power two devices up to 200 m (656 ft.) from the source — daisy-chain up to 4 units for networks up to 500 m (1,640 ft.)
- Rugged IP67 weatherproof housing and -40° to 75° C operating range for reliable outdoor security and surveillance deployments
- Auto-detects PoE (15.4W), PoE+ (30W) and PoE++/Passive (24–48V) devices so you can power mixed equipment without extra adapters
- 60W PoE budget with gigabit throughput preserves network performance for cameras, access control, and monitoring systems
- Built-in 4 kV surge protection and wall-mount form factor reduce downtime and simplify installation in critical outdoor installations
Quick Specifications
- Product Model
- TI-BEP200
- Brand Name
- TRENDnet
- Product Name
- 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender
- Product Type
- PoE++ Extender
Explore the details
Product information
TI-BEP200
Overview
Extend and protect outdoor networked devices with the TRENDnet TI-BEP200 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender. Designed for security, surveillance, and remote monitoring applications, this PoE++ extender converts a single high-power PoE feed into two powered gigabit outputs and lengthens reach by an extra 100 m (328 ft.) — delivering up to 200 m (656 ft.) from the PoE source. Daisy-chain up to four units for a total extension of 500 m (1,640 ft.) to cover expansive sites.
The TI-BEP200 automatically detects PoE, PoE+ and PoE++/passive devices, supports a 60W PoE budget, and maintains gigabit performance for IP cameras, access control, and networked sensors without needing a local power supply. Its IP67-rated enclosure, wide -40° to 75° C operating range and built-in 4 kV surge protection ensure dependable outdoor operation in harsh environments. TAA/NDAA compliance makes it suitable for government and enterprise projects.
Deploy the TRENDnet TI-BEP200 to simplify cabling and extend power/network reach for outdoor surveillance and monitoring systems — order now to secure wider coverage with durable PoE reliability.
Features
- Extend a single PoE++ feed to power two devices up to 200 m (656 ft.) from the source — daisy-chain up to 4 units for networks up to 500 m (1,640 ft.)
- Rugged IP67 weatherproof housing and -40° to 75° C operating range for reliable outdoor security and surveillance deployments
- Auto-detects PoE (15.4W), PoE+ (30W) and PoE++/Passive (24–48V) devices so you can power mixed equipment without extra adapters
- 60W PoE budget with gigabit throughput preserves network performance for cameras, access control, and monitoring systems
- Built-in 4 kV surge protection and wall-mount form factor reduce downtime and simplify installation in critical outdoor installations
| General Information | |
|---|---|
| Brand Name | TRENDnet |
| Manufacturer | TRENDnet |
| Product Name | 2-Port Industrial Outdoor Gigabit Active/Passive PoE+ Extender |
| Product Type | PoE++ Extender |
| Product Model | TI-BEP200 |
| Country of Origin | TW |
| Manufacturer Part Number | TI-BEP200 |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Certifications & Standards | Standards IEEE 802.3 IEEE 802.3u IEEE 802.3x IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEEE 802.3bt Certifications CE FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 (Shock) IEC 60068-2-32 (Free Fall) IEC 60068-2-6 (Vibration) |
| Interfaces/Ports | |
| Input Ports | 1 x Gigabit PoE++ |
| Output Ports | 1 x Gigabit PoE, 1 x Gigabit PoE+ |
| Physical Characteristics | |
| Color | Black |
| Depth | 2.90" |
| Width | 6.60" |
| Height | 1.70" |
| Form Factor | Wall Mount |
| Power Description | |
| PoE Budget | 60.0W |
| PoE (RJ-45) Port | Yes |
| Maximum Output Power | 30.00W |
| Maximum Output Voltage | 48.0V |
| Minimum Output Voltage | 24V |
| Product Information | |
| Mount Type | Wall Mount |
| Protection Type | Surge Protection |
| Warranty | |
| Limited Warranty | 3-Year |
